Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use the J 38778  in order to remove the retainers that retain the insulator to the hood.
  2. Remove the insulator from the hood.

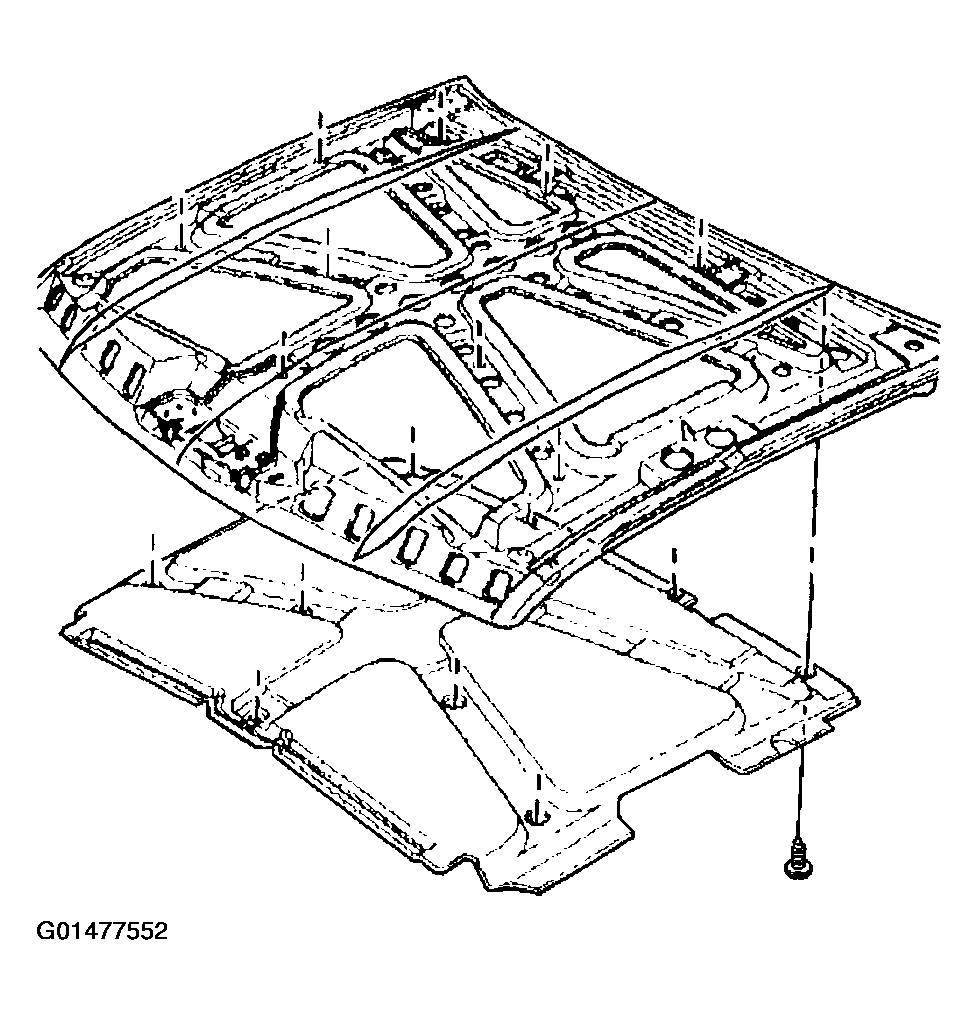

    Fig 1: Removing Insulator From Hood
    G01477552Courtesy of GENERAL MOTORS CORP.
