Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front hood bumper by turning the front hood bumper (1) out counterclockwise.
  2. Remove the side hood bumper by sliding the side hood bumper (2) rearward and pulling up.

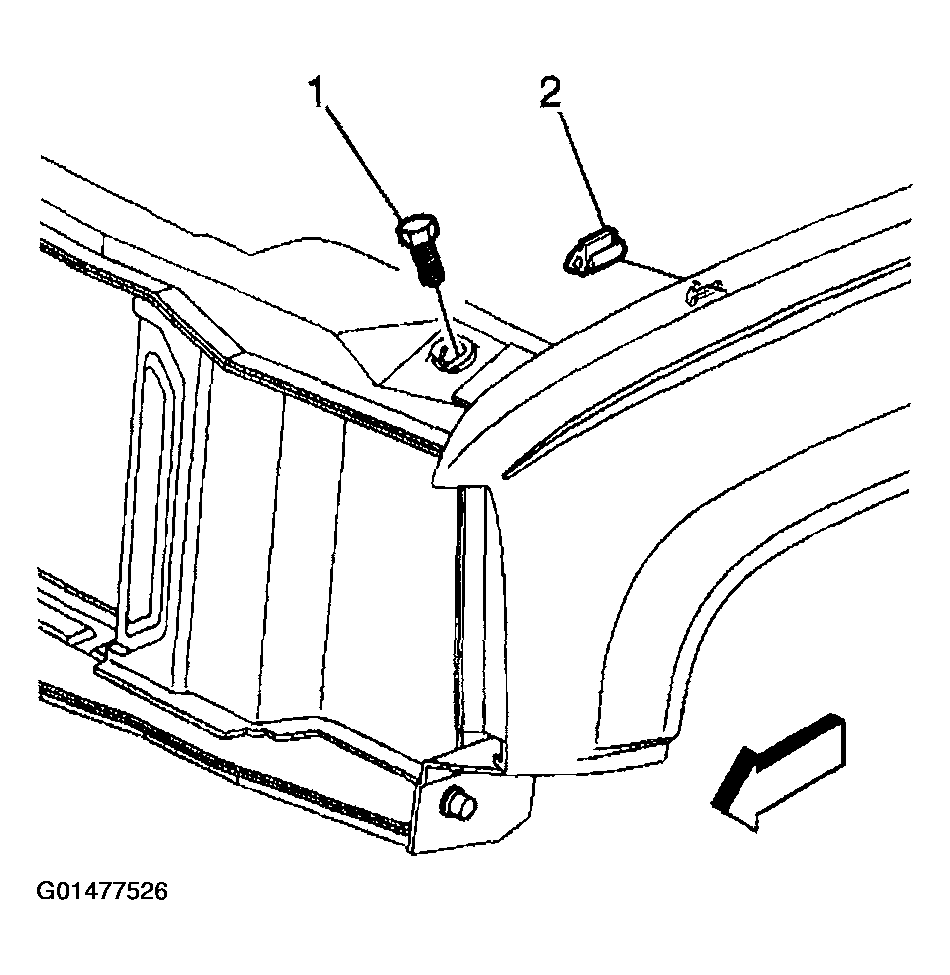

    Fig 1: Removing Side Hood Bumper By Sliding Side Hood Bumper
    G01477526Courtesy of GENERAL MOTORS CORP.
