Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the side hood bumper by pushing down and sliding the side hood bumper (2) forward.
  2. Install the front hood bumper (1) by turning the front hood bumper in clockwise until the hood closes flush with the fender.

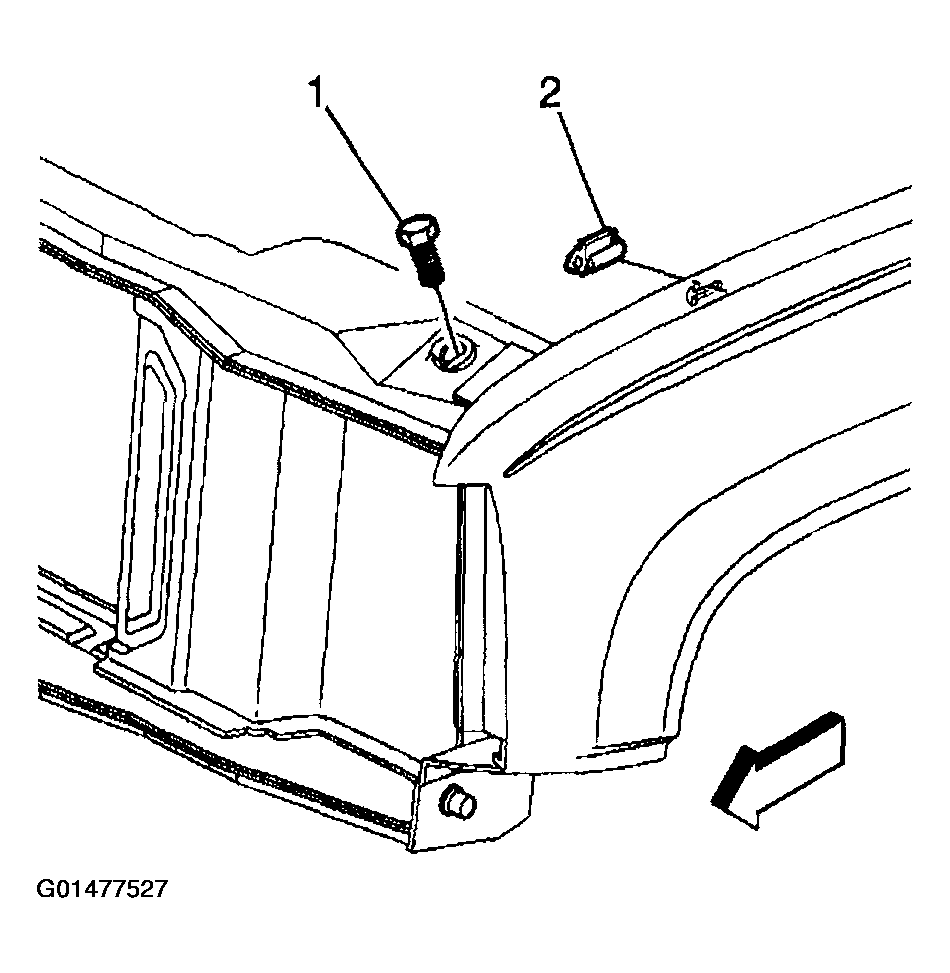

    Fig 1: Installing Side Hood Bumper By Sliding Side Hood Bumper
    G01477527Courtesy of GENERAL MOTORS CORP.
