Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Rotate the hood adjust front bumper counterclockwise.
  2. Remove the hood adjust front bumper.

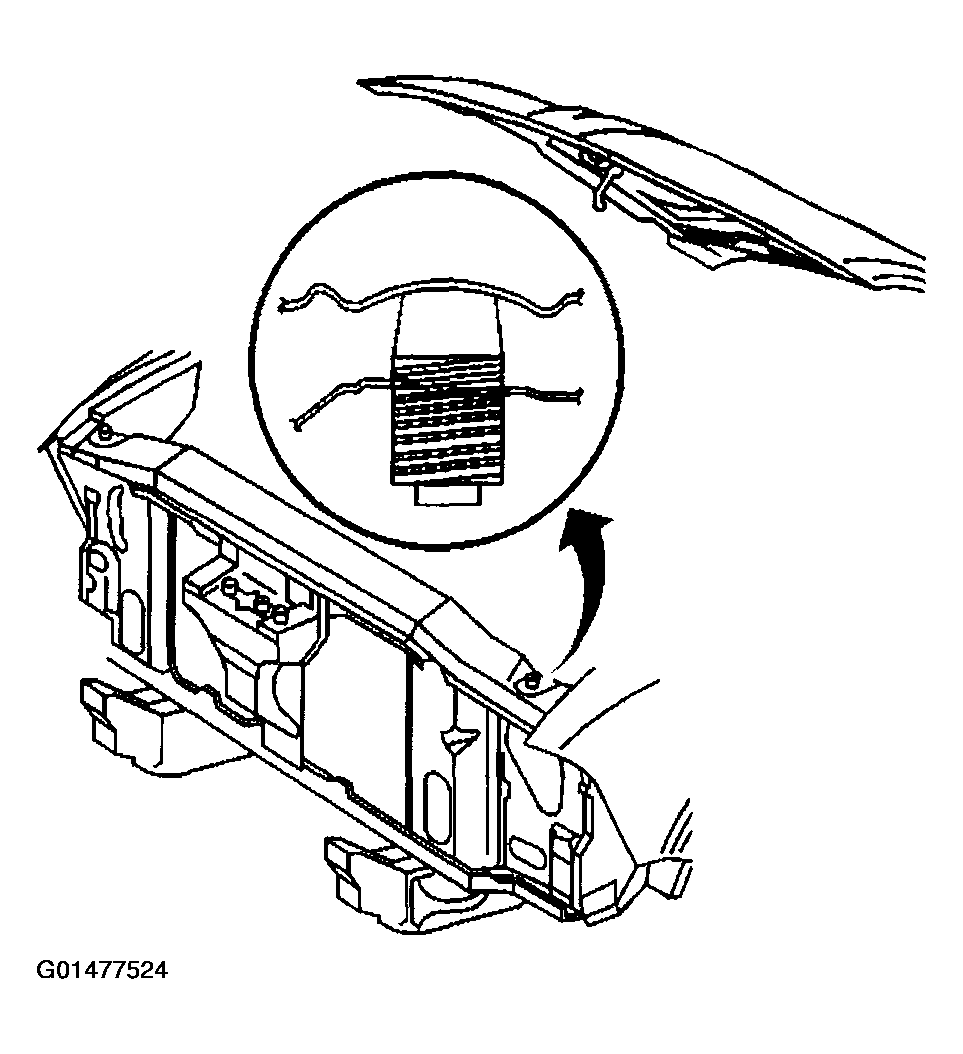

    Fig 1: Hood Adjust Front Bumper
    G01477524Courtesy of GENERAL MOTORS CORP.
