Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hood adjust front bumper.
  2. Rotate the hood adjust front bumper clockwise until the hood adjust front bumper is at the same height as measured before removal.
  3. Inspect the hood panel assembly alignment. The top of the hood should be flush with the fenders and parallel to the grille.
  4. Rotate the bumper clockwise or counterclockwise in order to align the hood.

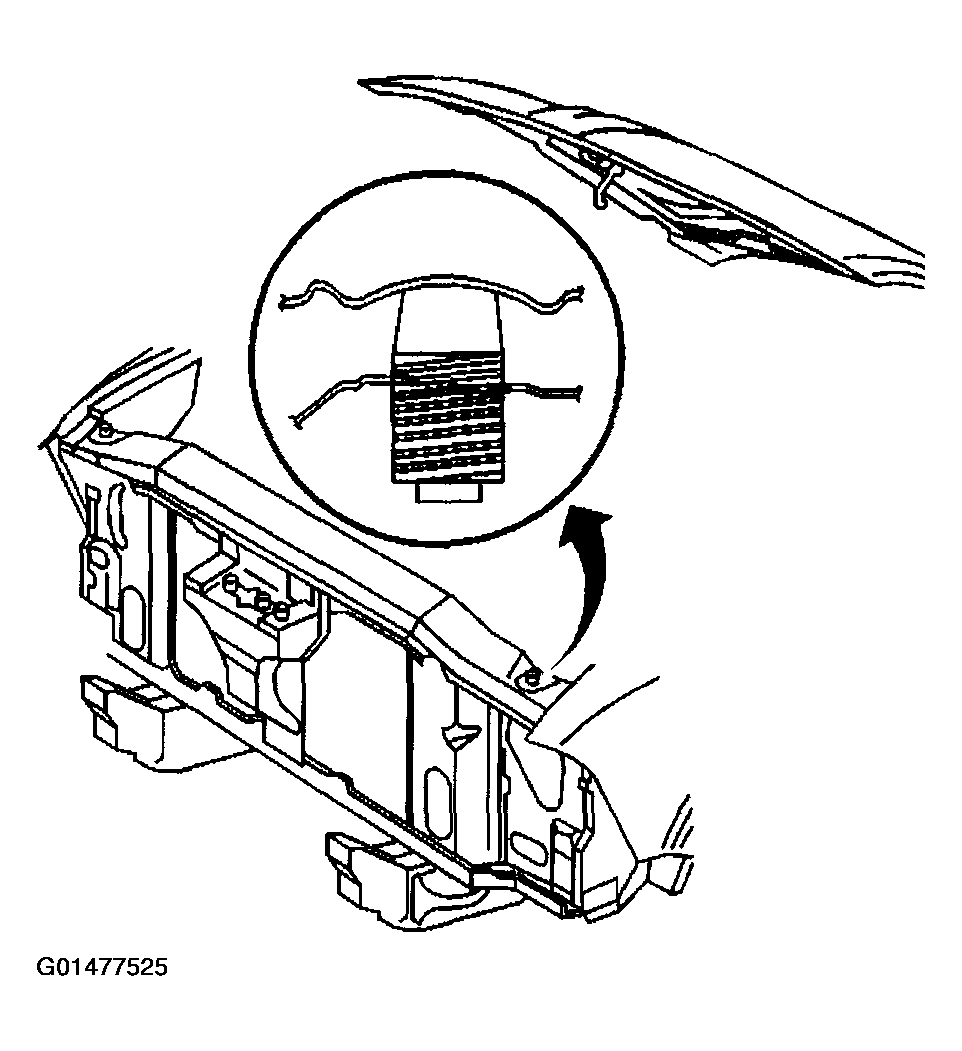

    Fig 1: Hood Adjust Front Bumper
    G01477525Courtesy of GENERAL MOTORS CORP.
