Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the radiator air intake baffle.
Install the radiator air intake baffle retainers.
Install the outside air temperature sensor. Refer to AMBIENT AIR TEMPERATURE GAGE SENSOR REPLACEMENT in Instrument Panel, Gages, and Console.
Install the radiator grille. Refer to GRILLE REPLACEMENT (GMC) or GRILLE REPLACEMENT (CHEVROLET) in Exterior Trim.

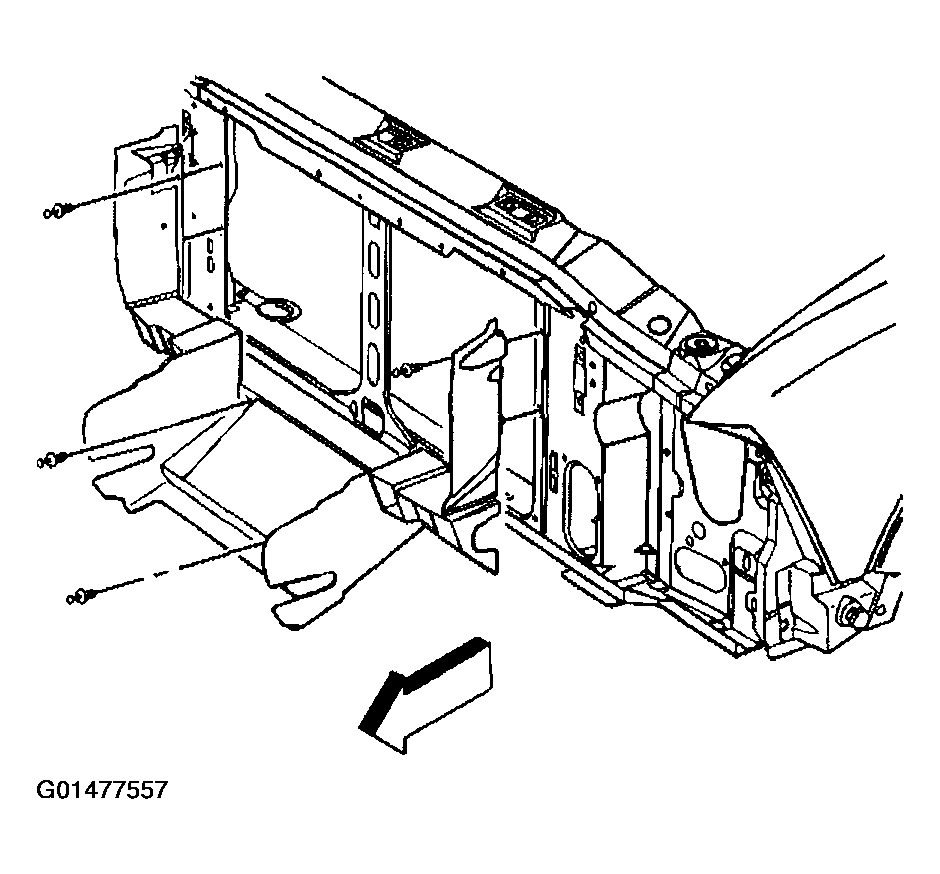

Fig 1: Radiator Air Intake Baffle
Courtesy of GENERAL MOTORS CORP.
