Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the hood.
  2. Remove the bolt from the right and the left vent grille end panels.
  3. Lift up on the right and the left vent grille end panels to release the retaining clips.
  4. Remove the right and the left vent grille end panels.

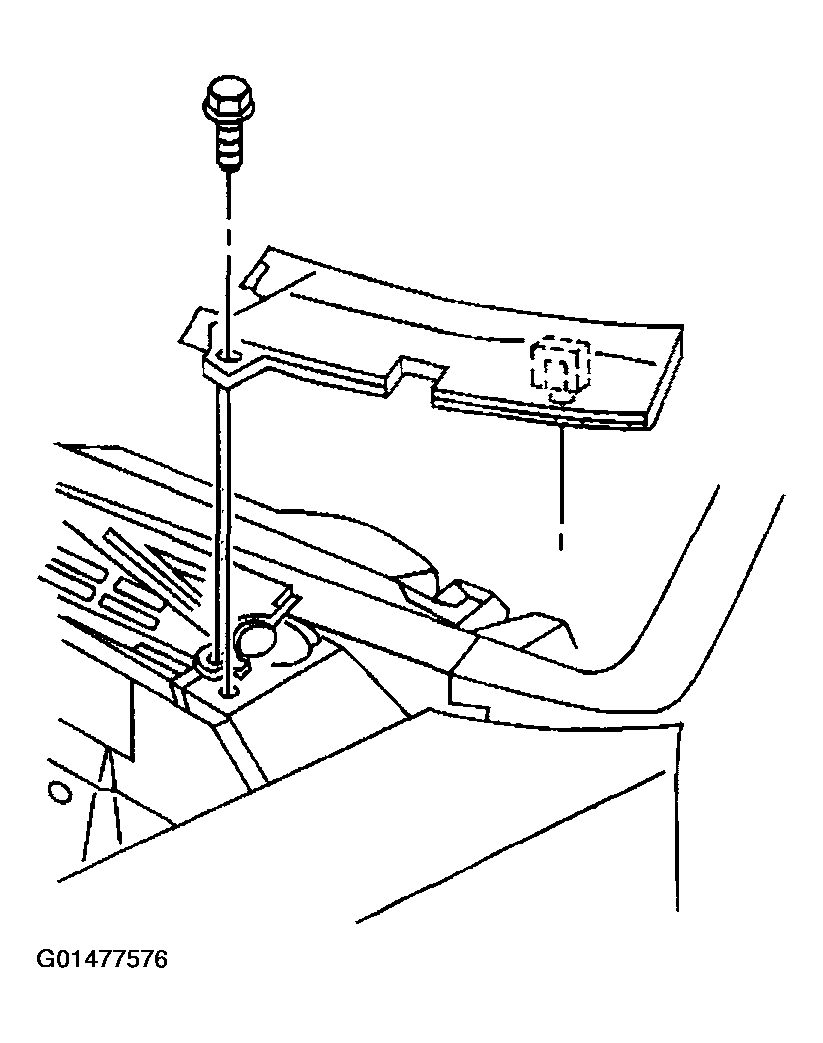

    Fig 1: Removing Bolt From Right & Left Vent Grille End Panels
    G01477576Courtesy of GENERAL MOTORS CORP.
  5. Remove the screws that secure the center vent grille panel to the cowl.
  6. Remove the push-pin retainers that secure the center vent grille panel to the cowl.

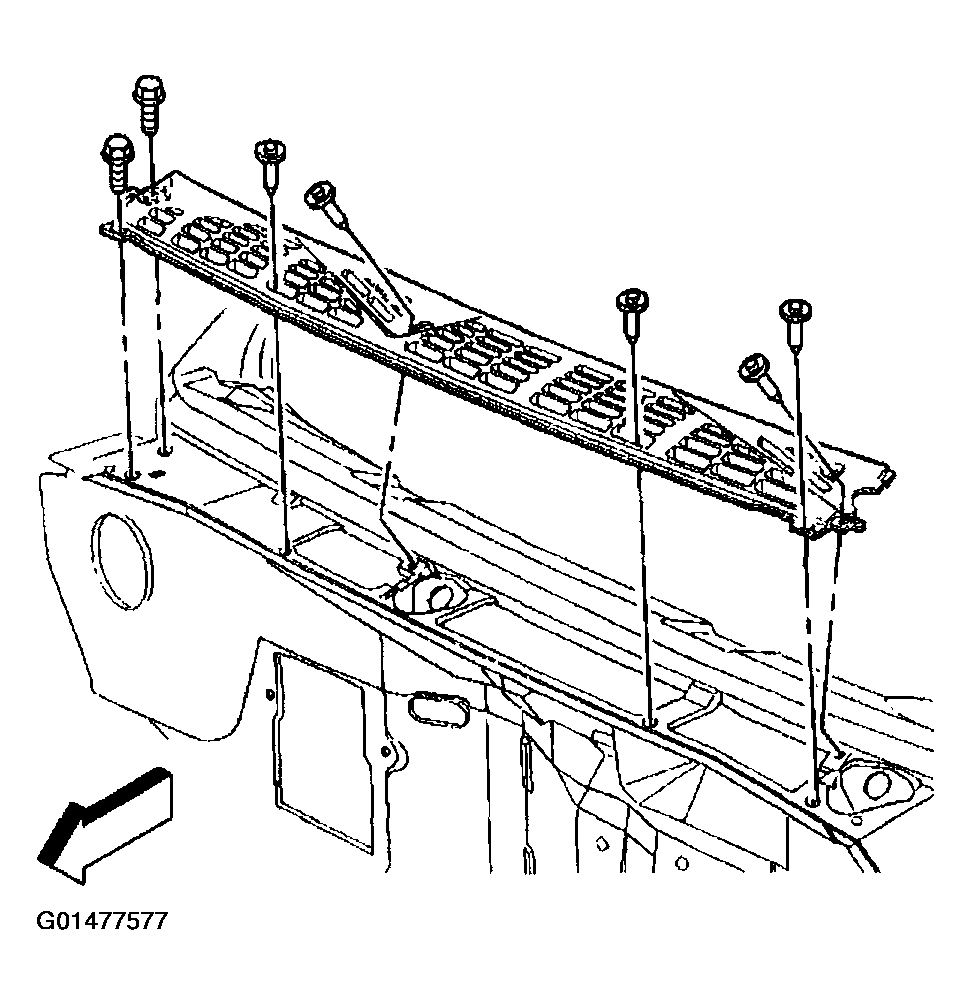

    Fig 2: Removing Screws Securing Center Vent Grille Panel To Cowl
    G01477577Courtesy of GENERAL MOTORS CORP.
  7. Remove the center vent grille panel from the cowl.

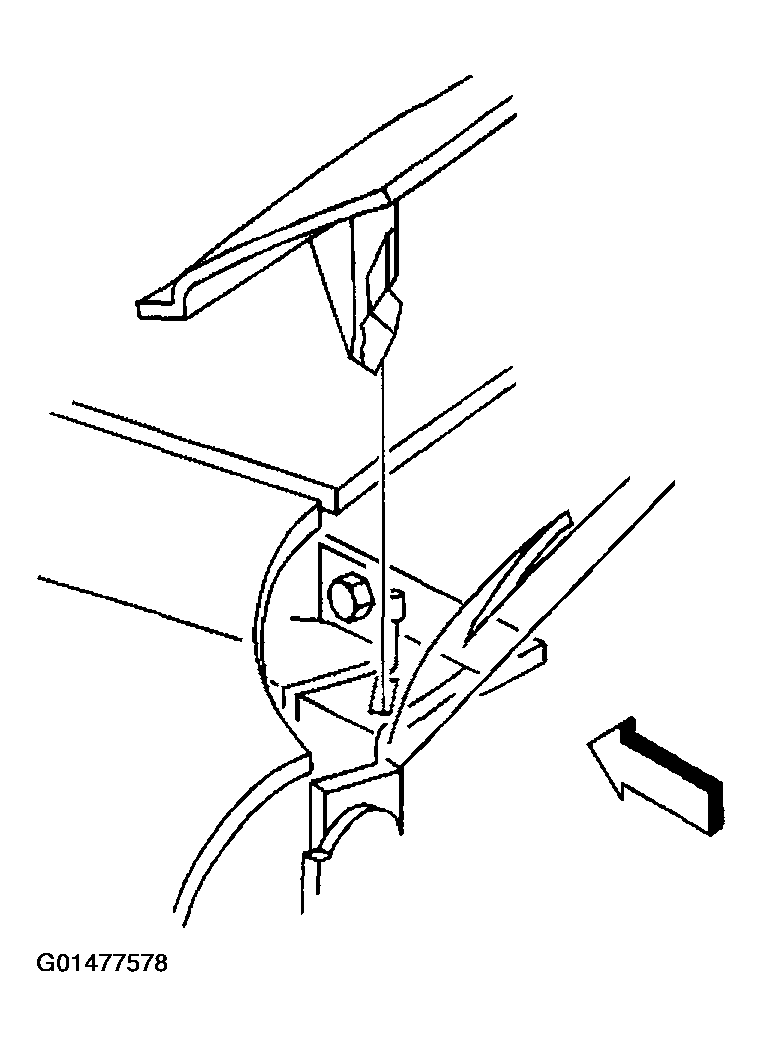

    Fig 3: Removing Center Vent Grille Panel From Cowl
    G01477578Courtesy of GENERAL MOTORS CORP.
