Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the center vent grille panel to the vehicle.

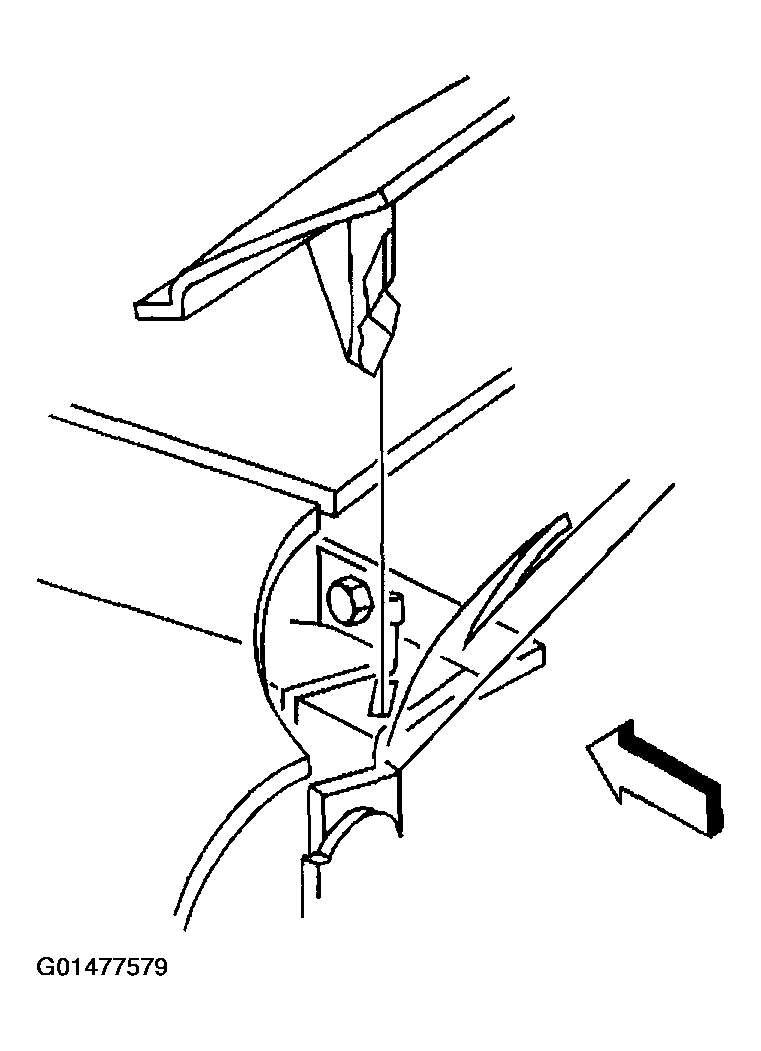

    Fig 1: Installing Center Vent Grille Panel To Vehicle
    G01477579Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws that secure the center vent grille panel to the cowl.

    Tighten

    Tighten the screws to 1.5 N.m (13 lb in).

  3. Install the push-pin retainers securing the center vent grille panel to the cowl.

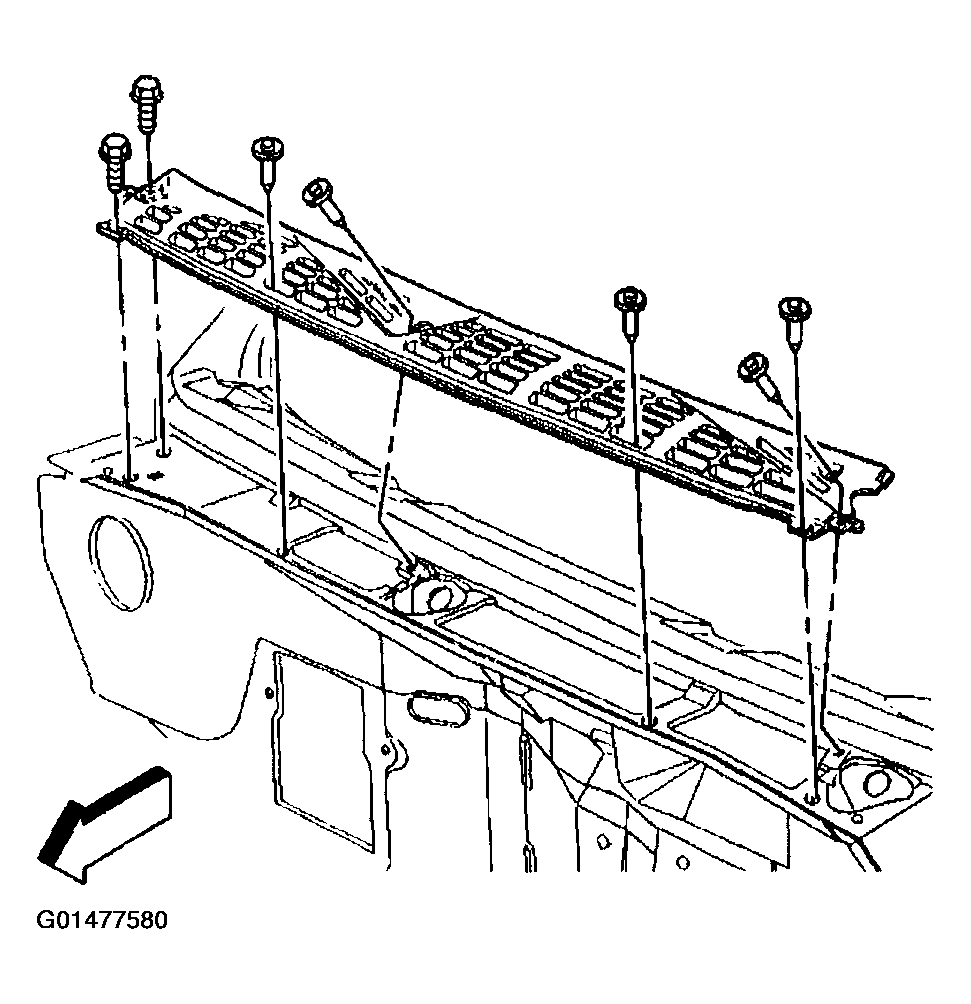

    Fig 2: Installing Screws Securing Center Vent Grille Panel To Cowl
    G01477580Courtesy of GENERAL MOTORS CORP.
  4. Install the right and the left vent grille end panels to the cowl.

    Tighten

    Tighten the screws to 1.5 N.m (13 lb in).

  5. Install the screws securing the securing the right and the left vent grille ends to the cowl.
  6. Install the windshield wiper arms. Refer to WIPER ARM REPLACEMENT in Wipers/Washer Systems.

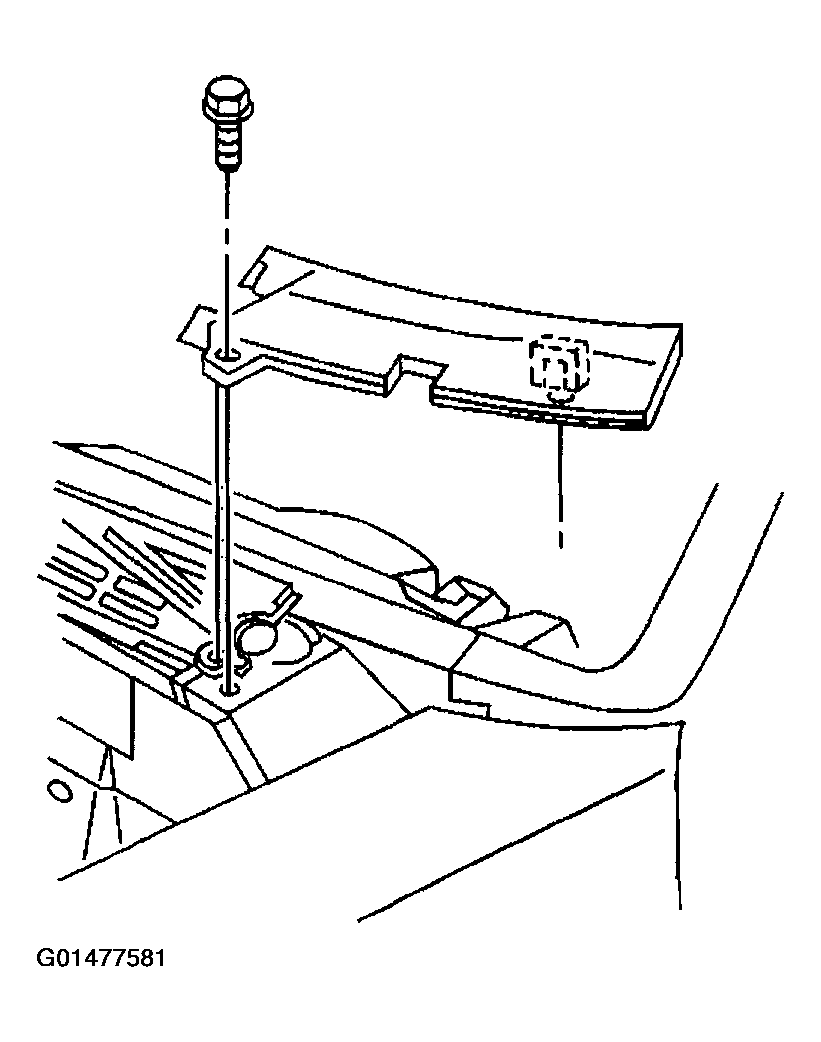

    Fig 3: Installing Bolt From Right & Left Vent Grille End Panels
    G01477581Courtesy of GENERAL MOTORS CORP.
