Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the grille. Refer to GRILLE REPLACEMENT (GMC) or GRILLE REPLACEMENT (CHEVROLET) in Exterior Trim.
  2. Drill out the rivets that retain the bracket to the front air deflector.
  3. Remove the bracket from the front air deflector.

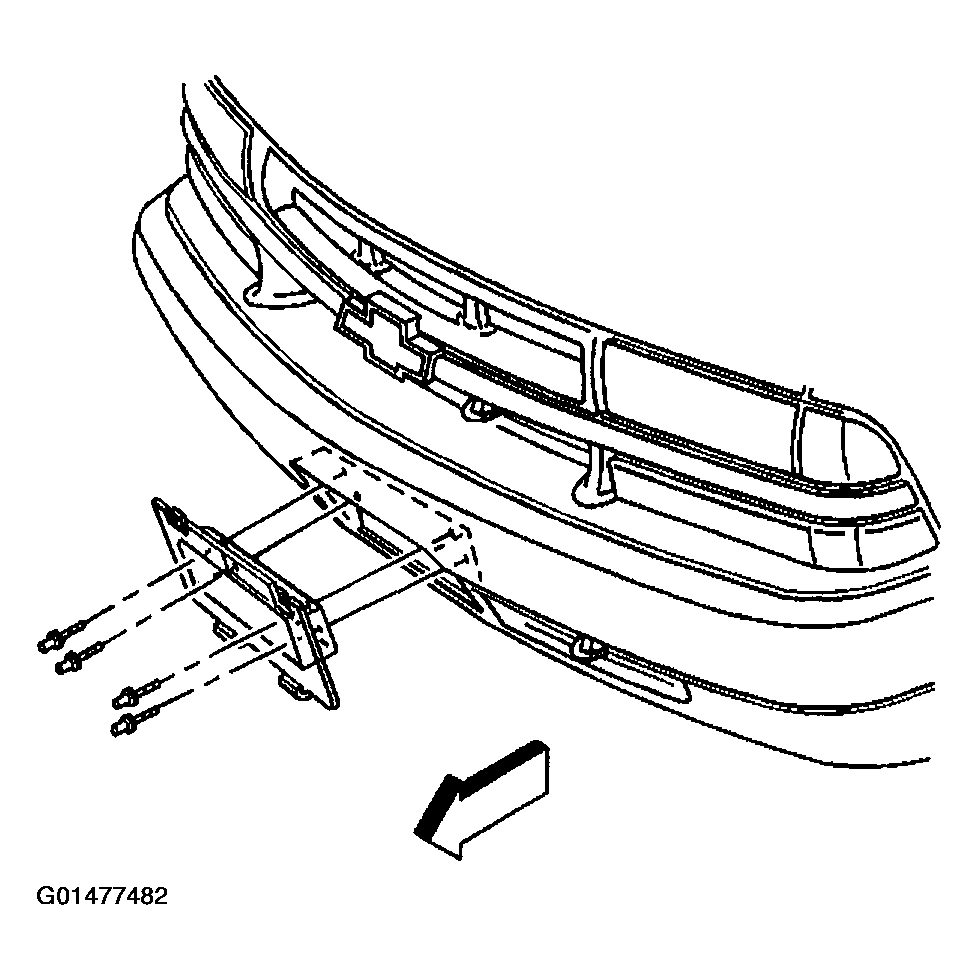

    Fig 1: Removing License Plate Bracket
    G01477482Courtesy of GENERAL MOTORS CORP.
