Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fascia to the impact bar with the clips on the bottom edge of the fascia.
  2. Install the step pads to the bumper.
  3. Install the license lamps. Refer to BUMPER EXTENSION REPLACEMENT - REAR  in Lighting Systems.

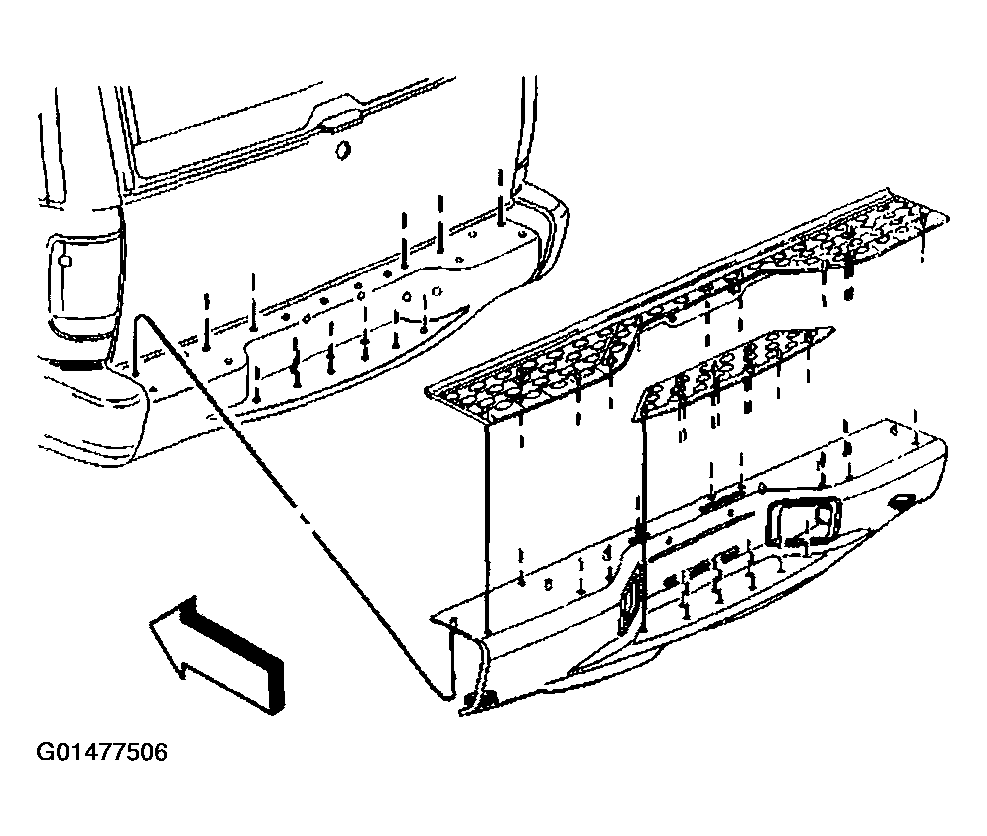

    Fig 1: Installing Clips Securing Fascia At Bottom Of Impact Bar
    G01477506Courtesy of GENERAL MOTORS CORP.
