Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove three screws securing the rear bumper extension to the wheelhouse panel.
  2. Remove the bolt that retains the rear bumper extension to the brace.
  3. Remove the nuts that retain the rear bumper extension to the rear quarter panel.

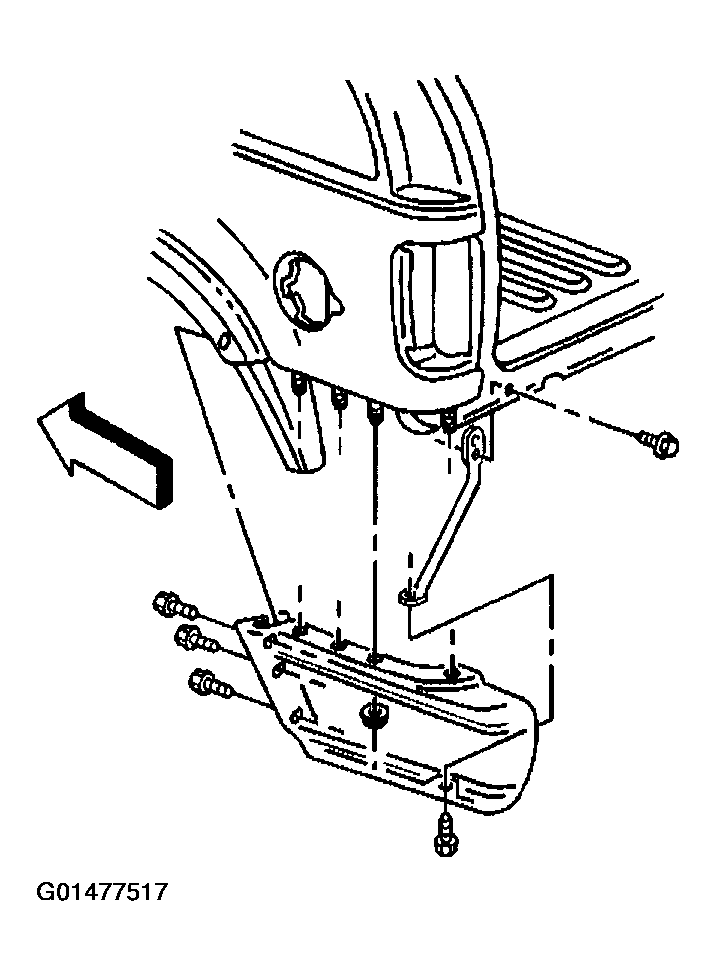

    Fig 1: Removing Nuts Retaining Rear Bumper Extension To Rear Quarter Panel
    G01477517Courtesy of GENERAL MOTORS CORP.
