Installation Procedure
WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Refer to FASTENER NOTICE
in Cautions and Notices.

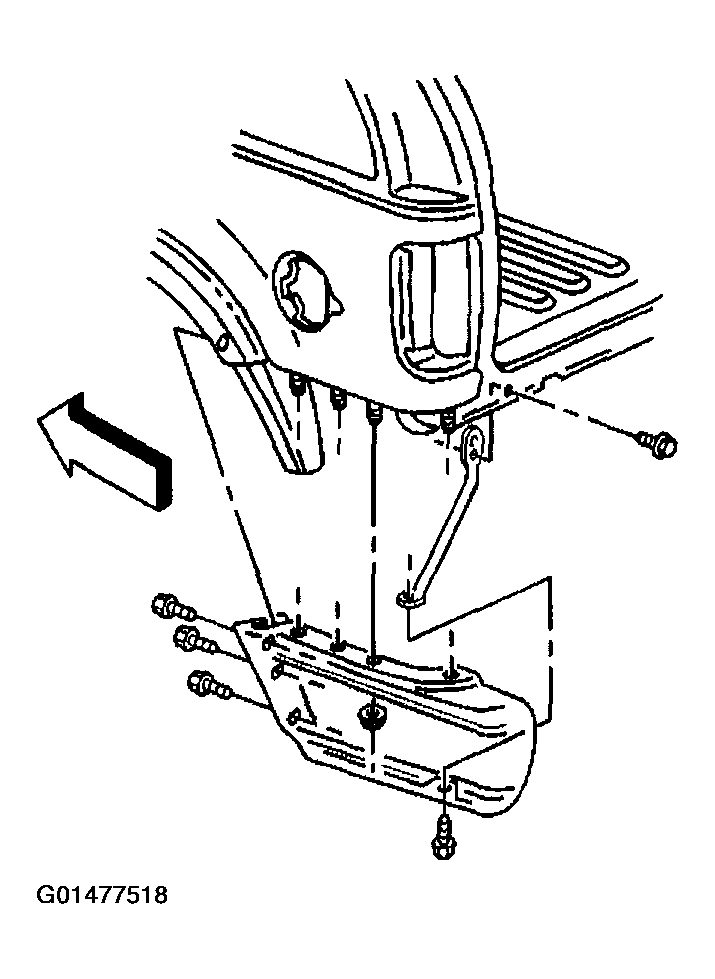

- Install the nuts that retain the rear bumper extension to the rear quarter panel.
Tighten
Tighten the rear bumper extension to the rear quarter panel nuts to 10 N.m (7 Ib. ft).
- Install the screws securing the rear bumper extension to the wheelhouse panel.
The screws should be installed from the top to the bottom.
Tighten
Tighten the rear bumper extension to the wheelhouse screws to 1.9 N.m (17 Ib. in).
- Install the bolt that retains the brace to the rear bumper extension.
Tighten
Tighten the brace to the rear bumper extension bolt to 10 N.m (7 Ib. ft).
