Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bumper impact bar. Refer to IMPACT BAR REPLACEMENT - REAR BUMPER (PICKUP)  or IMPACT BAR REPLACEMENT - REAR BUMPER (UTILITY) .
  2. Remove 4 nuts and 2 stud plate assemblies securing the rear bumper bracket to each frame rail.
  3. Remove the rear bumper bracket from the frame rail.

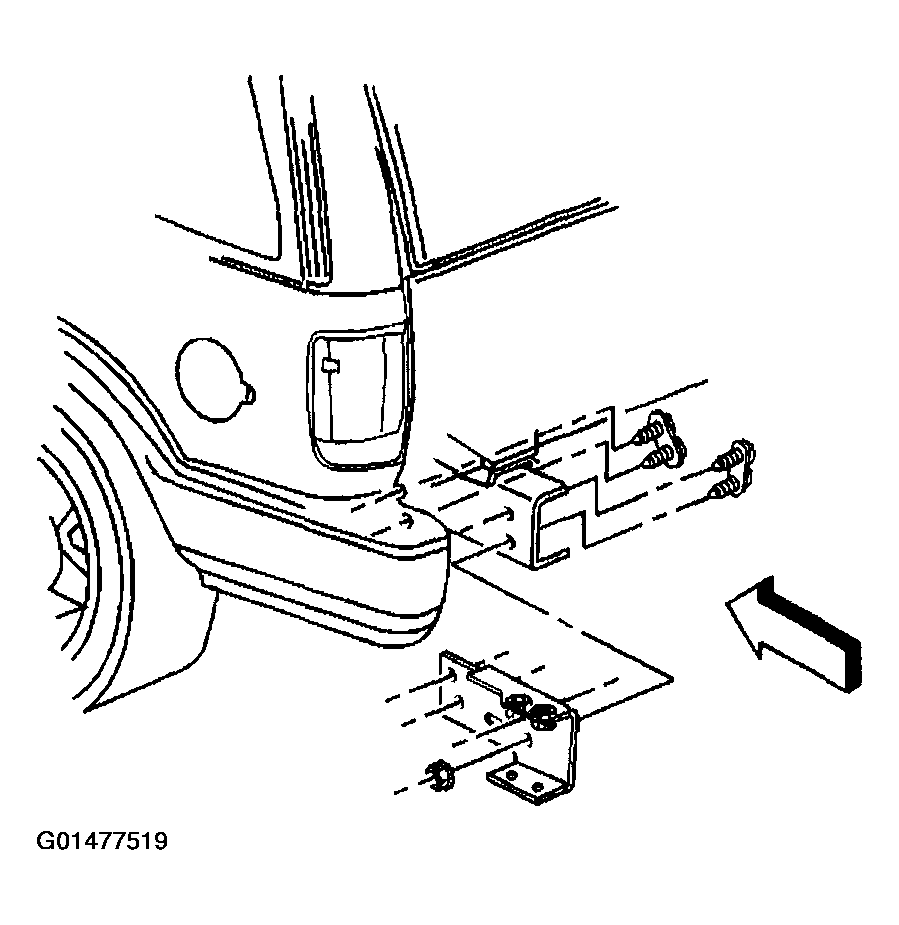

    Fig 1: Removing Rear Bumper Bracket From Frame Rail
    G01477519Courtesy of GENERAL MOTORS CORP.
