Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the brace to the vehicle.
Install the 2 nuts and bolts that retain the brace to the bumper frame.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the nut and the bolt that retain the brace to the bumper impact bar.
Tighten

Tighten the front bumper brace bolts to 40 N.m (30 Ib. ft).

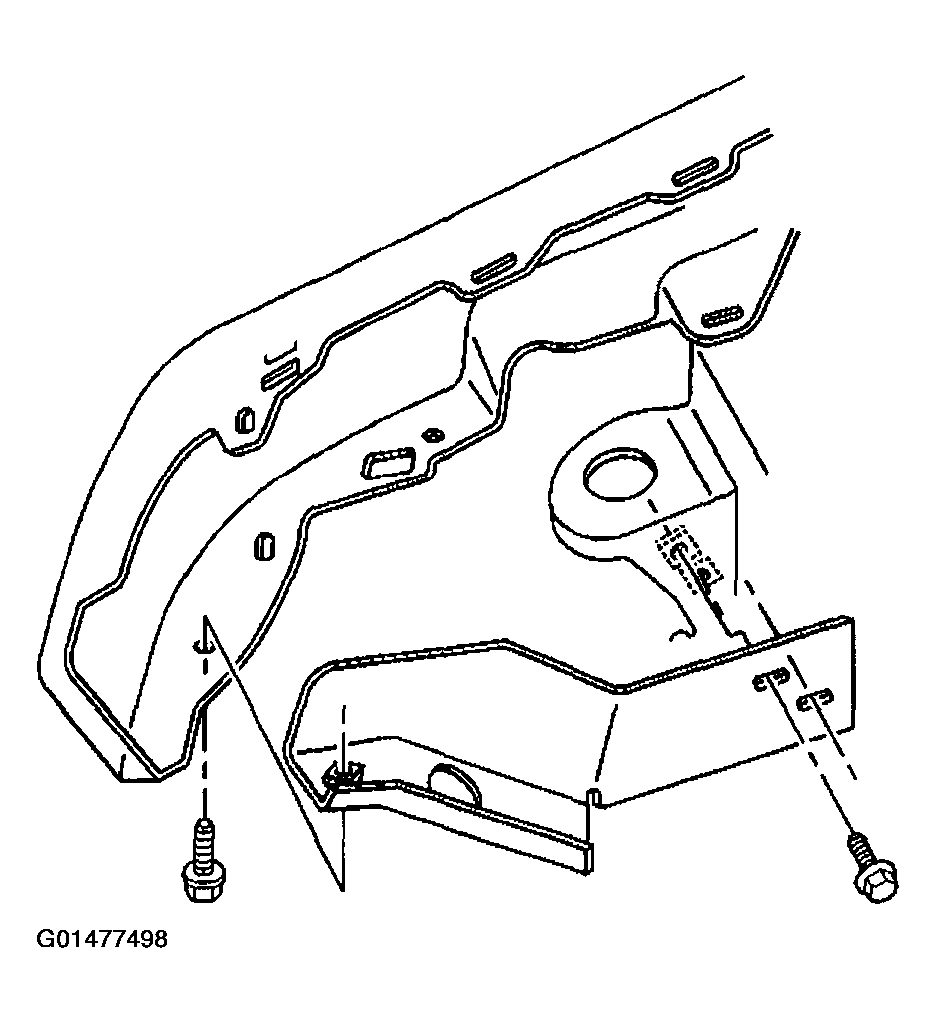

Fig 1: Installing 2 Nuts & Bolts Retaining Brace To Frame
Courtesy of GENERAL MOTORS CORP.
