Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the fog lamps to the deflector, if equipped. Refer to the appropriate procedure in Lighting Systems:
- HEADLAMP ASSEMBLY OR HEADLAMP BULB AND/OR CORNERING, SIDEMARKER, PARK, TURN SIGNAL BULB REPLACEMENT
- FOG LAMP REPLACEMENT -- FRONT (XTREME)
Install the deflector to the vehicle. Ensure that the retainers lock into position.
Install the license plate bracket, if equipped. Refer to LICENSE BRACKET REPLACEMENT - FRONT .
Install 2 air deflector push-in retainers, one on either end of the deflector.
Install the front bumper to the vehicle. Refer to IMPACT BAR REPLACEMENT - FRONT BUMPER .

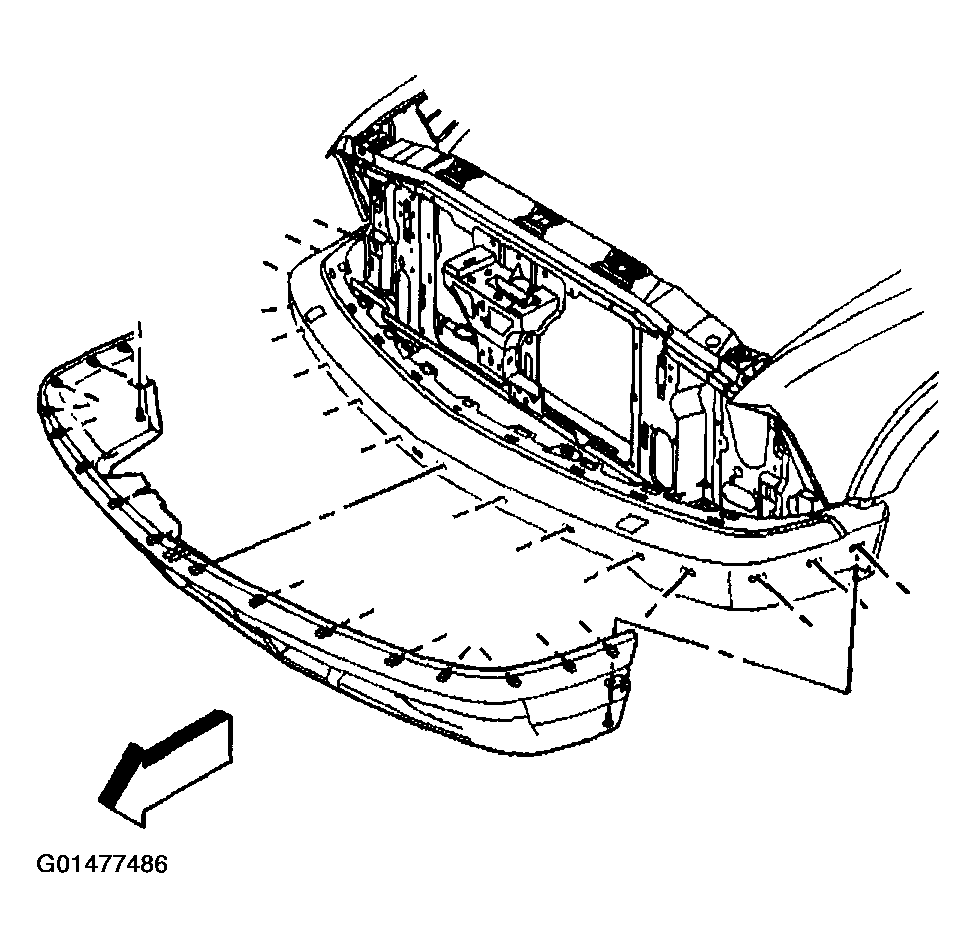

Fig 1: Installing Deflector To Vehicle
Courtesy of GENERAL MOTORS CORP.
