Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the window assembly to the vehicle.
  2. Using the J 34940  , or equivalent, install the rivets in order to retain the window assembly to the vehicle.
  3. Install the seat belt retractor. Refer to SEAT BELT REPLACEMENT--FRONT in Seat Belts.
  4. Install the latch pin.

    Using a punch, carefully drive the pin into the latch.

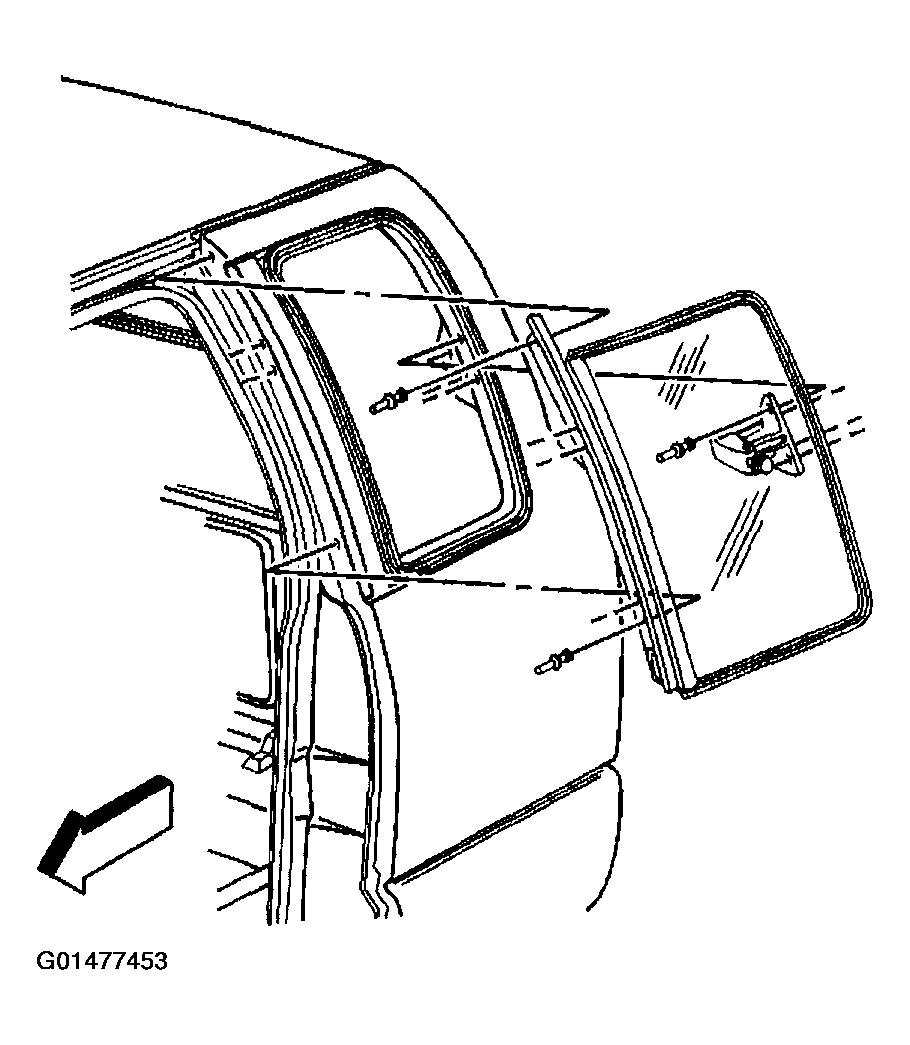

    Fig 1: Installing Body Side Stationary Window (Pickup)
    G01477453Courtesy of GENERAL MOTORS CORP.
