Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the surface of the wheel flare and the fender.
  2. Apply the 2-way adhesive to the wheel flare.
  3. Install the wheel flare to the vehicle fender.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the screws that retain the rear wheel flare to the vehicle.

    Tighten

    Tighten the screws to 1.9 N.m (17 lb in).

  5. Lower the vehicle.

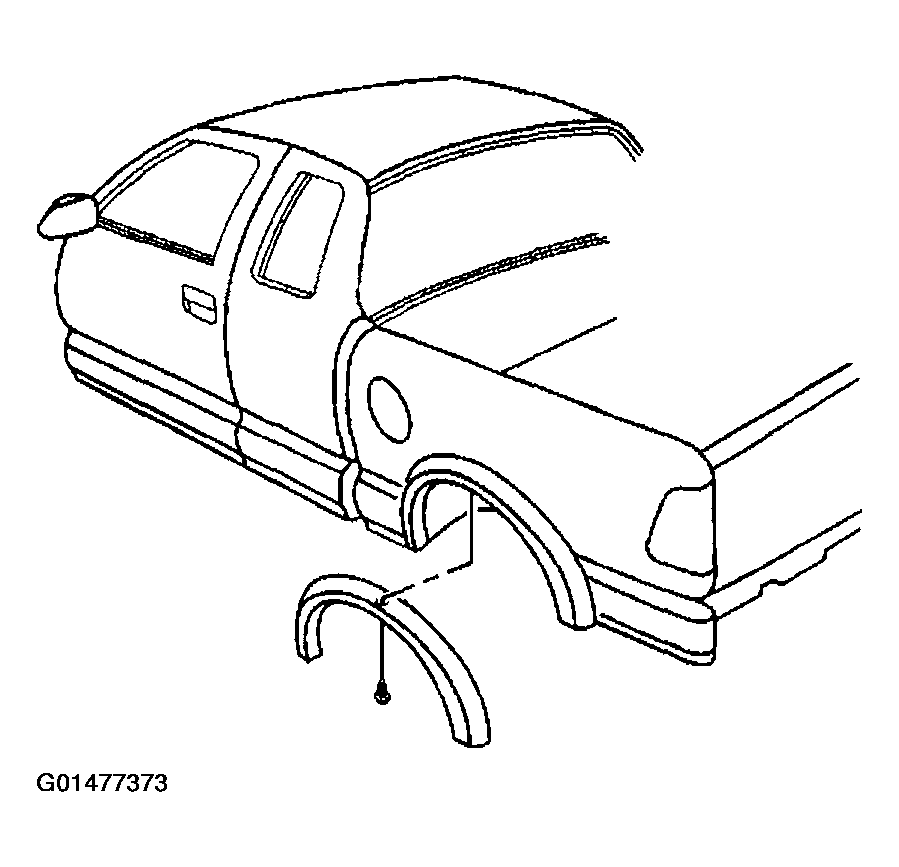

    Fig 1: Installing Rear Wheel Flare To Vehicle Retaining Screws
    G01477373Courtesy of GENERAL MOTORS CORP.
