Installation Procedure
WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

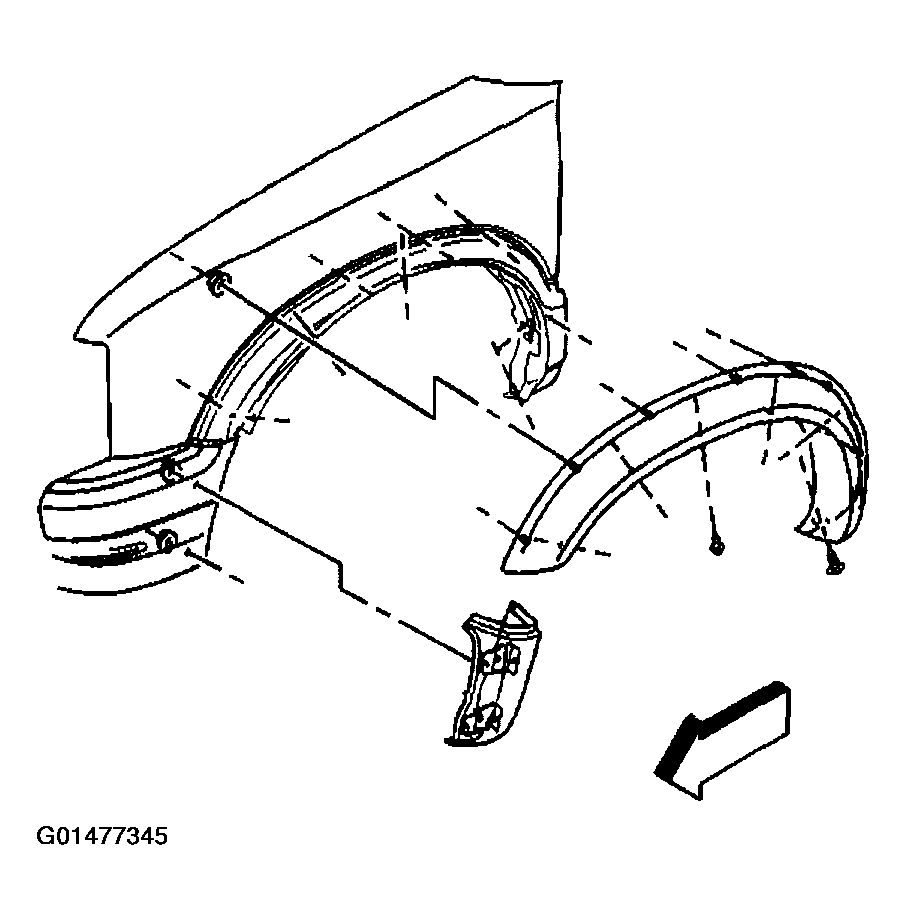

- Install the flare molding to the fender.
- Install 1 screw through the flare to the center of the fender.
- Install the nuts to the flare molding studs inside the fender.
Do not tighten.
- Install the flare to fender retaining screws.
Do not tighten.
- Install the fender to the vehicle. Refer to FENDER REPLACEMENT -- FRONT in Body Front End.
- Loosely install the nuts securing the lower flare molding to the front bumper assemble.
- Rotate the tire to obtain minimum clearance between the tire and the flare molding.
- Shift the bumper forward in the adjustment slots until a minimum of 4 mm is obtained between the rear edge of the flare molding and the front of the tire.NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
- Tighten all of the bumper fasteners.
Tighten
- Tighten the bumper bolts to 40 N.m (30 lb ft).
- Tighten the flare to fender nuts to 1.6 N.m (14 lb in).
- Tighten the flare to bumper nuts to 1.6 N.m (14 lb in).
- Tighten the flare to the fender screws to 1.6 N.m (14 lb in).
