Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the flare to the panel.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws that retain the flare to the panel.

    Tighten

    Tighten the screws that retain the flare to the panel to 1.9 N.m (17 lb in).

  3. Install the wheel house panel access plugs.

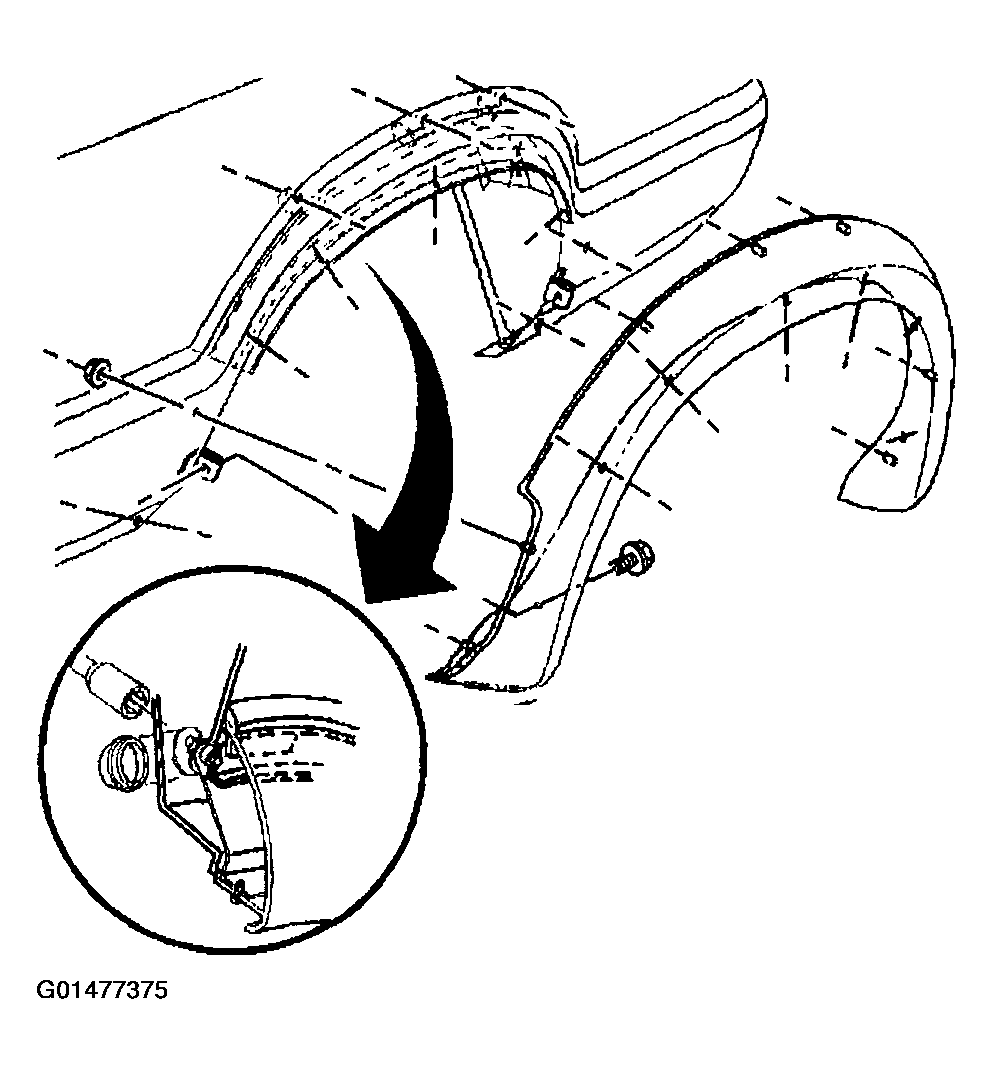

    Fig 1: Installing Flare To Panel Retaining Screws
    G01477375Courtesy of GENERAL MOTORS CORP.
