Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Warm body panel with a heat lamp or heat gun to a minimum of 21°C (70°F).
  2. Peel the backing from the front end of the pickup box rear molding.

    Important:  Do not touch the adhesive backing.

  3. Press the pickup box rear molding to the body.

    Ensure that the molding clips are aligned with the body holes.

  4. Hand roll the pickup box rear molding to the body in order to ensure proper adhesion.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

    Tighten

    Tighten to 2 N.m (18 lb in.)

  5. Install 2 screws to secure the pickup box rear molding to the body panel.

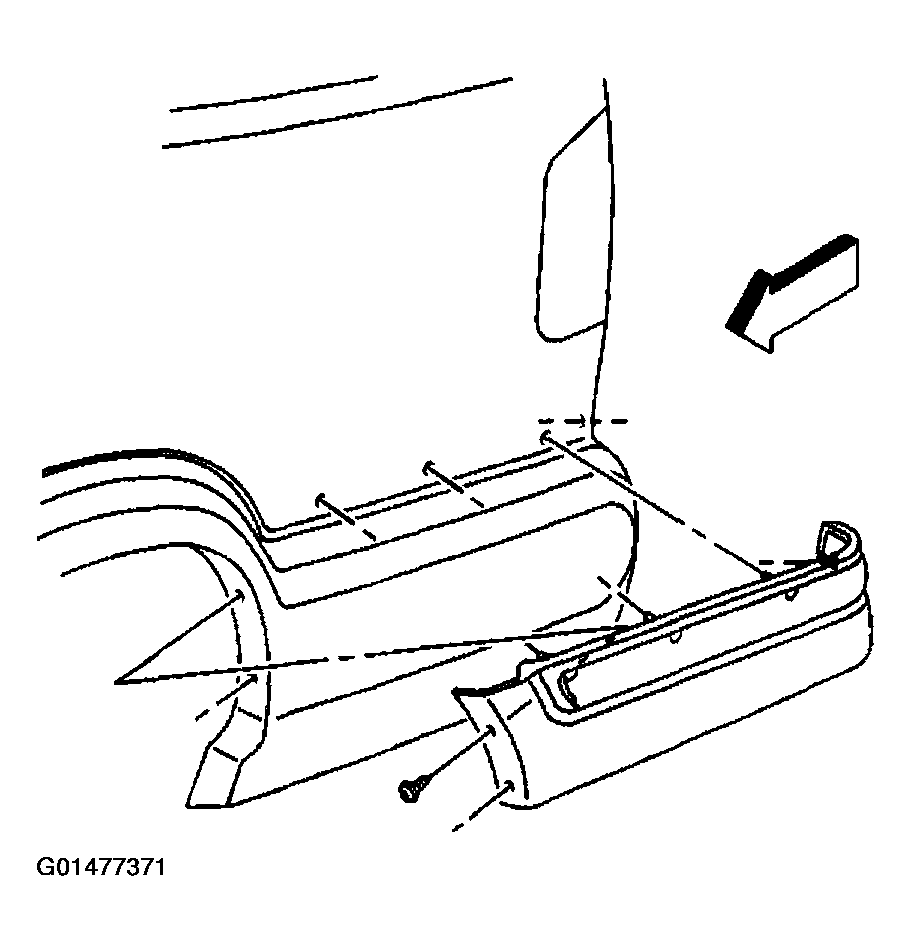

    Fig 1: Installing 2 Screws Securing Pickup Box Rear Molding To Body Panel
    G01477371Courtesy of GENERAL MOTORS CORP.
