Installation Procedure
WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

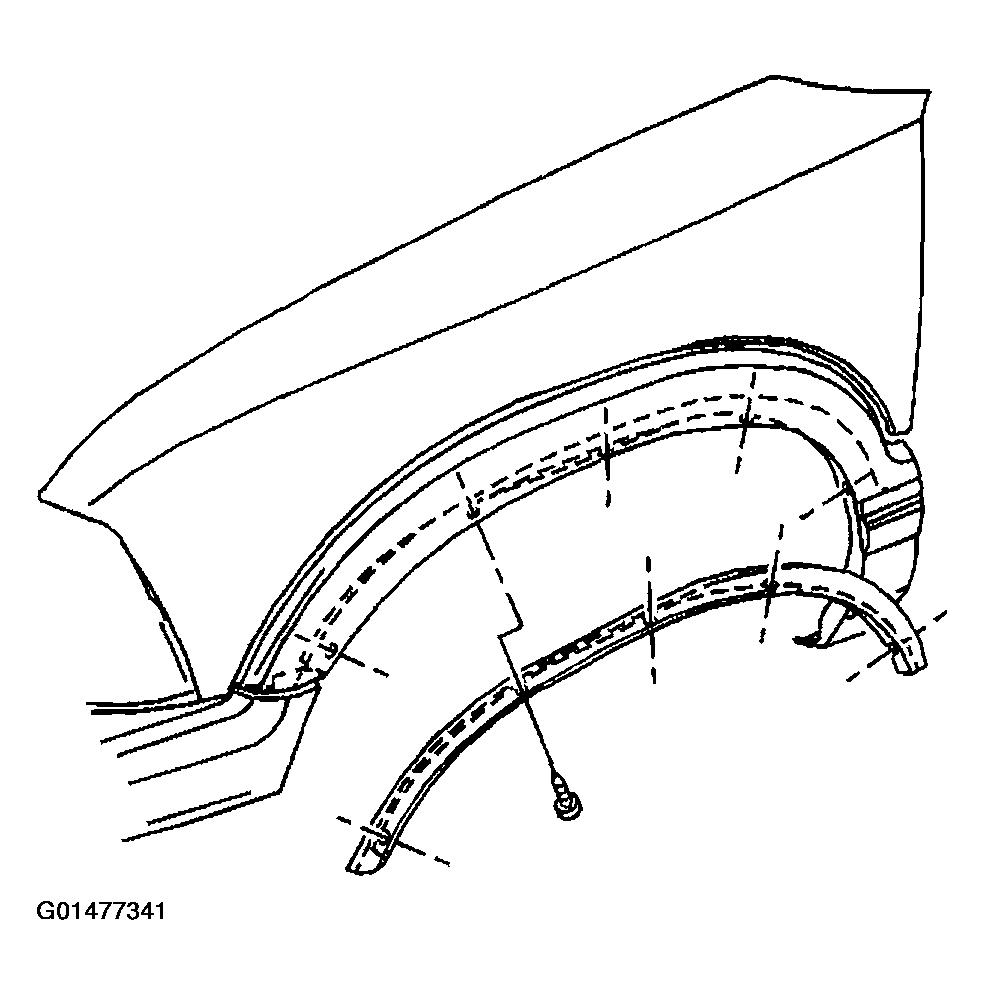

Position the molding in the wheel opening.
NOTE:
Refer to FASTENER NOTICE
in Cautions and Notices.
- Begin attaching the molding at the pilot hole.
Work forward and rearward from the pilot hole screw.
- Attach the molding and the screws to the fender.
Tighten
Tighten the screws to 1.9 N.m (17 lb in).
