Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Heat the body side molding using a J 25070.  Hold the heat gun approximately 152 mm (6 in) from surface.

    Apply heat using a circular motion for about 30 seconds.

    Important:  Be careful not to scratch or chip the paint.

  2. Peel the body side molding from the panel surface using a flat-bladed tool.
  3. Remove all adhesive from the body panel and the back of the body side molding using a 3M™ scotch brite molding adhesive remover disk 3M™ P/N 07501 or equivalent.
  4. Clean the body panel using Varnish Makers and Painters (VMP) naphtha.

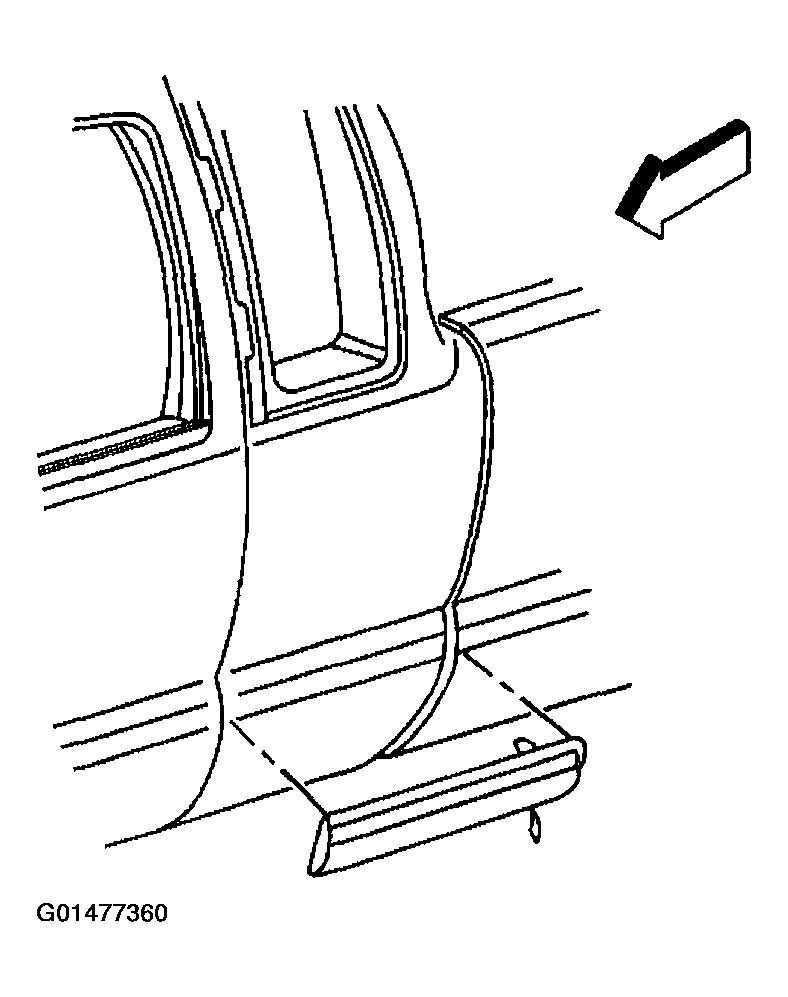

    Fig 1: Peeling Body Side Molding From Panel Surface
    G01477360Courtesy of GENERAL MOTORS CORP.
