Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Warm body panel with a heat lamp or heat gun to a minimum of 21°C (70°F).
  2. Peel the backing from the front end of the body side molding.

    Important:  Do not touch the adhesive backing.

  3. Press the body side molding to the body while continuing to remove the backing.
  4. Hand roll the body side molding to the body in order to ensure proper adhesion.

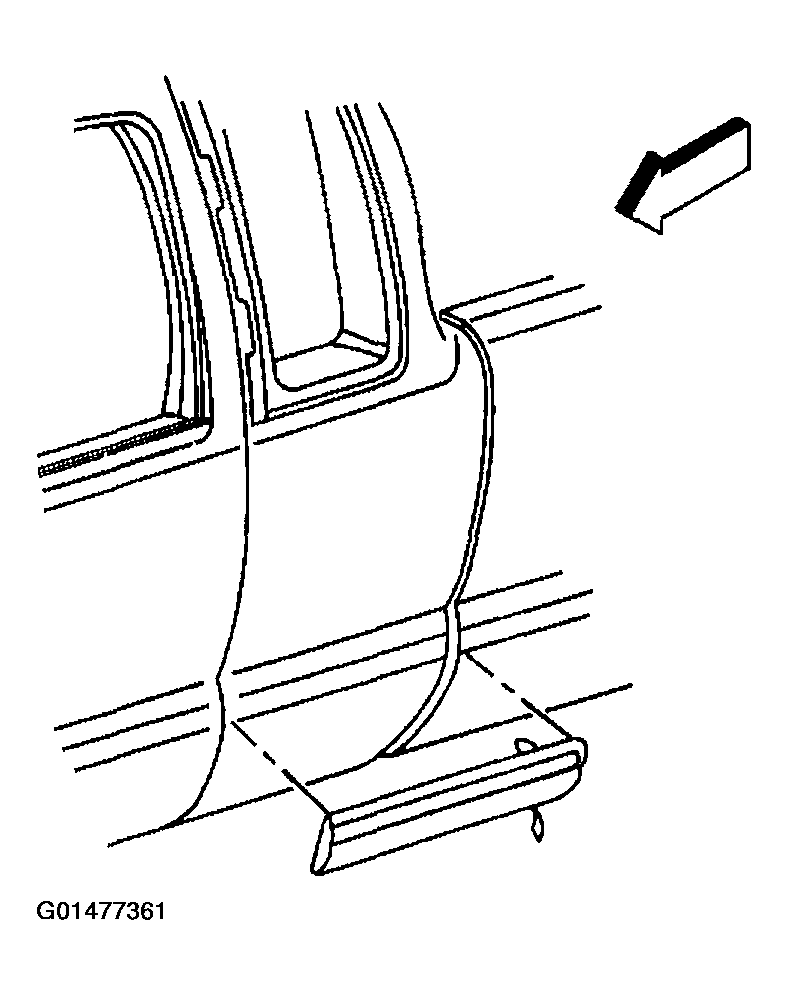

    Fig 1: Pressing Body Side Molding To Body
    G01477361Courtesy of GENERAL MOTORS CORP.
