Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Load the molding horizontally inboard to the rocker retainer in order to engage the top flange of the molding with the channel at the top of the retainer.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the molding to the retainer.
    1. Align the molding fore-aft against the rear wheel opening.
    2. Install the 3 screws into the door frame.

      Install the top screw first while pushing the molding inboard.

      Tighten

      Tighten the molding screws to 1.9 N.m (17 lb in).

    3. Install the 6 pushpin retainers through the slots in the molding into the retainer holes.

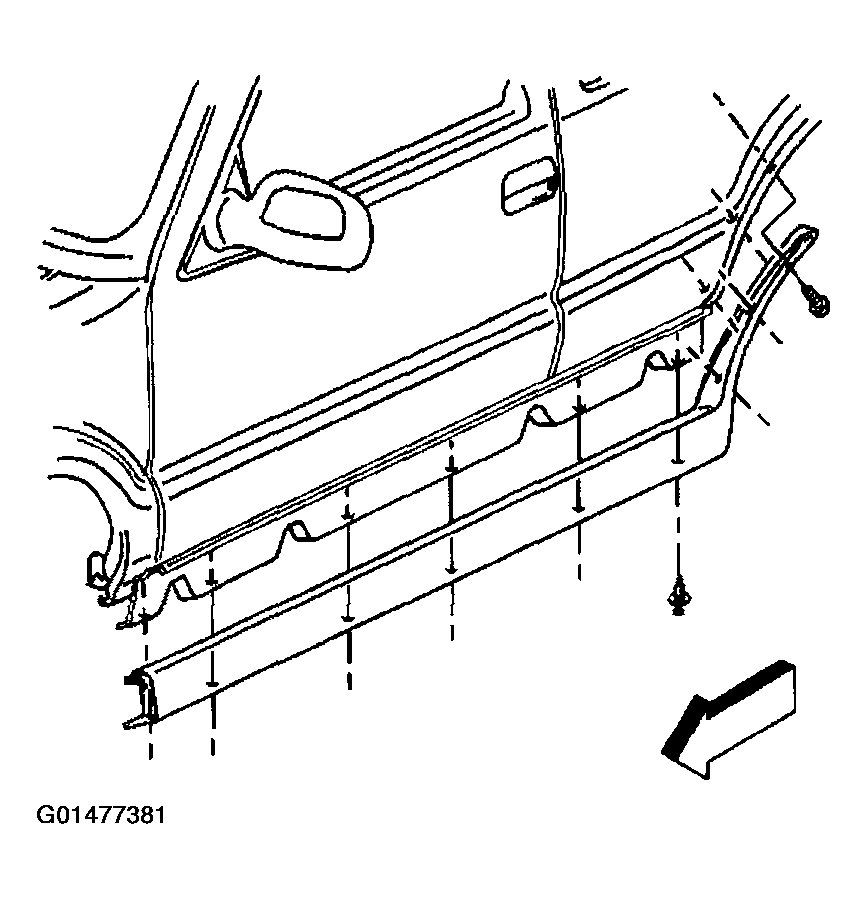

    Fig 1: Installing 7 Retainers Securing Panel To Retainer
    G01477381Courtesy of GENERAL MOTORS CORP.
