Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the grille by pulling it forward out of the radiator support.
  3. Disconnect the headlamp washer filler hose from the grille.
  4. Remove the park/turn signal bulb assembly from the lens.
  5. Remove the fog lamp bulb assembly from the lens, if equipped.
  6. If replacing the grille, remove the park turn signal lamp/fog lamp assembly from the grille. Refer to FRONT FOG LAMP -- PARK/TURN SIGNAL ASSEMBLY REPLACEMENT in Lighting Systems.

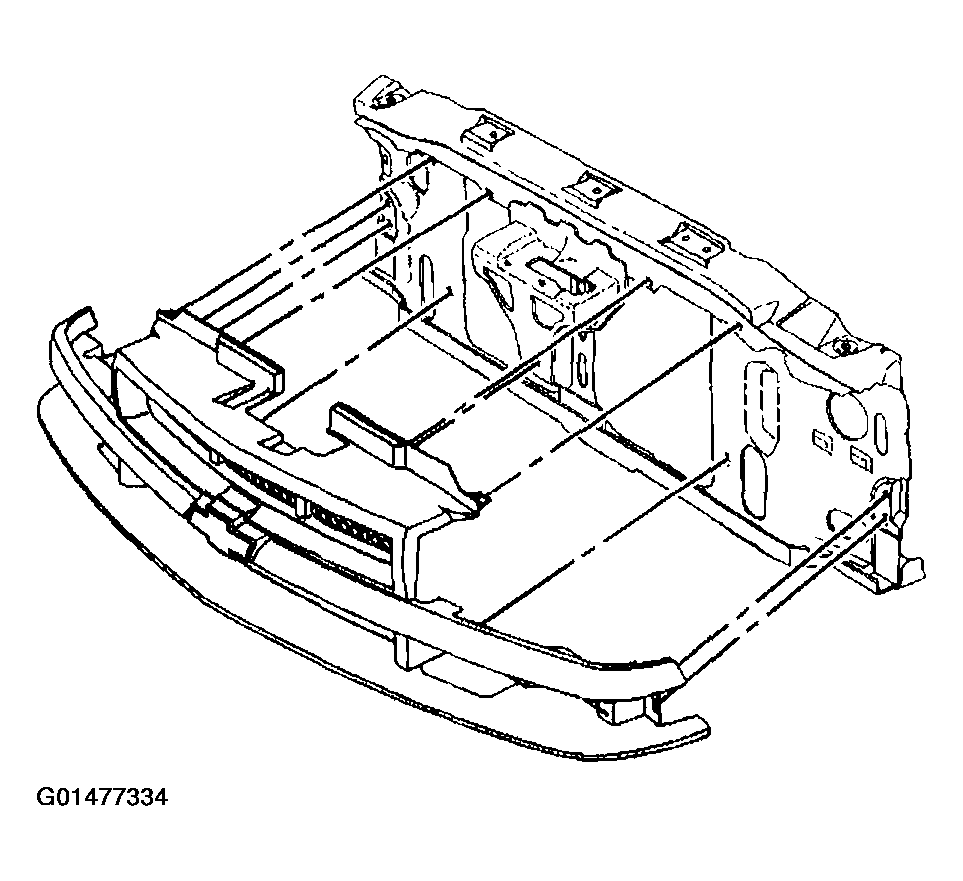

    Fig 1: Removing Grille By Pulling Forward Out Of Radiator Support
    G01477334Courtesy of GENERAL MOTORS CORP.
