Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the push-pins from the lower moldings.
  3. Remove the nuts that retain the cladding to the pickup box.
  4. Remove the cladding from the pickup box.

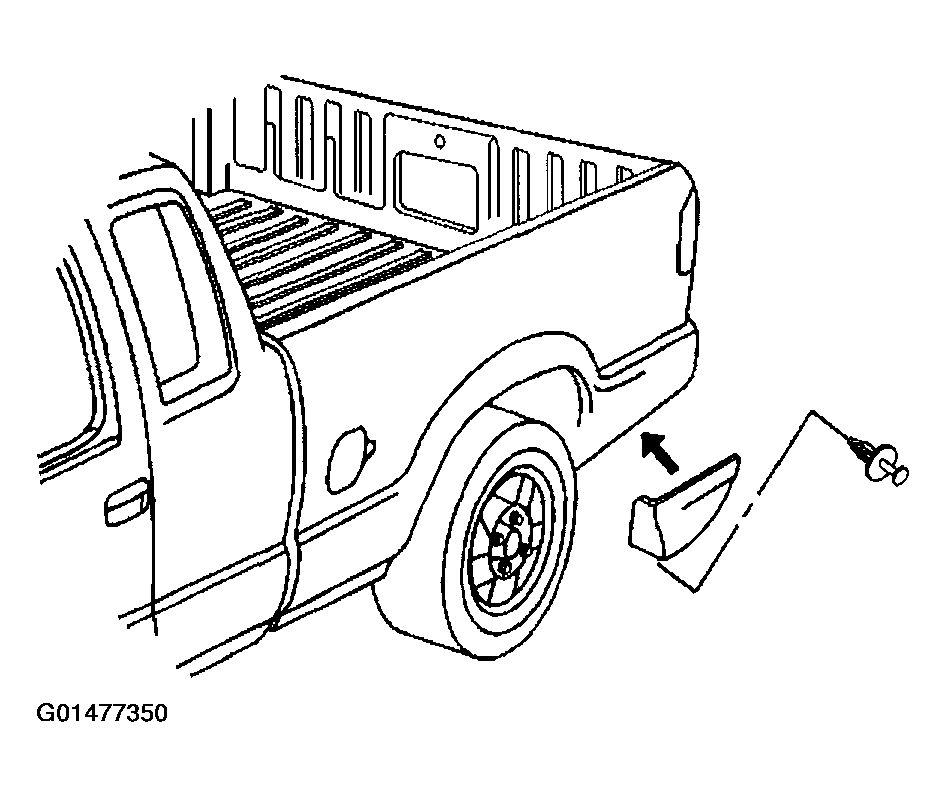

    Fig 1: Removing Cladding To Pickup Box Retaining Nut
    G01477350Courtesy of GENERAL MOTORS CORP.
