Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the rear wheel flare. Refer to WHEEL OPENING FLARE REPLACEMENT -REAR (XTREME)  or WHEEL OPENING FLARE REPLACEMENT - REAR (ALL EXCEPT XTREME) .
  3. Remove the push-pins from the lower molding.
  4. Remove the lower molding from the pickup box.

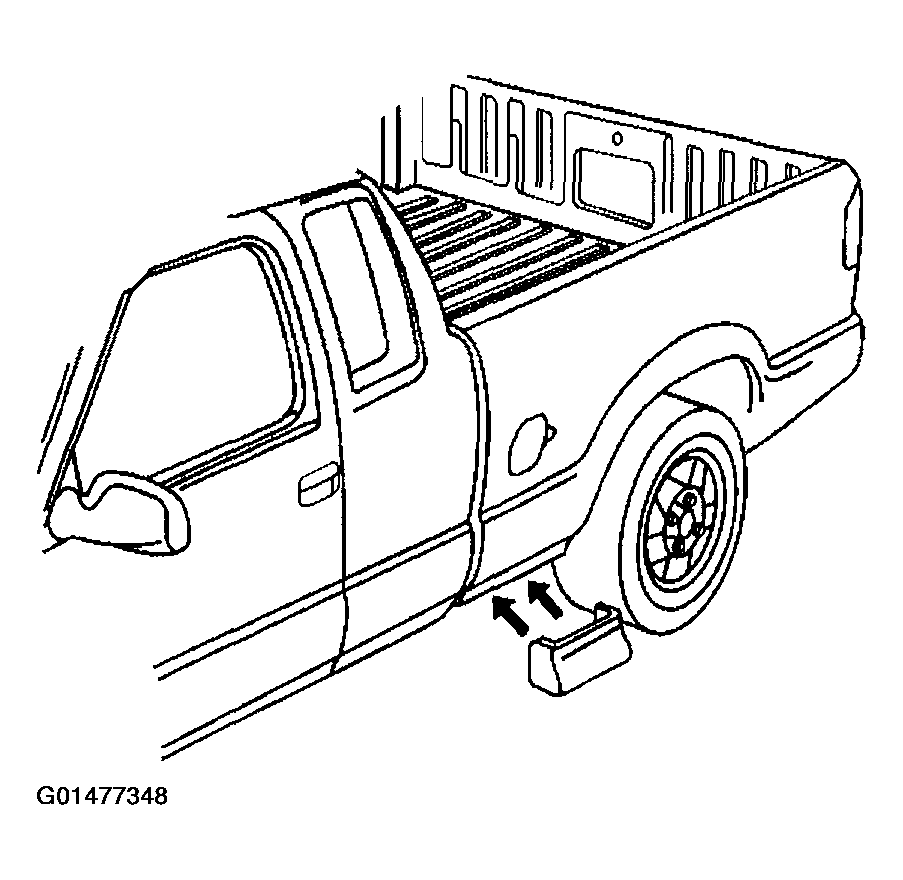

    Fig 1: Removing Push-Pins From Lower Molding
    G01477348Courtesy of GENERAL MOTORS CORP.
