Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lower molding to the pickup box.
  2. Install the push-pins.
  3. Install the rear wheel flare. Refer to WHEEL OPENING FLARE REPLACEMENT -REAR (XTREME)  or WHEEL OPENING FLARE REPLACEMENT - REAR (ALL EXCEPT XTREME) .
  4. Lower the vehicle.

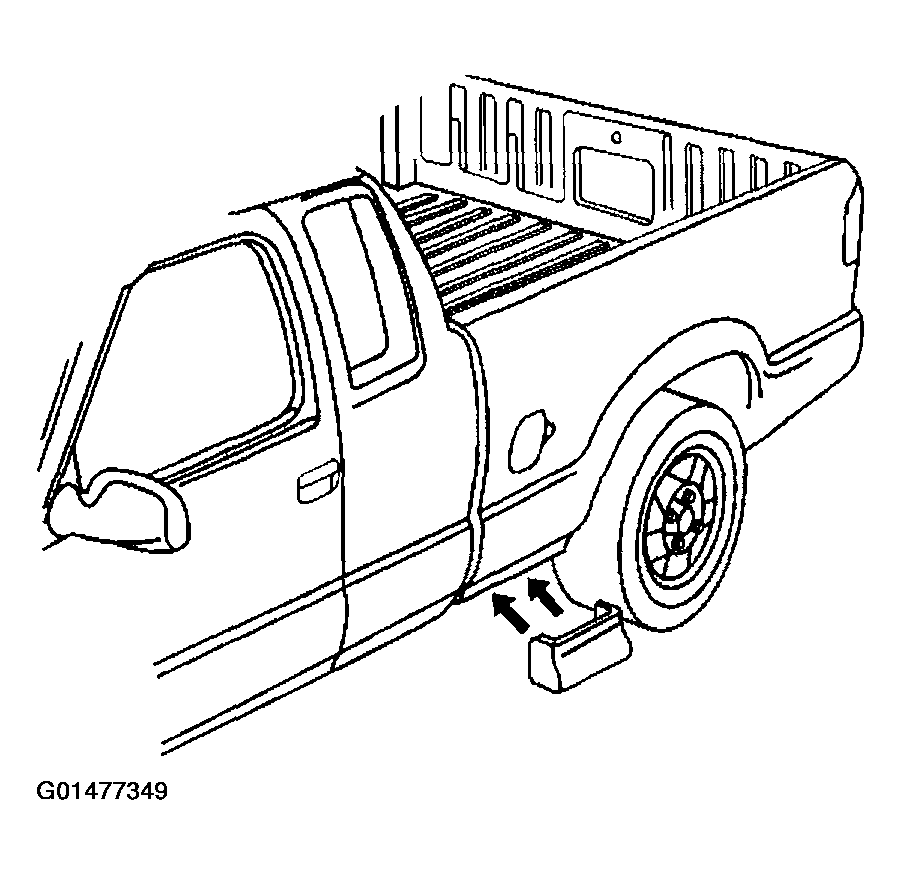

    Fig 1: Push-Pins
    G01477349Courtesy of GENERAL MOTORS CORP.
