Schematic and Routing Diagrams

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

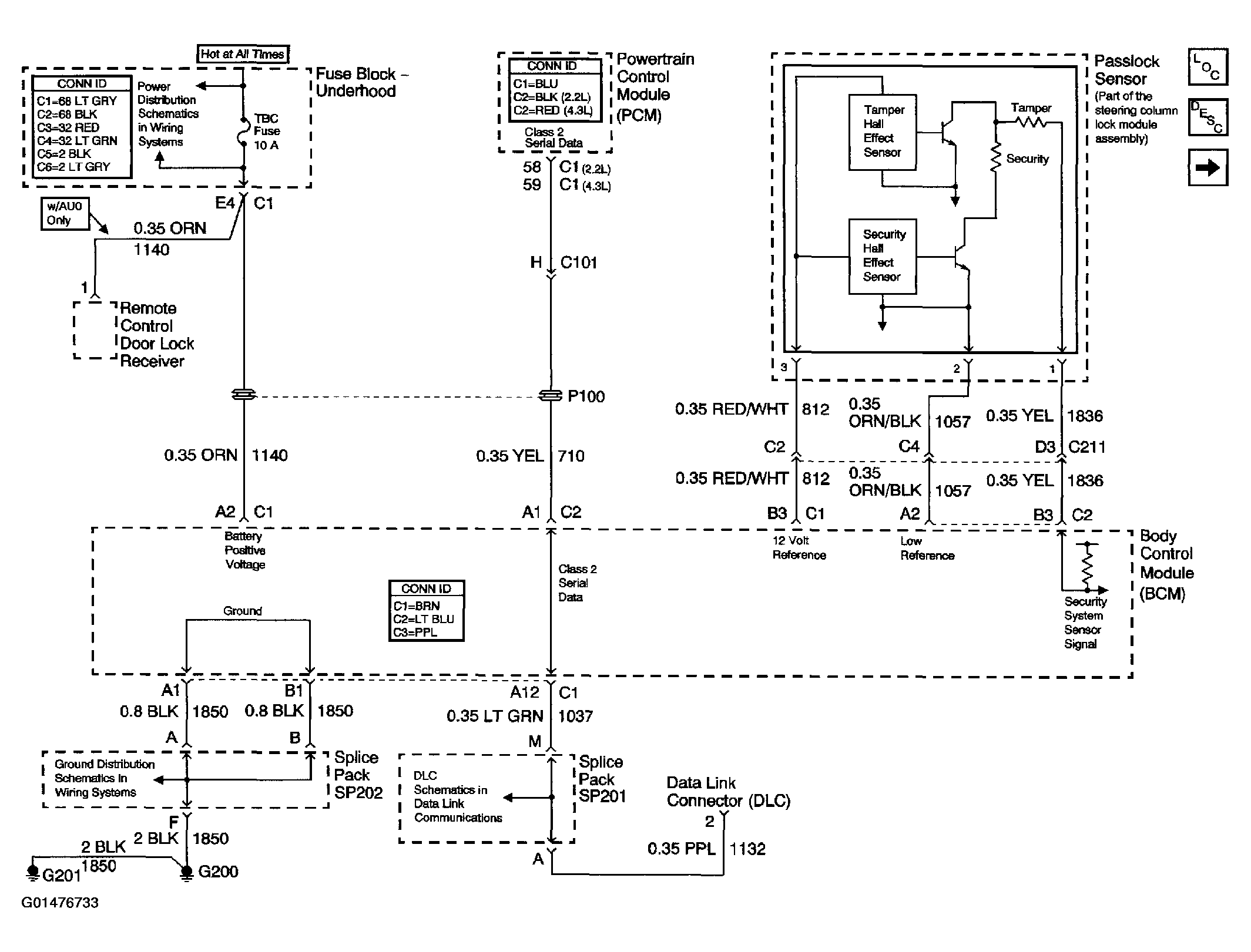

Fig 1: Theft Deterrent System Schematics (Power, Ground & Passlock™ Sensor)

Courtesy of GENERAL MOTORS CORP.

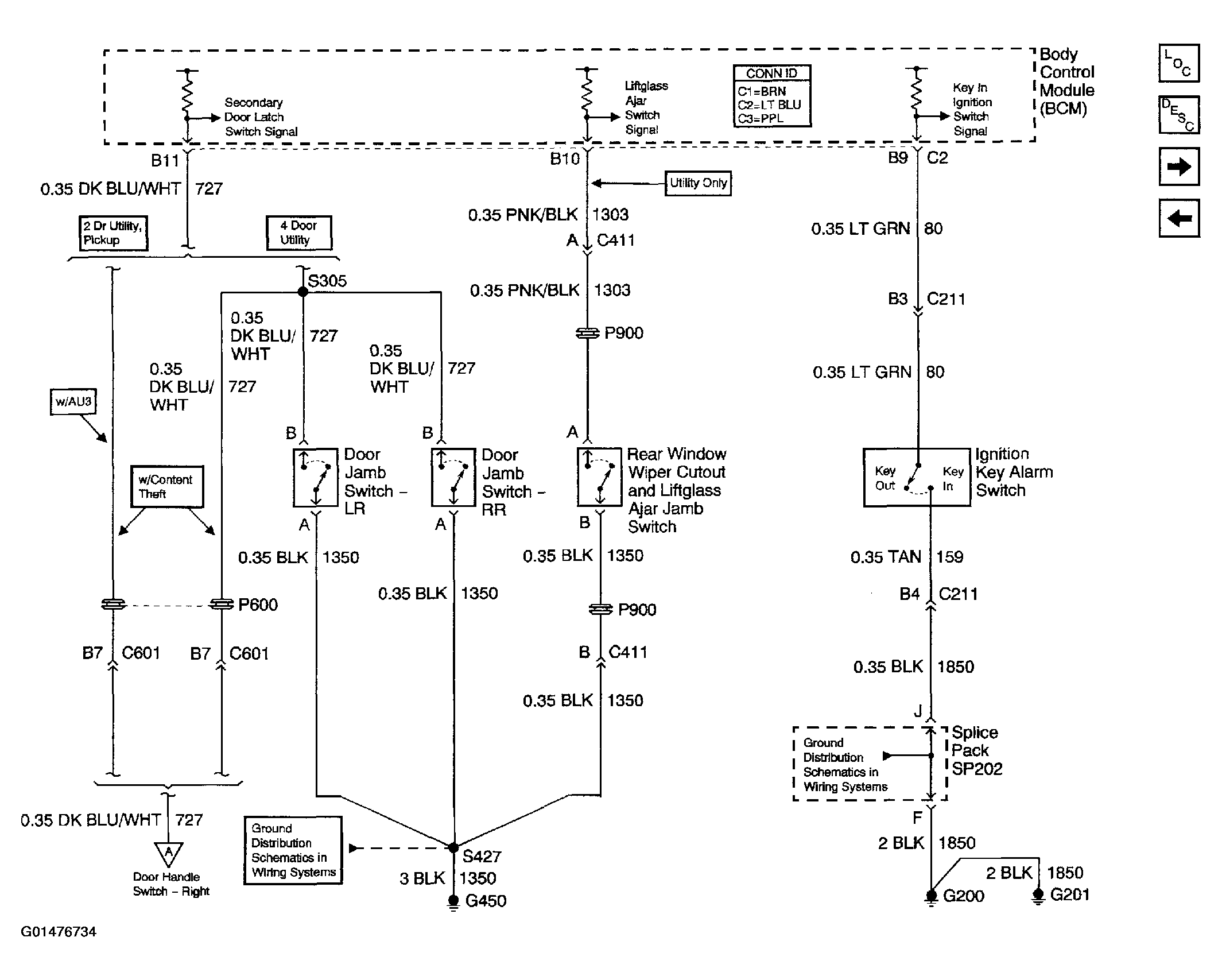

Fig 2: Theft Deterrent System Schematics (Door Jamb Switch Inputs)

Courtesy of GENERAL MOTORS CORP.

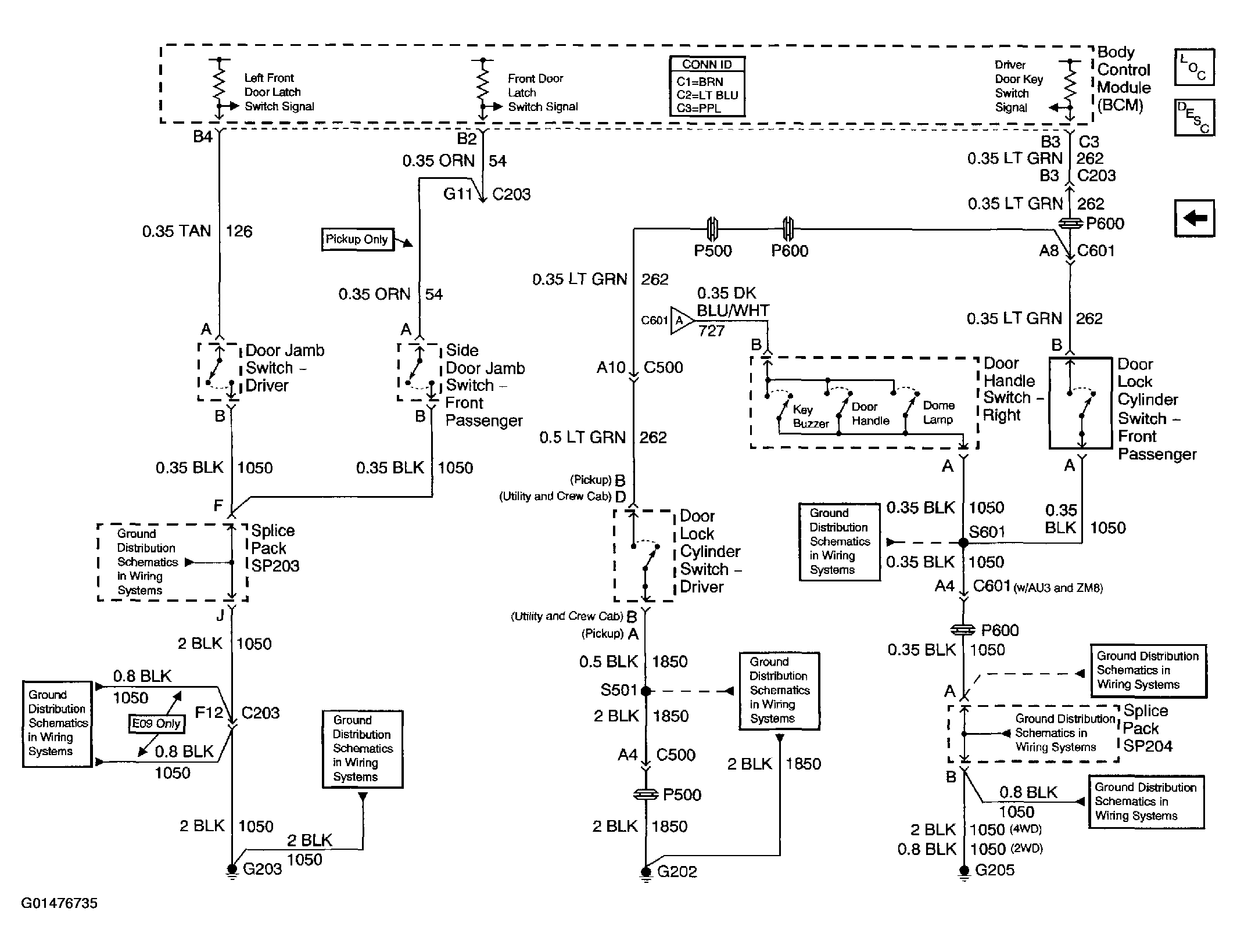

Fig 3: Theft Deterrent System Schematics (Door Handle Switch Inputs)

Courtesy of GENERAL MOTORS CORP.
