Removal (8.1L Engine)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, and 2002 Chevrolet Tahoe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn off all lamps and accessories. Turn ignition off. Disconnect negative battery cable. See Figure .
  2. Raise and suitably support the vehicle with safety stands.
  3. If necessary, remove the engine shield bolts and shield. See Fig 1 .
  4. If necessary, remove the oil pan skid plate bolts and plate. See Fig 2 .

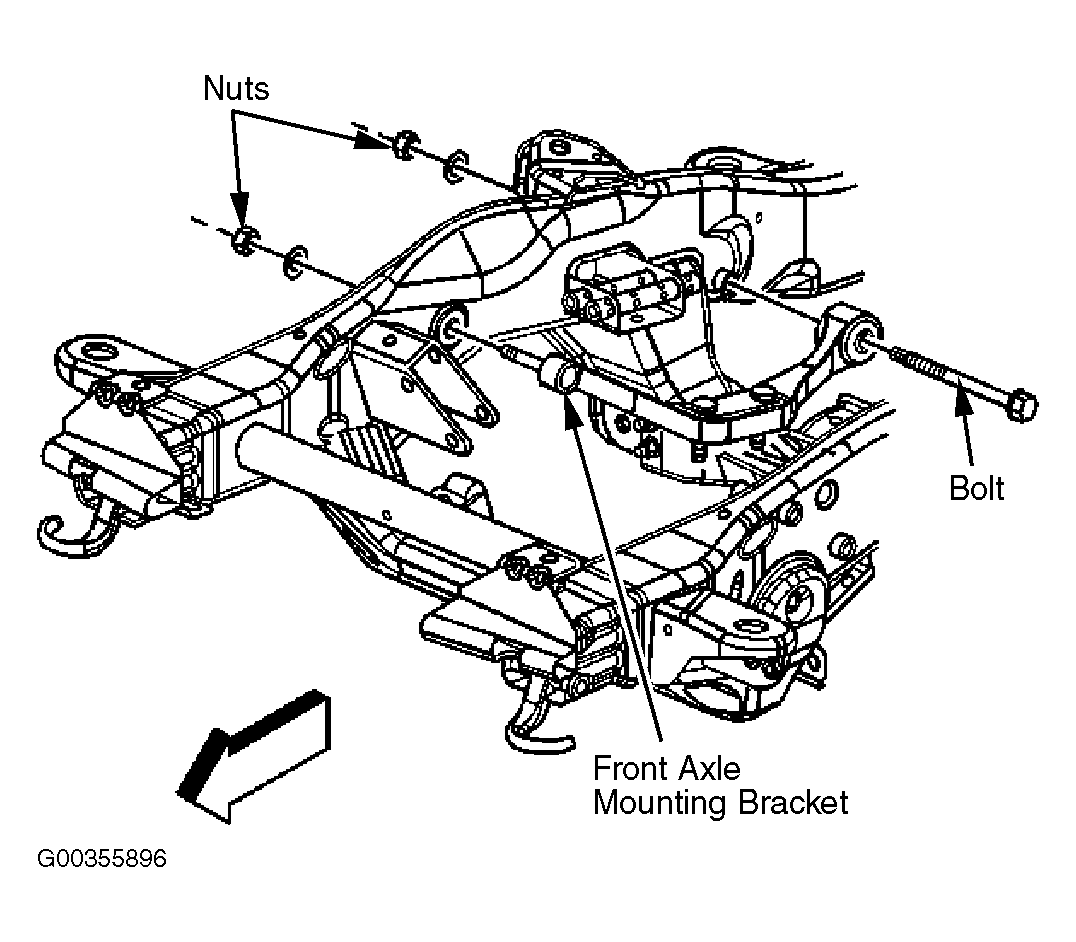

  5. Remove the front axle mounting bracket nut. See Figure .
    6. NOTE: Do not remove the bolt.
  6. Reposition the front axle mounting bracket bolt until the bolt tip is flush with the support bushing.
  7. Remove the starter bolts. See Fig 3 .
  8. Slide the starter forward until the starter clears the transmission.
  9. Remove the starter lead nut. See Fig 4 .
  10. Remove the starter lead from the starter.
  11. Remove the positive cable nut. See Fig 5 .
  12. Remove the positive cable from the starter.
  13. If necessary, remove the starter heat shield bolts, nut, and shield. See Fig 6 .

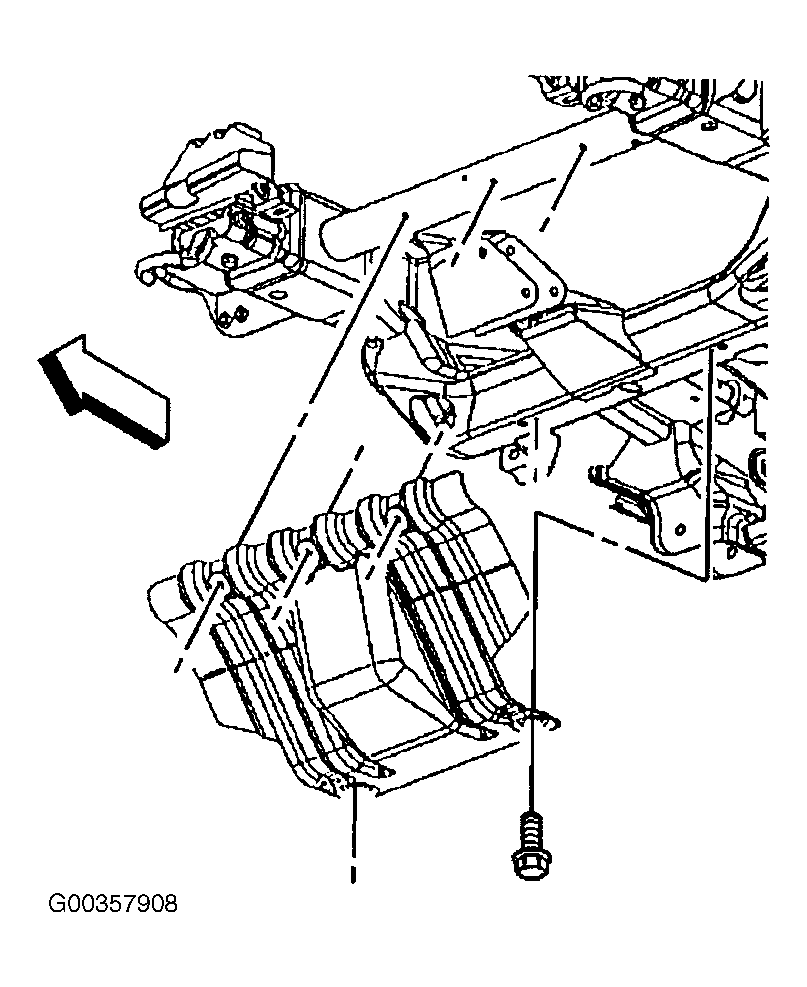

Fig 1: Installing Engine Shield & Bolts
G00357908Courtesy of GENERAL MOTORS CORP.

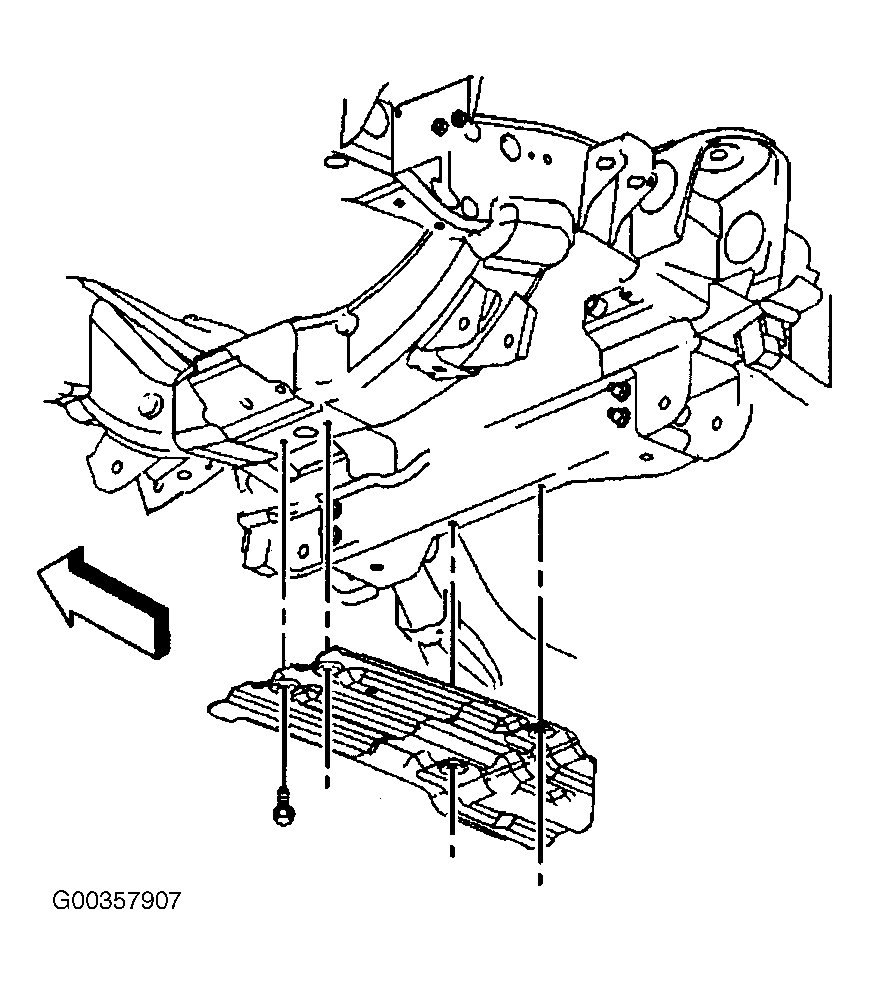

Fig 2: Installing Oil Pan Skid Plate Bolts
G00357907Courtesy of GENERAL MOTORS CORP.
Fig 3: Removing Starter Bolts
G00357922Courtesy of GENERAL MOTORS CORP.

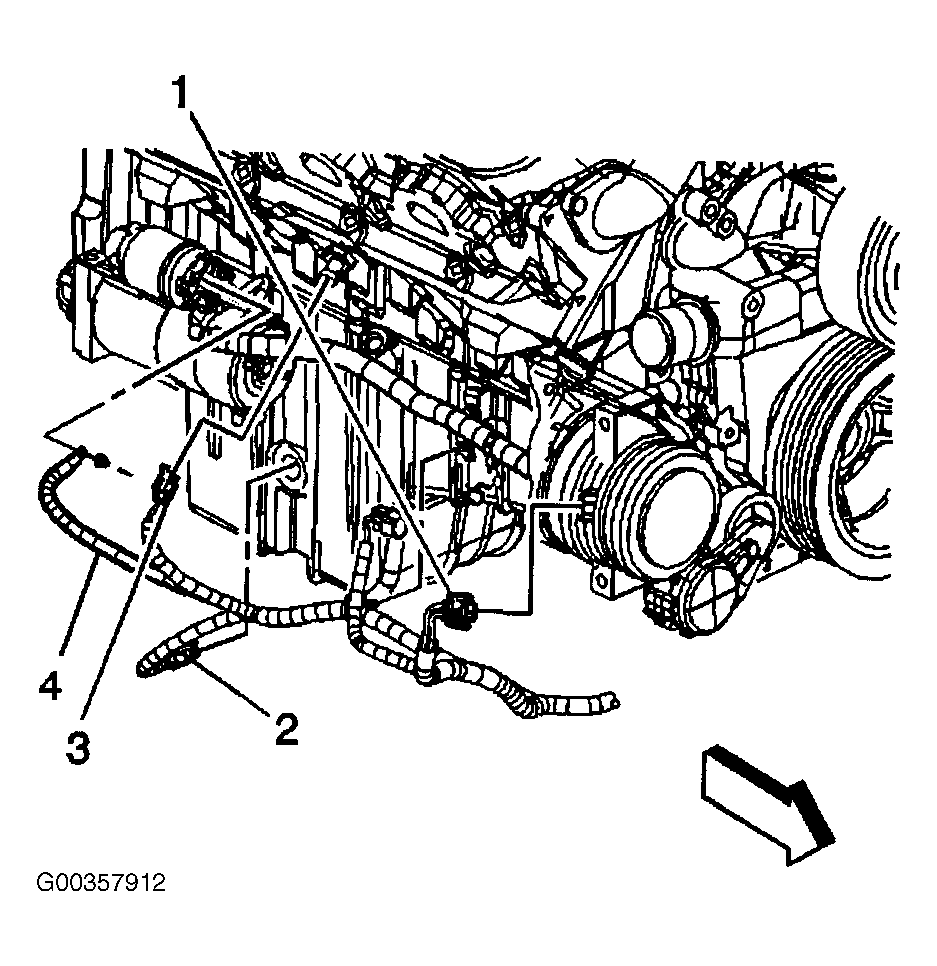

Fig 4: Removing Starter Lead Nut
G00357912Courtesy of GENERAL MOTORS CORP.

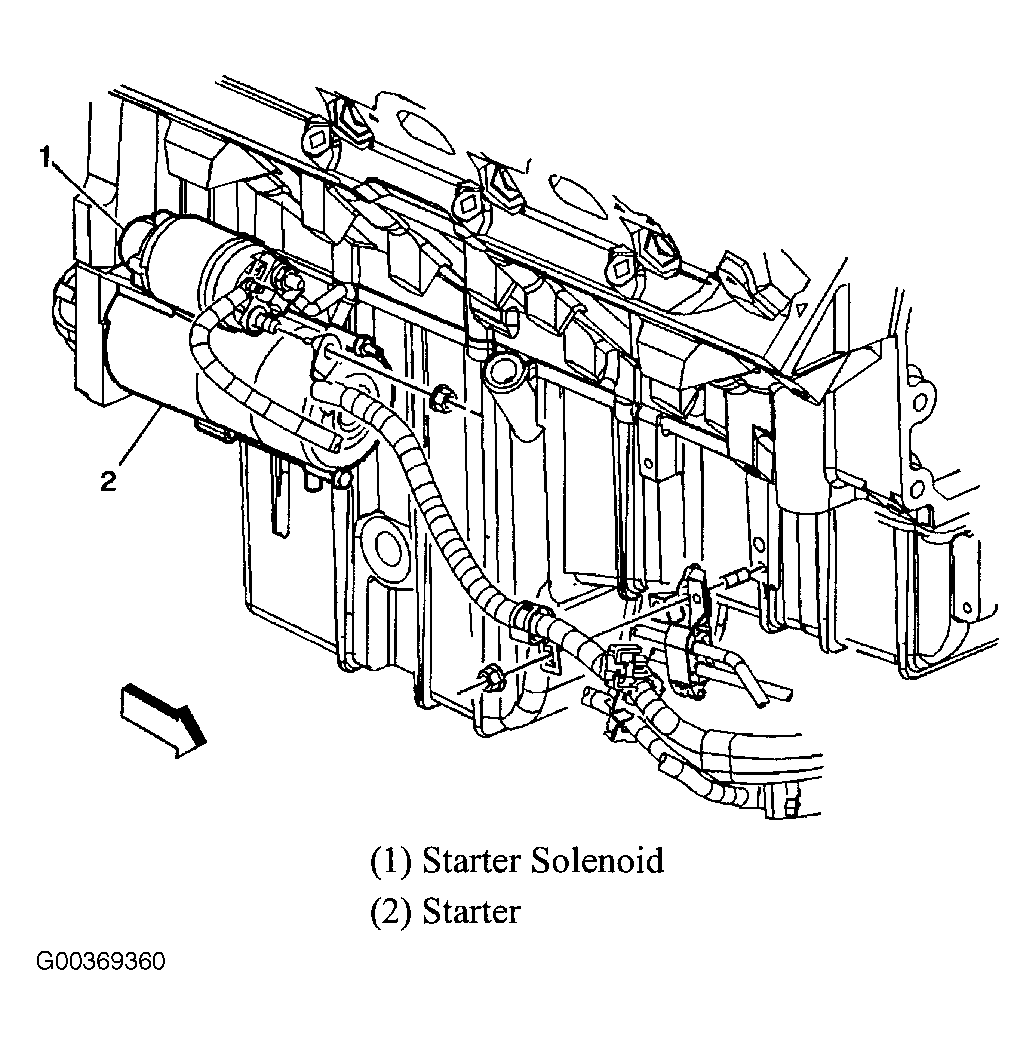

Fig 5: Locating Starter Motor
G00369360Courtesy of GENERAL MOTORS CORP.

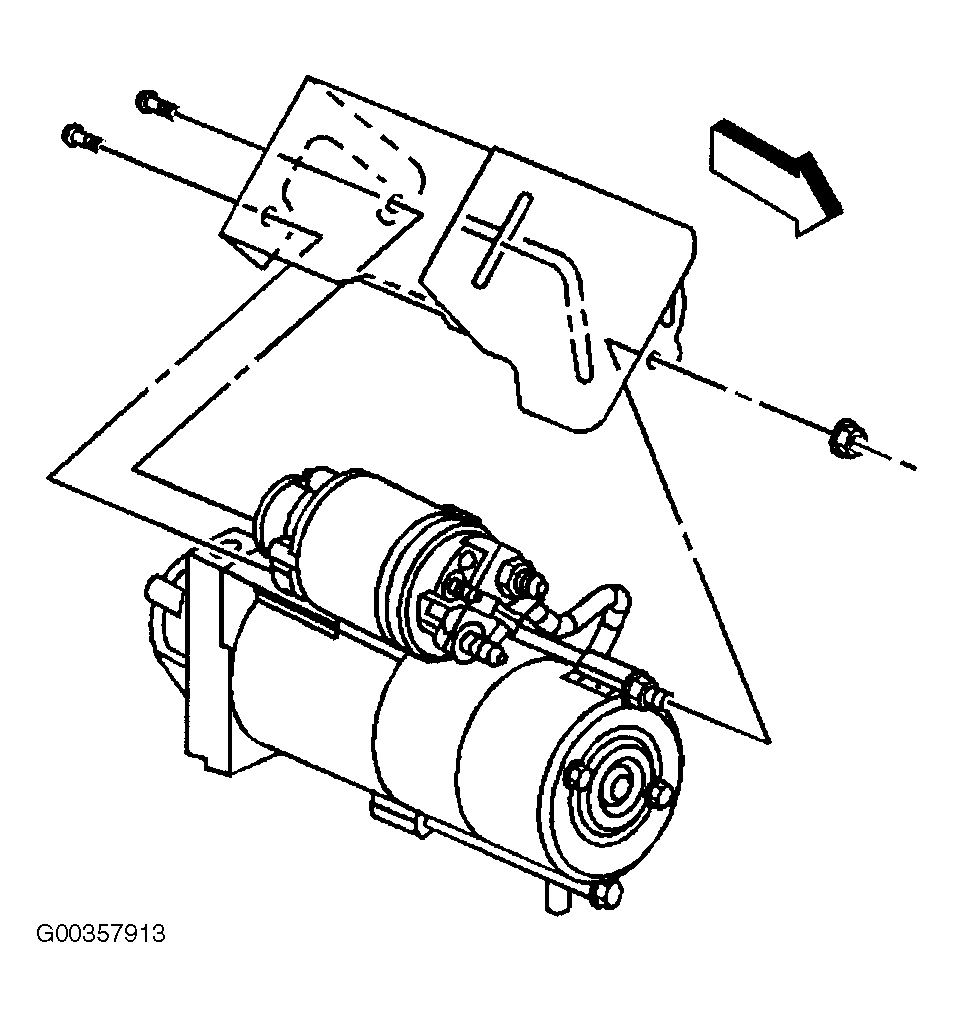

Fig 6: Removing Starter Heat Shield
G00357913Courtesy of GENERAL MOTORS CORP.
