Installation (4.3L Engine)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, and 2002 Chevrolet Tahoe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install starter to vehicle. See Figure .
  2. Install harness to starter.
  3. Install starter solenoid nut. Tighten starter solenoid nut to specification. See TORQUE SPECIFICATIONS  .
  4. Install positive cable to starter.
  5. Install starter lead nut. Tighten starter lead nut to specification. See TORQUE SPECIFICATIONS  .

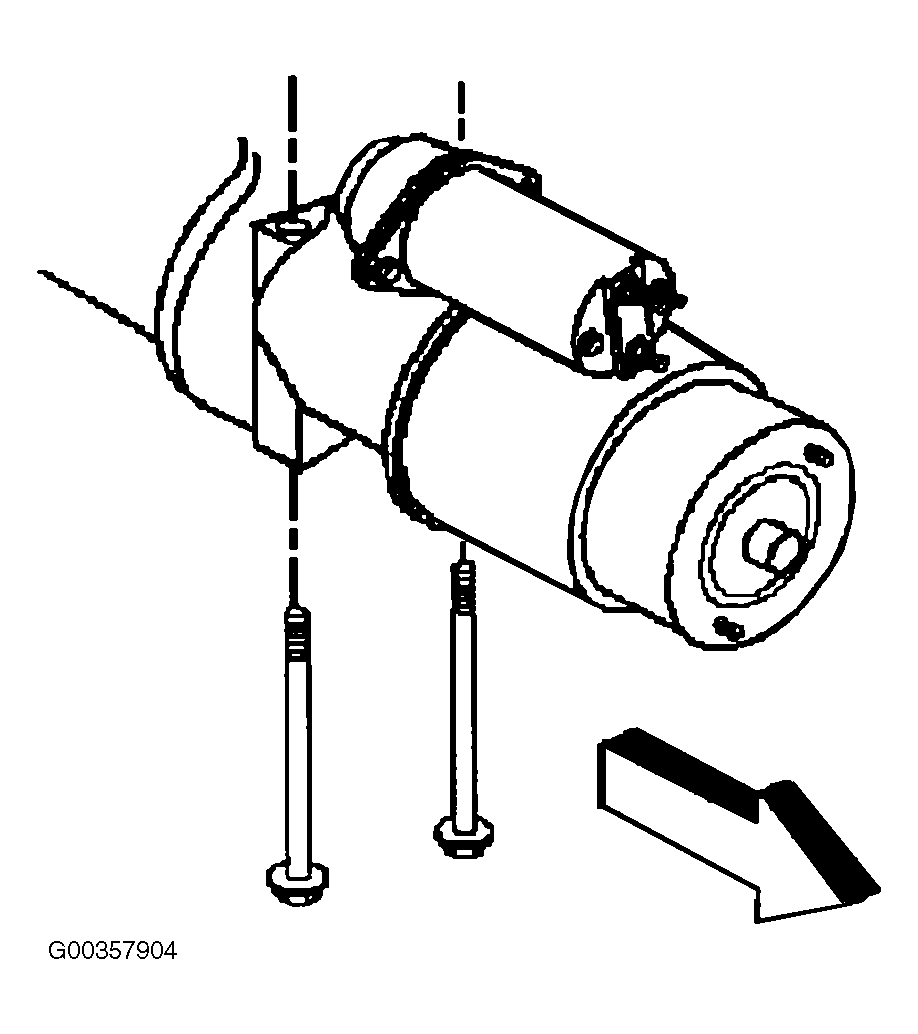

  6. Install starter motor bolts. See Figure . Tighten starter motor bolts to specification. See TORQUE SPECIFICATIONS  .
  7. Lower the vehicle.
    8. NOTE: Clean any existing corrosion from battery terminal bolt flange and battery cable end.

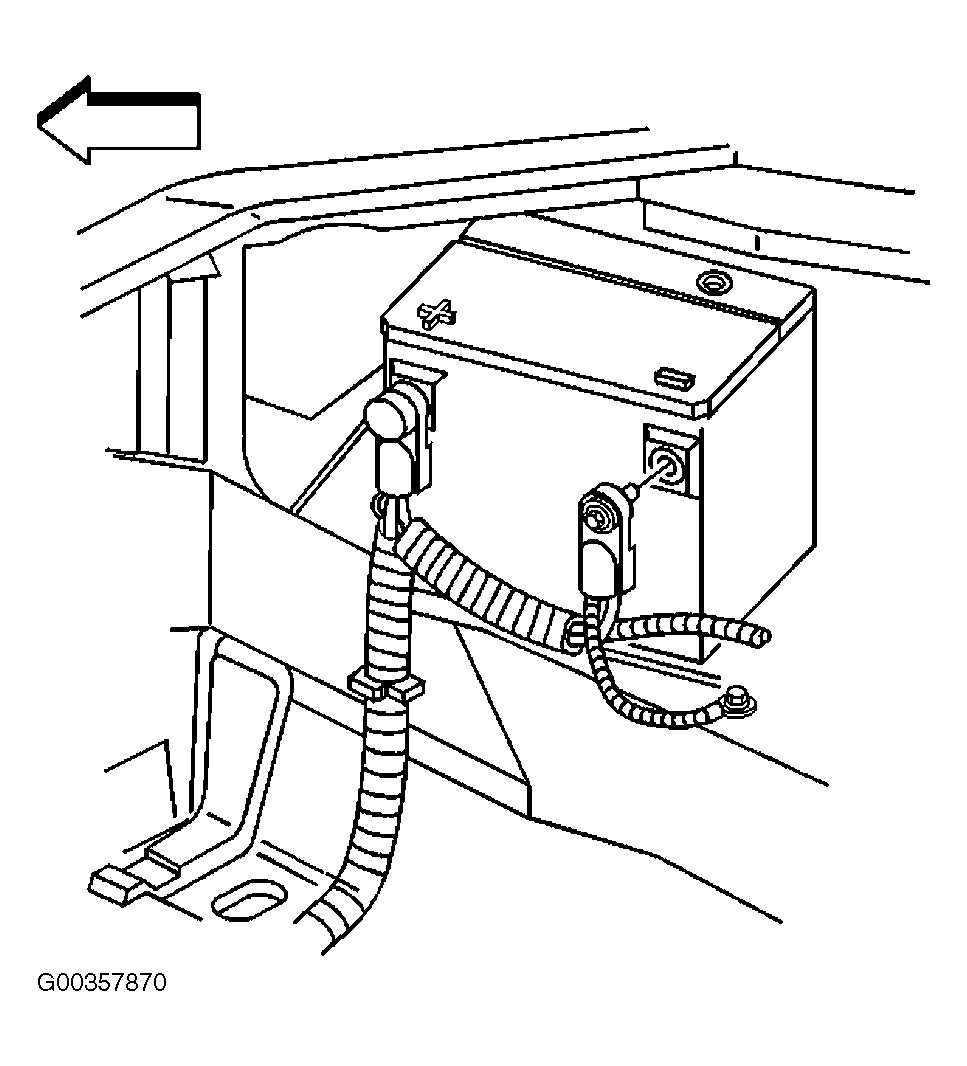

  8. Connect negative battery cable. See Figure . Tighten battery terminal bolt to specification. See TORQUE SPECIFICATIONS  .
