Starter Solenoid (6.6L Engine): Removal

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, and 2002 Chevrolet Tahoe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the starter motor. See STARTER  .
  2. Reposition the M-terminal stud weather cover. See Fig 1 .
  3. Clean the epoxy coating from the M-terminal stud.
  4. Loosen the M-terminal stud nut. See Fig 2 .
  5. Remove the cable from the M-terminal stud.
  6. Remove the solenoid bolts. See Fig 3 .
  7. Separate the solenoid from the housing and unhook the solenoid plunger from the drive gear lever. See Fig 4 .
  8. Note that the spring is positioned against the drive gear lever and the drive gear lever is placed inside the solenoid plunger loop. See Fig 5 .
  9. Remove the solenoid housing. See Fig 6 .
  10. If necessary, remove the solenoid plunger and spring. See Fig 7 .
Fig 1: Repositioning M-Terminal Stud Weather Cover
G00357914Courtesy of GENERAL MOTORS CORP.
Fig 2: Loosening M-Terminal Stud Nut
G00357915Courtesy of GENERAL MOTORS CORP.
Fig 3: Removing Solenoid Bolts
G00357916Courtesy of GENERAL MOTORS CORP.
Fig 4: Unhooking Solenoid Plunger
G00357917Courtesy of GENERAL MOTORS CORP.

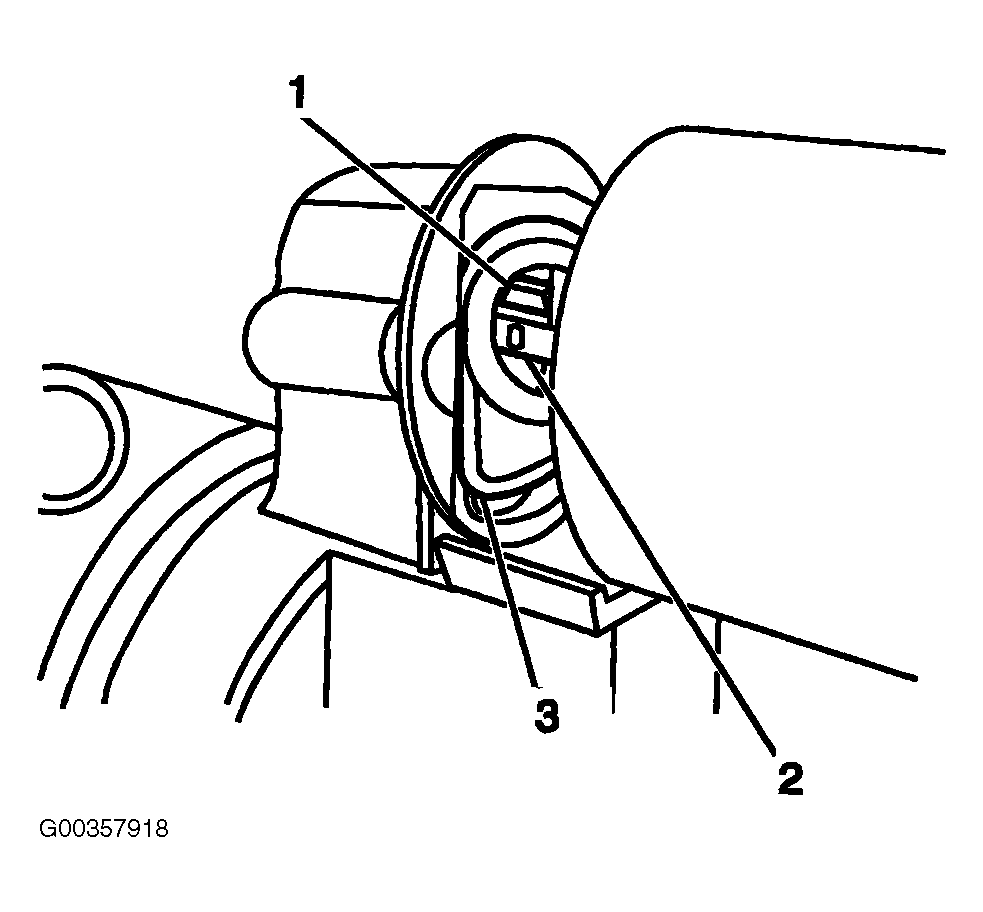

Fig 5: Noting Spring, Lever & Loop Positioning
G00357918Courtesy of GENERAL MOTORS CORP.

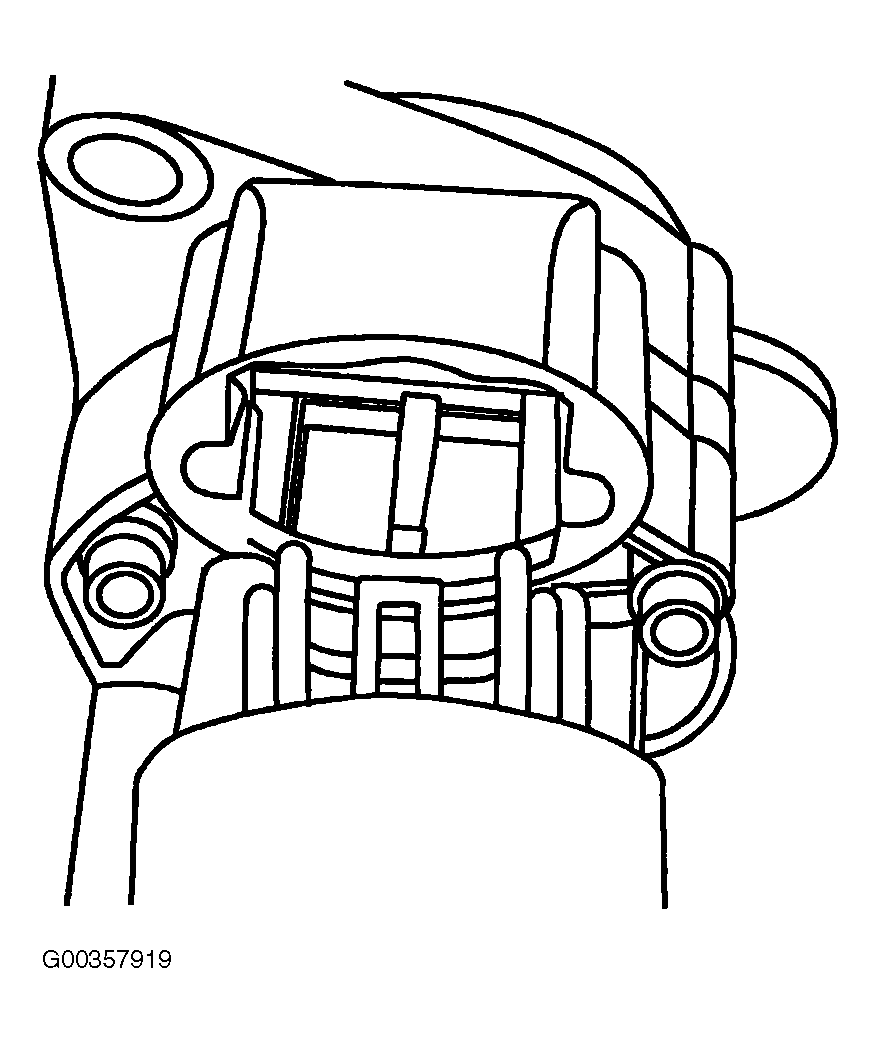

Fig 6: Removing Solenoid Housing
G00357919Courtesy of GENERAL MOTORS CORP.
Fig 7: Removing Solenoid Plunger & Spring
G00357920Courtesy of GENERAL MOTORS CORP.
