Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the knee bolster trim panel to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws that retain the knee bolster trim panel to the instrument panel.

    Tighten

    • Tighten the TORX screws to 9 N.m (80 lb in).
    • Tighten the hex head screws to 1.9 N.m (17 lb in).

  3. Install the screw that retains the courtesy lamp to the knee bolster. Refer to COURTESY LAMP REPLACEMENT -- INSTRUMENT PANEL (LOWER) in Lighting Systems.
  4. Install the park brake release cable to the park brake lever. Refer to PARK BRAKE CABLE -- FRONT in Park Brake.
  5. Install the lower instrument panel sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) LOWER .
  6. Install the left-side instrument panel sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT .

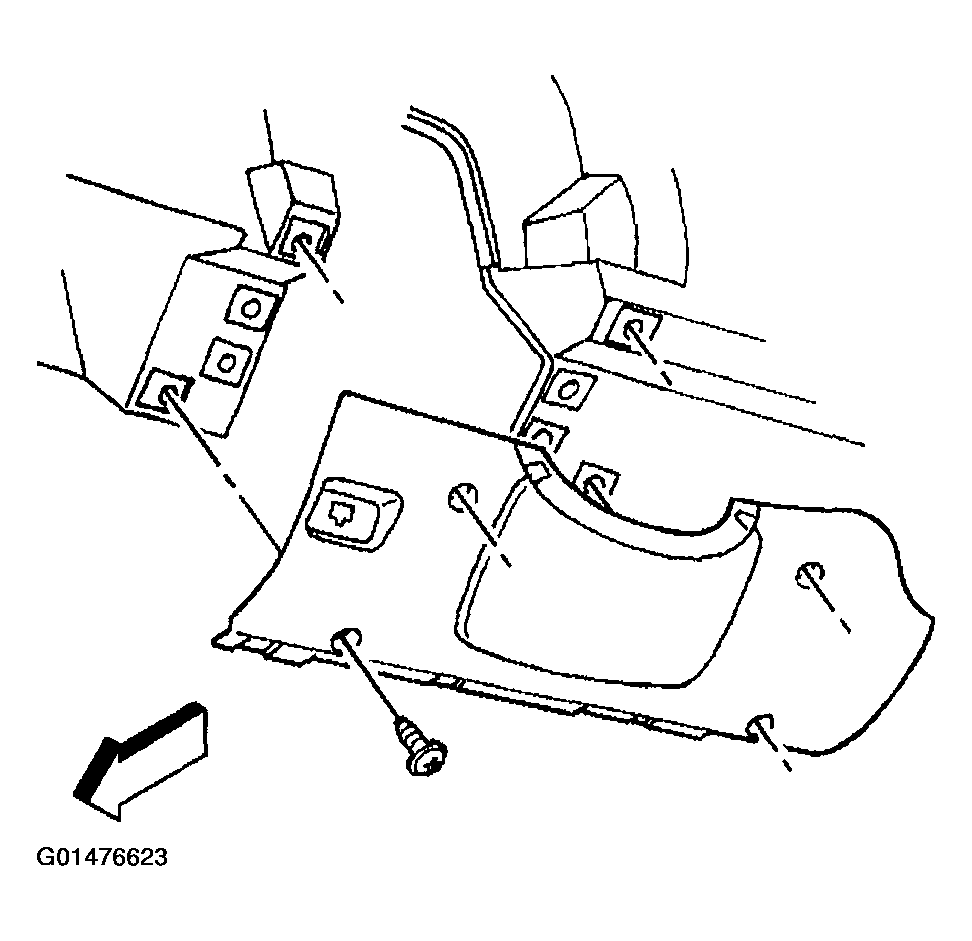

    Fig 1: Installing Knee Bolster Trim Panel To Instrument Panel Retaining Screws
    G01476623Courtesy of GENERAL MOTORS CORP.
