Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connections as needed.
  2. Insert the mounting tabs into the roof panel and push upward on the rear of the console in order to install the console to the roof.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the screw at the front of the console that retains the console to the roof.

    Tighten

    Tighten the screw to 1.9 N.m (17 Ib. in).

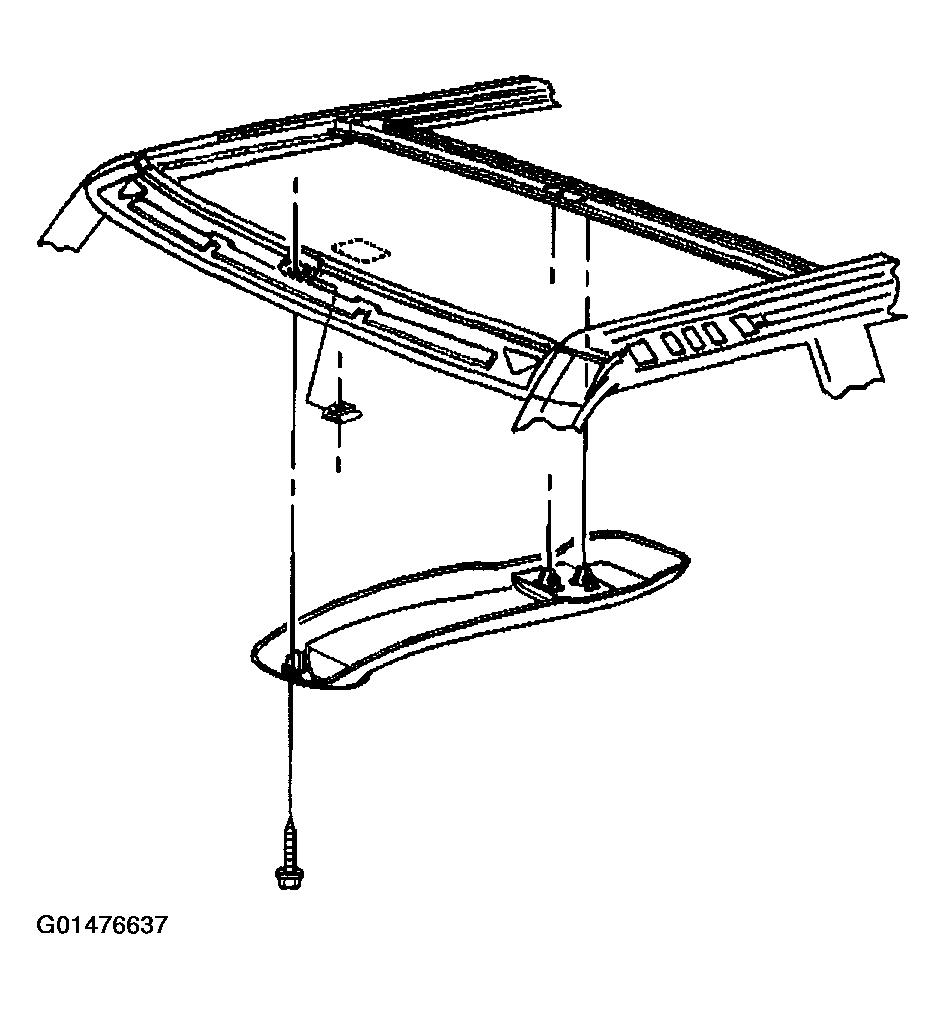

    Fig 1: Installing Console To Roof Retaining Screws
    G01476637Courtesy of GENERAL MOTORS CORP.
