Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the shift control lever. Refer to CONTROL LEVER AND/OR BOOT REPLACEMENT in Manual Transmission - NV 1500 or to CONTROL LEVER AND/OR BOOT REPLACEMENT in Manual Transmission - NV 3500.
  2. Remove the cup holder insert.
  3. Remove the screws that retain the trim plate to the console.
  4. Remove the trim plate from the console.

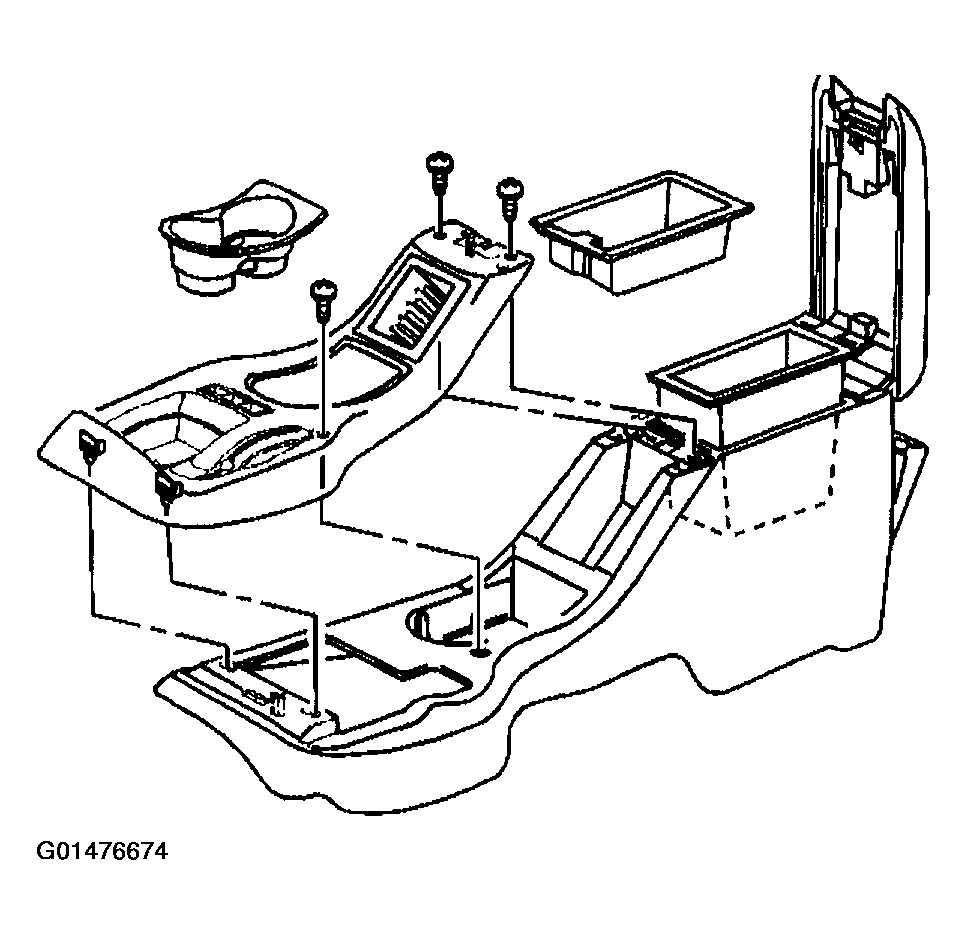

    Fig 1: Removing Trim Plate To Console Retaining Screws
    G01476674Courtesy of GENERAL MOTORS CORP.
  5. Open the storage compartment cover.
  6. Remove the storage compartment.

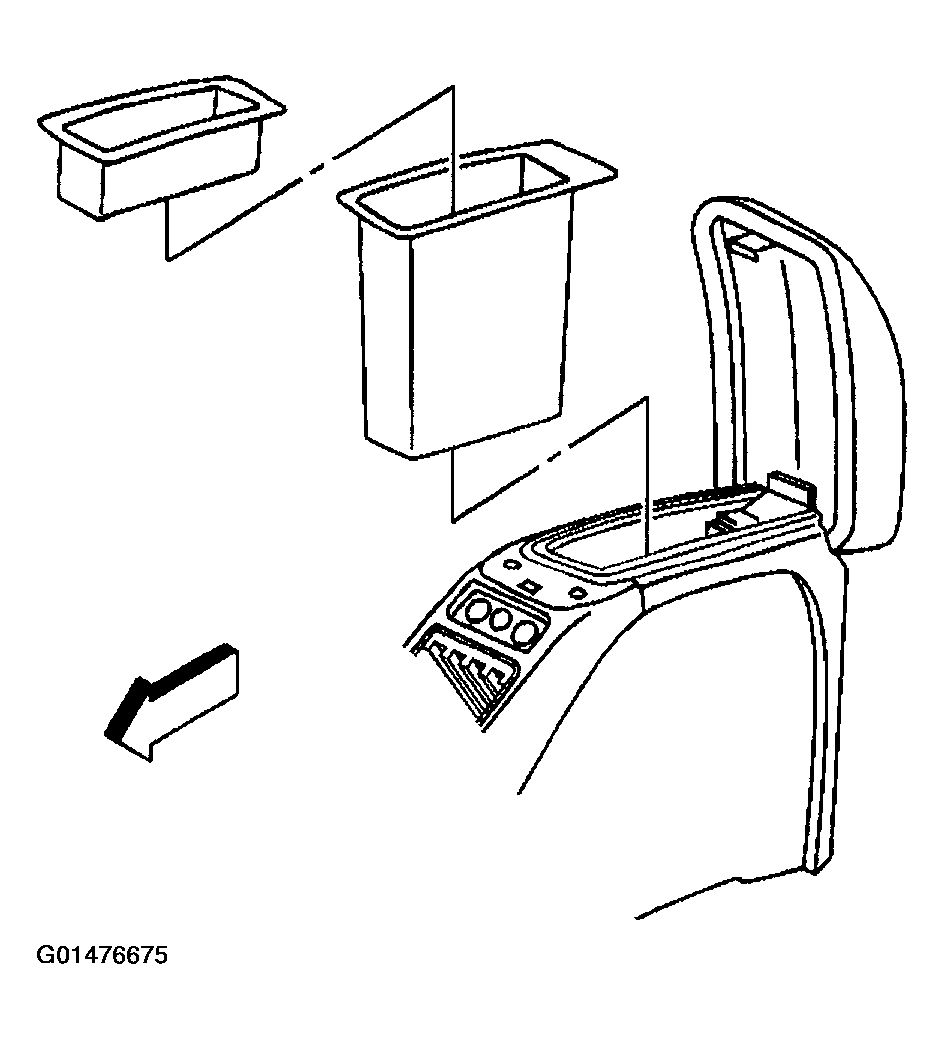

    Fig 2: Storage Compartment
    G01476675Courtesy of GENERAL MOTORS CORP.
  7. Remove the nuts that retain the console to the vehicle.
  8. Disconnect the electrical connector, if equipped.
  9. Remove the console from the vehicle.

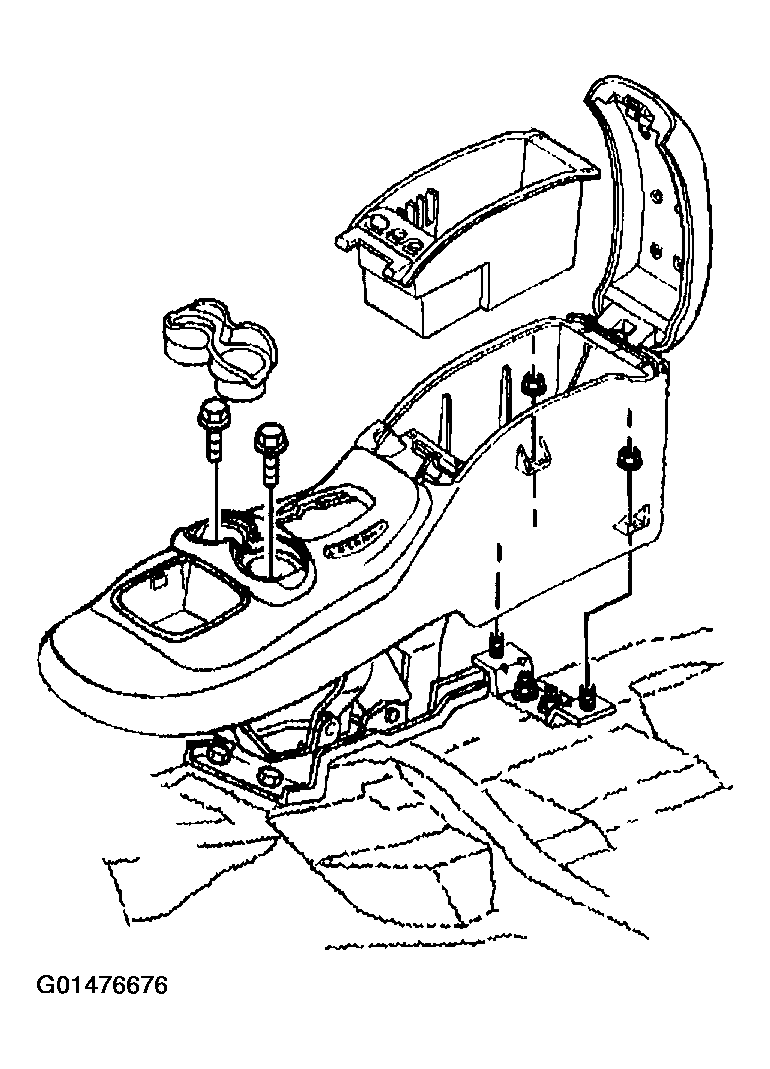

    Fig 3: Removing Console To Vehicle Retaining Nut
    G01476676Courtesy of GENERAL MOTORS CORP.
