Tachometer Inaccurate Or Inoperative

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

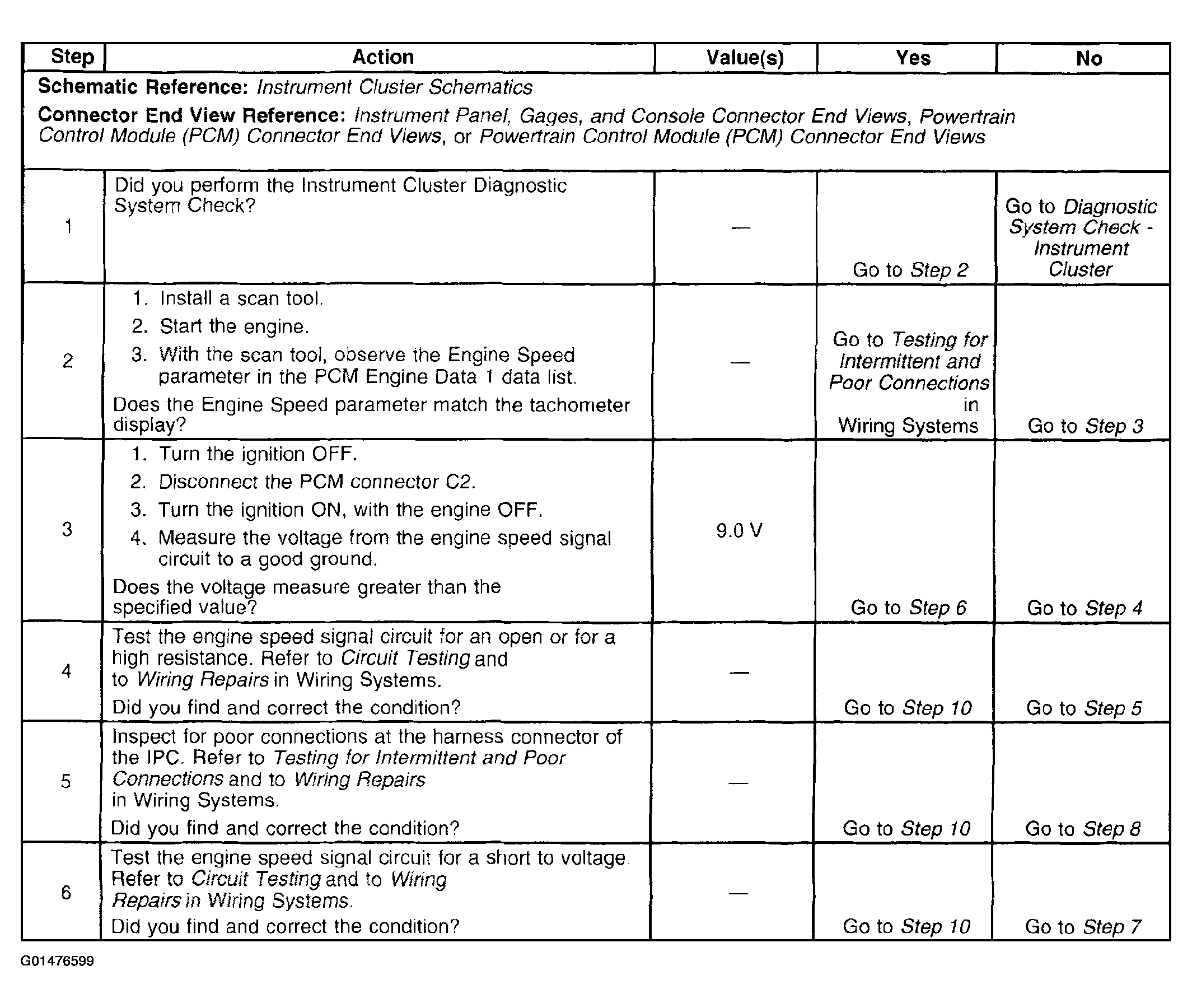

Fig 1: Tachometer Inaccurate Or Inoperative (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

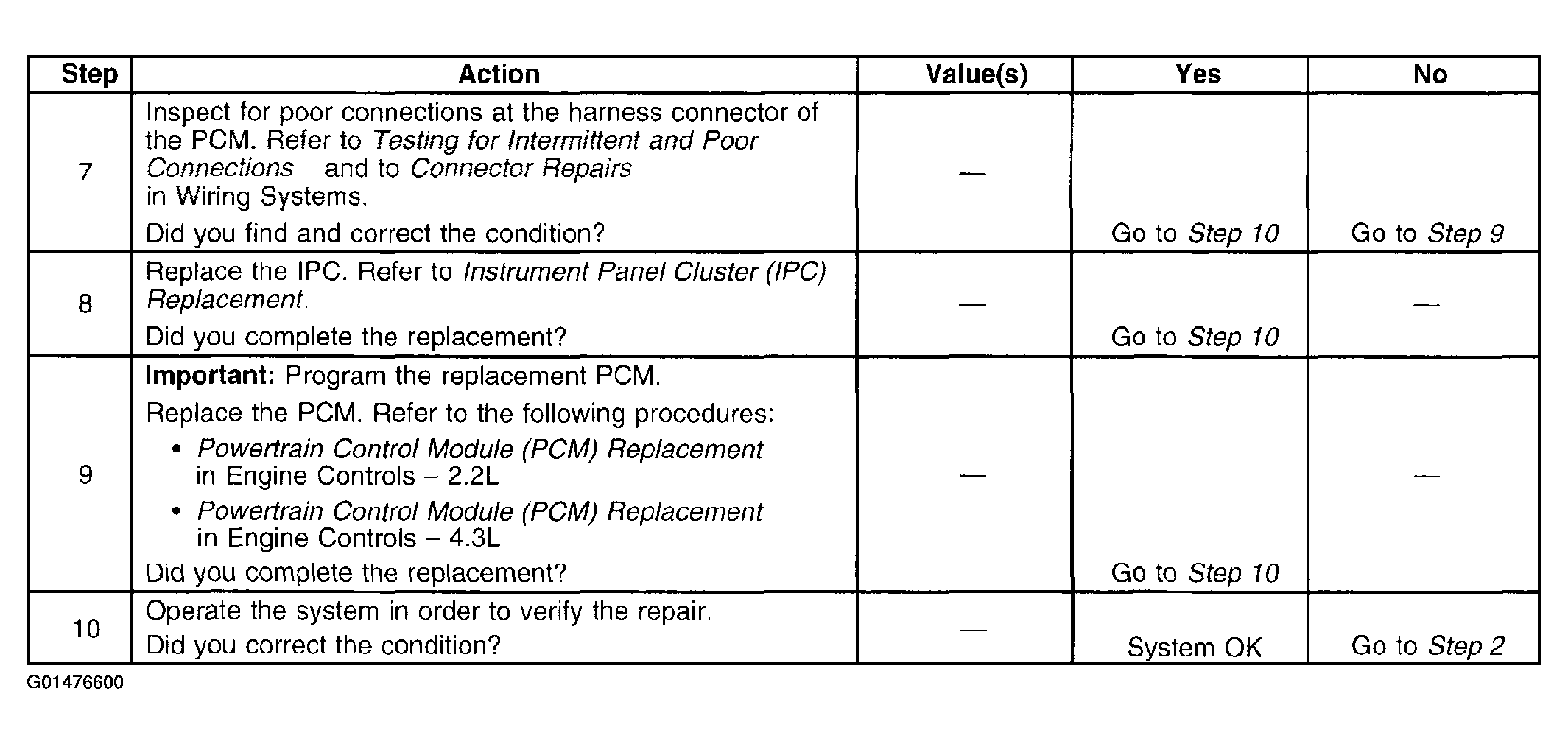

Fig 2: Tachometer Inaccurate Or Inoperative (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
