Test Description

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 2. Tests for the proper operation of the circuit in the low voltage range.

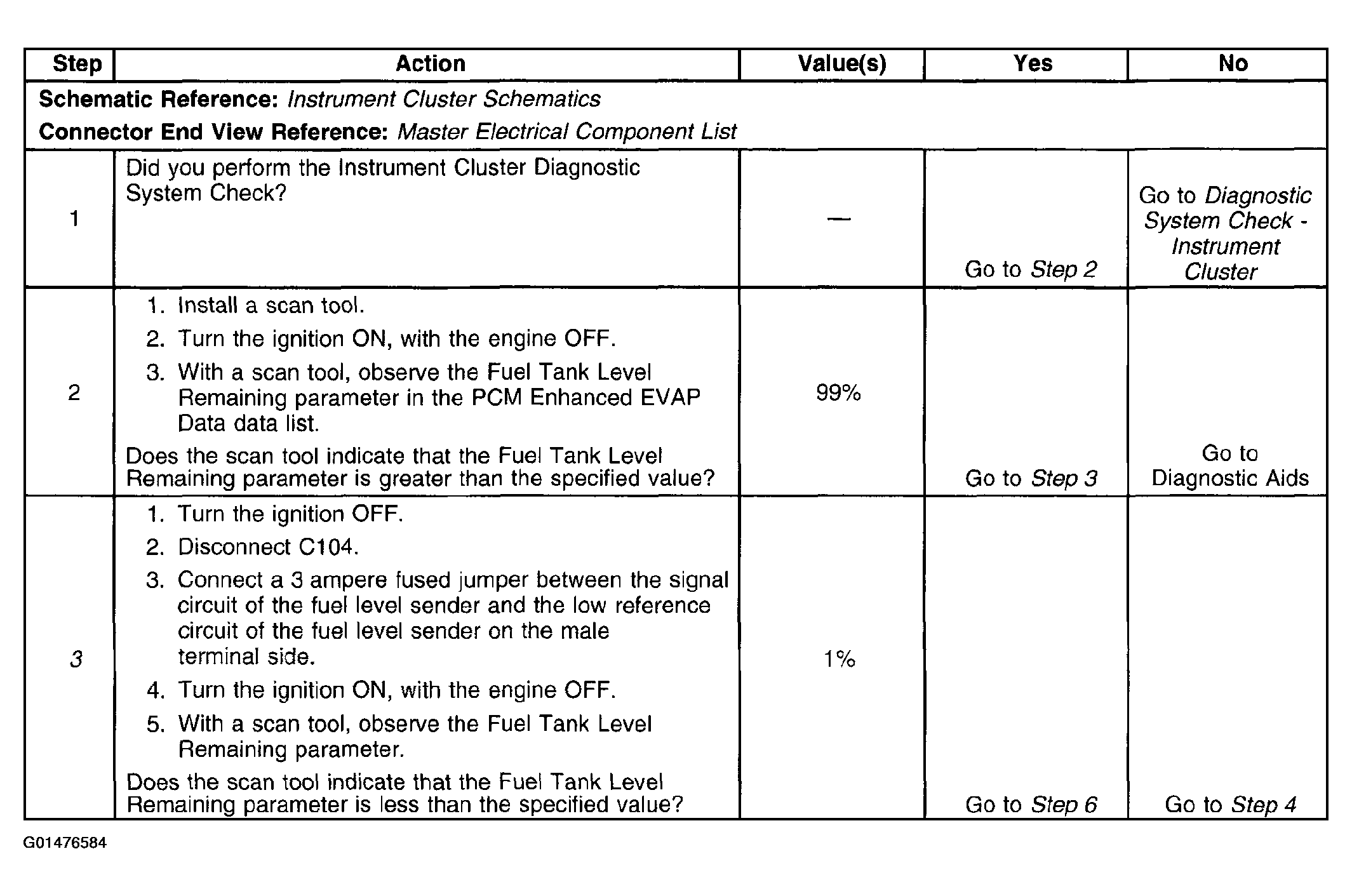

    Fig 1: DTC P0463 (1 Of 2)
    G01476584Courtesy of GENERAL MOTORS CORP.

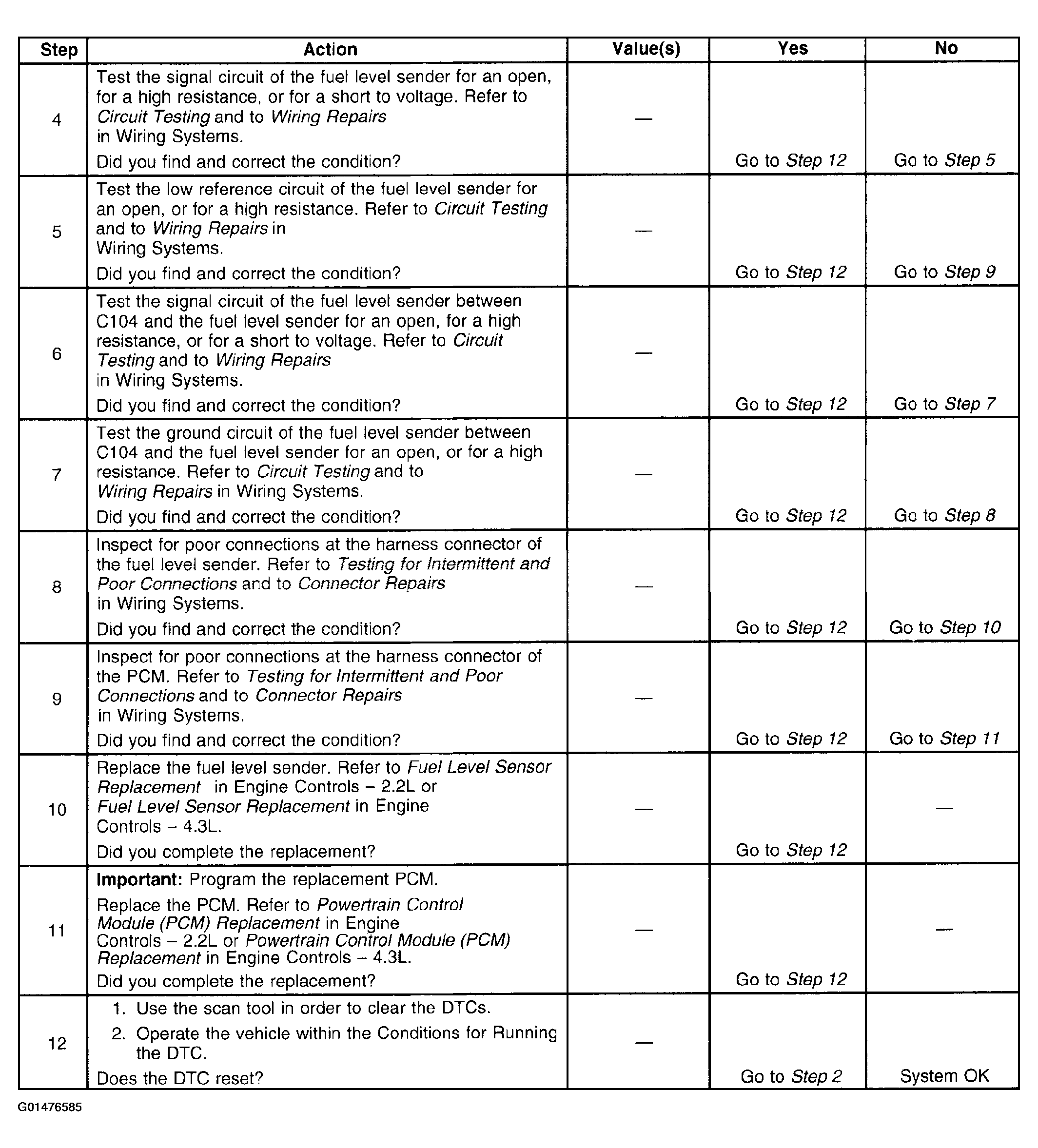

    Fig 2: DTC P0463 (2 Of 2)
    G01476585Courtesy of GENERAL MOTORS CORP.
