Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector.
  2. Install the radio rear speaker to the body side inner panel.
  3. Install the speaker retaining rivets using J 34940.
  4. Install the rear body side trim panel. Refer to TRIM PANEL REPLACEMENT -- BODY SIDE (STANDARD CAB PICKUP) or TRIM PANEL REPLACEMENT -- BODY SIDE (EXTENDED CAB PICKUP) or TRIM PANEL REPLACEMENT -- BODY SIDE (2-DOOR UTILITY) or TRIM PANEL REPLACEMENT -- BODY SIDE (4-DOOR UTILITY) or TRIM PANEL REPLACEMENT -- BODY SIDE (CREW CAB) in Interior Trim.
  5. Inspect for proper circuit operation.

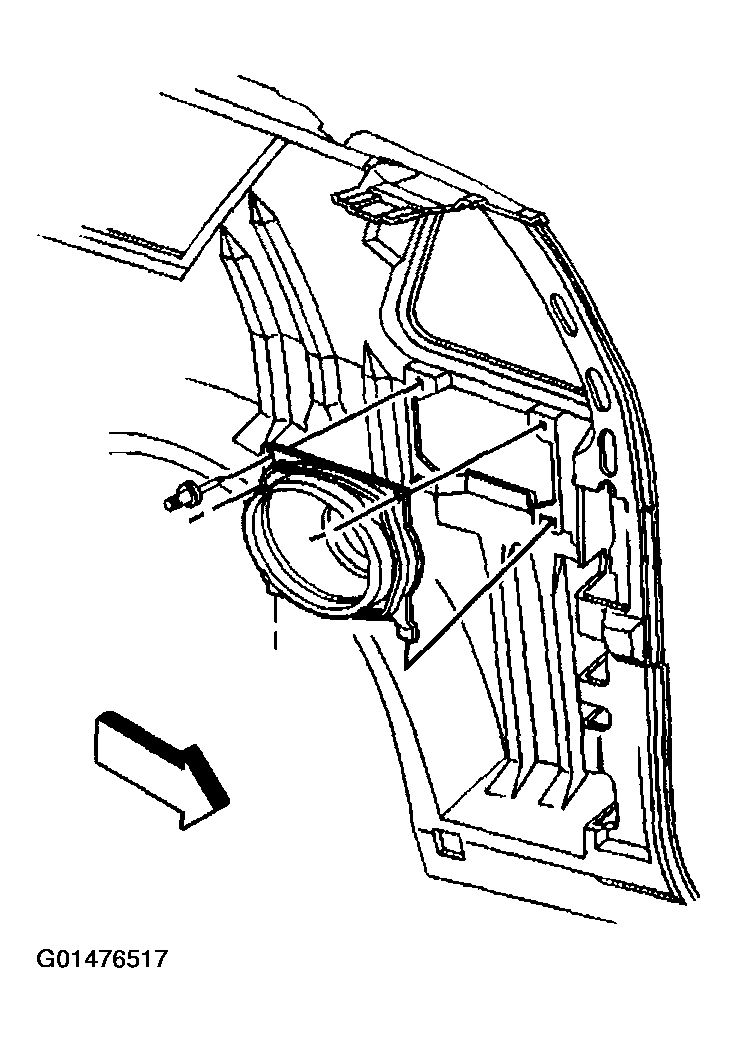

    Fig 1: Radio Rear Speaker Retaining Rivets
    G01476517Courtesy of GENERAL MOTORS CORP.
