Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear body side trim panel. Refer to TRIM PANEL REPLACEMENT -- BODY SIDE (STANDARD CAB PICKUP) or TRIM PANEL REPLACEMENT -- BODY SIDE (EXTENDED CAB PICKUP) or TRIM PANEL REPLACEMENT -- BODY SIDE (2-DOOR UTILITY) or TRIM PANEL REPLACEMENT -- BODY SIDE (4-DOOR UTILITY) or TRIM PANEL REPLACEMENT -- BODY SIDE (CREW CAB) in Interior Trim.
  2. Disconnect the electrical connectors.
  3. Remove the radio rear speaker nuts.
  4. Remove the rear speaker from the rear body side trim panel.

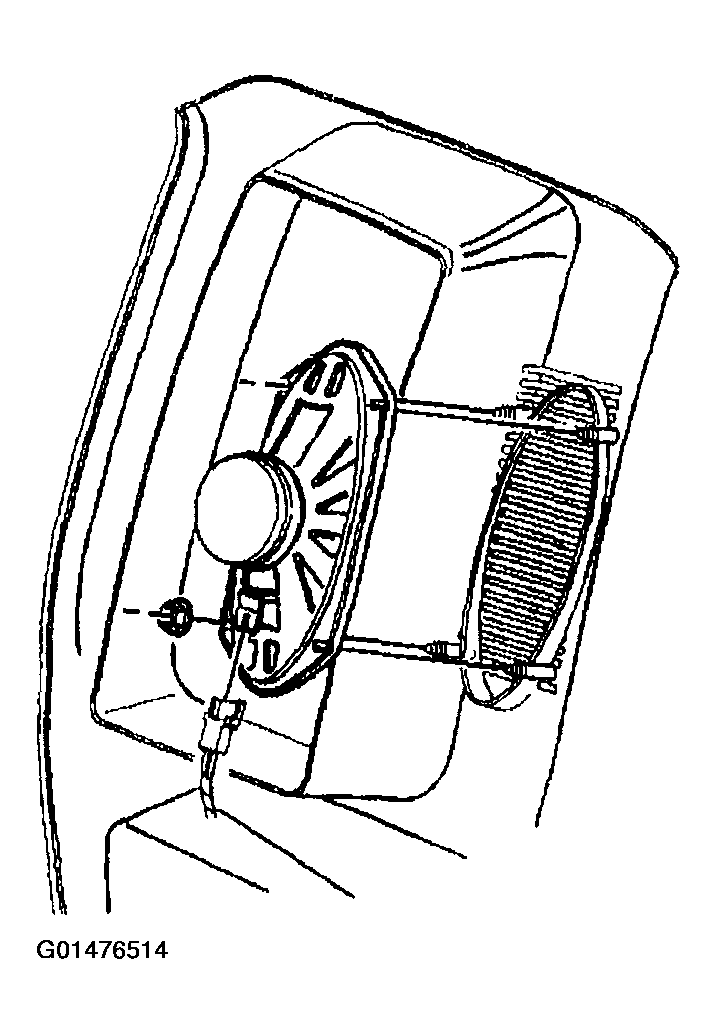

    Fig 1: Radio Rear Speaker Nuts
    G01476514Courtesy of GENERAL MOTORS CORP.
