Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the radio rear speaker to the rear body side trim panel.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the radio rear speaker nuts.

    Tighten

    Tighten the radio rear speaker nuts to 1.2 N.m (11 lb in).

  3. Connect the electrical connectors.
  4. Install the rear body side trim panel. Refer to TRIM PANEL REPLACEMENT -- BODY SIDE (STANDARD CAB PICKUP) or TRIM PANEL REPLACEMENT -- BODY SIDE (EXTENDED CAB PICKUP) or TRIM PANEL REPLACEMENT -- BODY SIDE (2-DOOR UTILITY) or TRIM PANEL REPLACEMENT -- BODY SIDE (4-DOOR UTILITY) or TRIM PANEL REPLACEMENT -- BODY SIDE (CREW CAB) in Interior Trim.
  5. Inspect for proper circuit operation.

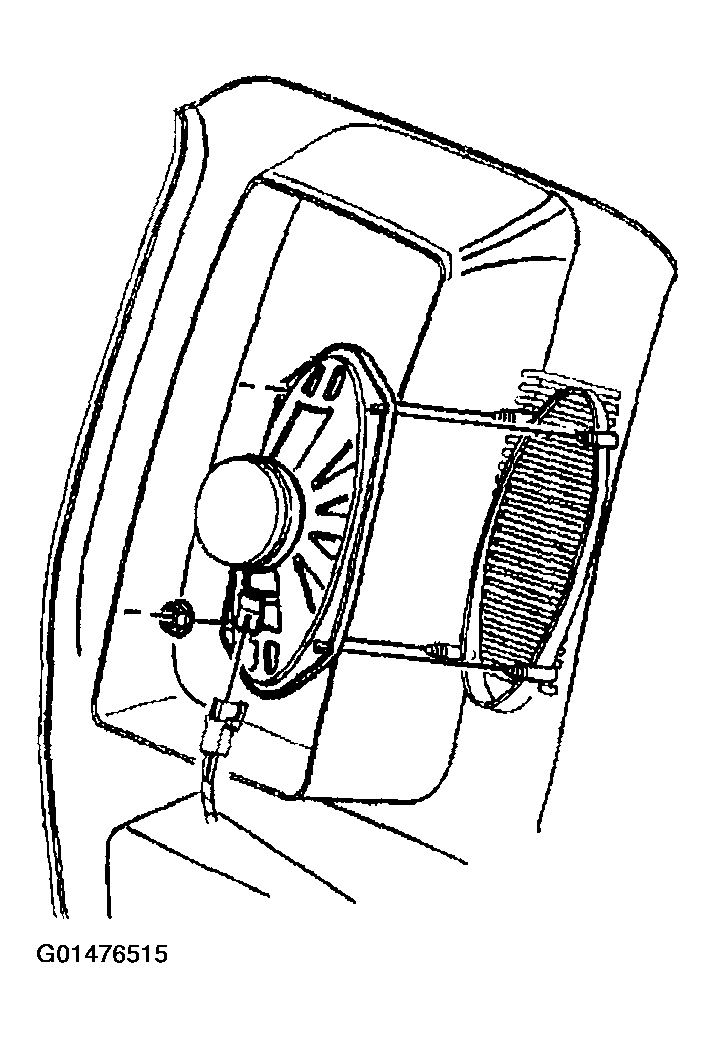

    Fig 1: Radio Rear Speaker Nuts
    G01476515Courtesy of GENERAL MOTORS CORP.
