Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front speaker grille screws.
  2. Remove the radio front speaker grille.
  3. Remove the DRL sensor from the right speaker grille, if equipped.
  4. Turn the DRL sensor counterclockwise 1/4 turn in order to remove.
  5. Remove the radio front speaker screws.
  6. Remove the radio front speaker.
  7. Disconnect the electrical connector.

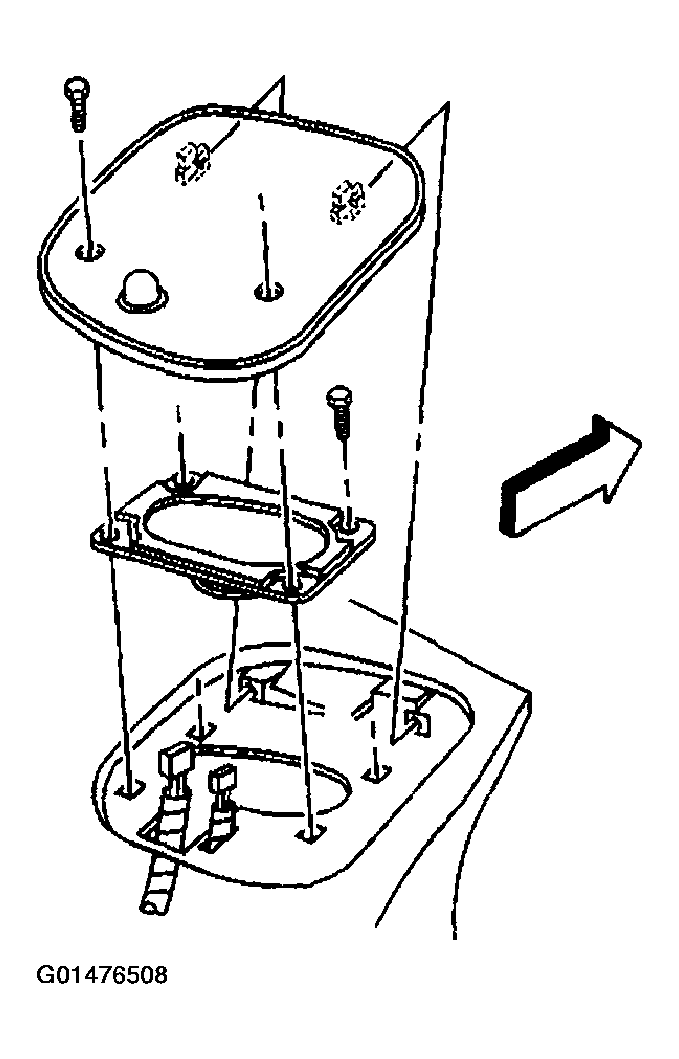

    Fig 1: Front Speaker Grille Screws
    G01476508Courtesy of GENERAL MOTORS CORP.
