Removal Procedure
WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Refer to BATTERY DISCONNECT CAUTION
in Cautions and Notices.
- Disconnect the battery negative cable.
- Remove the instrument panel accessory trim plate. Refer to TRIM PLATE REPLACEMENT -- INSTRUMENT PANEL (I/P) ACCESSORY in Instrument Panel, Gages and Console.

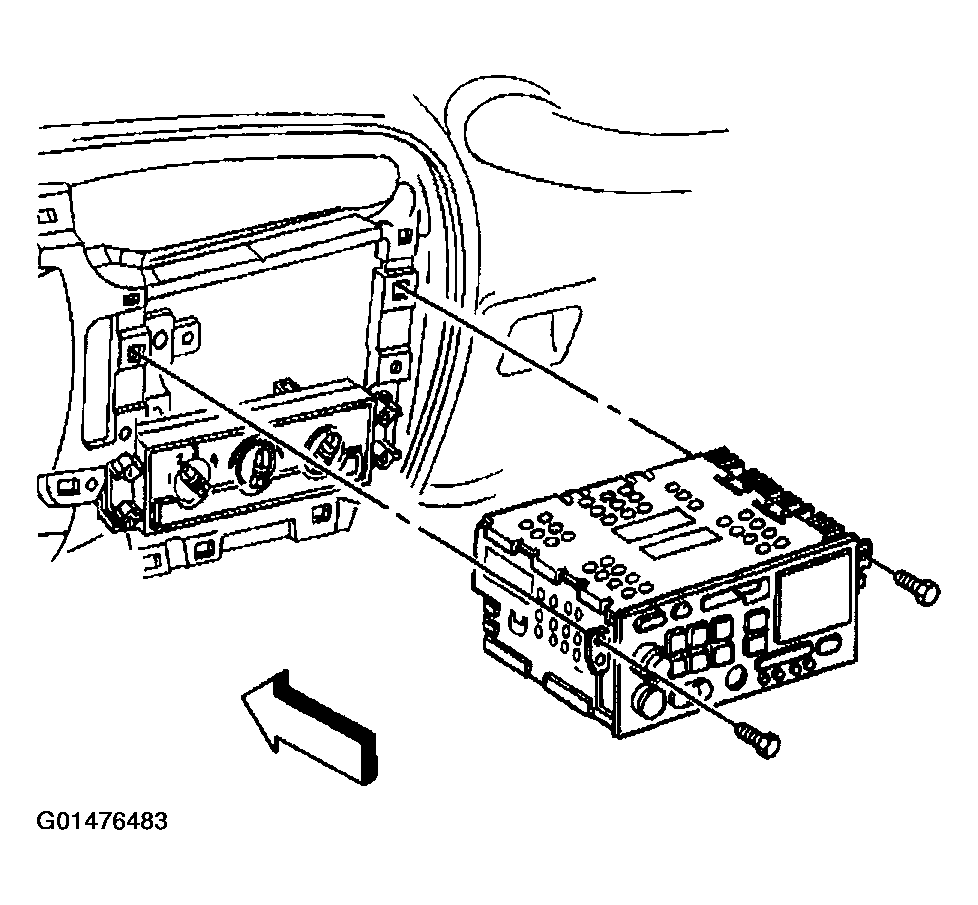

- Remove the radio mounting screws.
- Remove the radio.
- Disconnect the electrical connector and the antenna lead.
