Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the antenna mast to the antenna base.

Fig 1: Installing Antenna Mast To Antenna Base
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Screw the antenna mast to the antenna base.
Tighten

Tighten the antenna mast to 5 N.m (44 lb in).

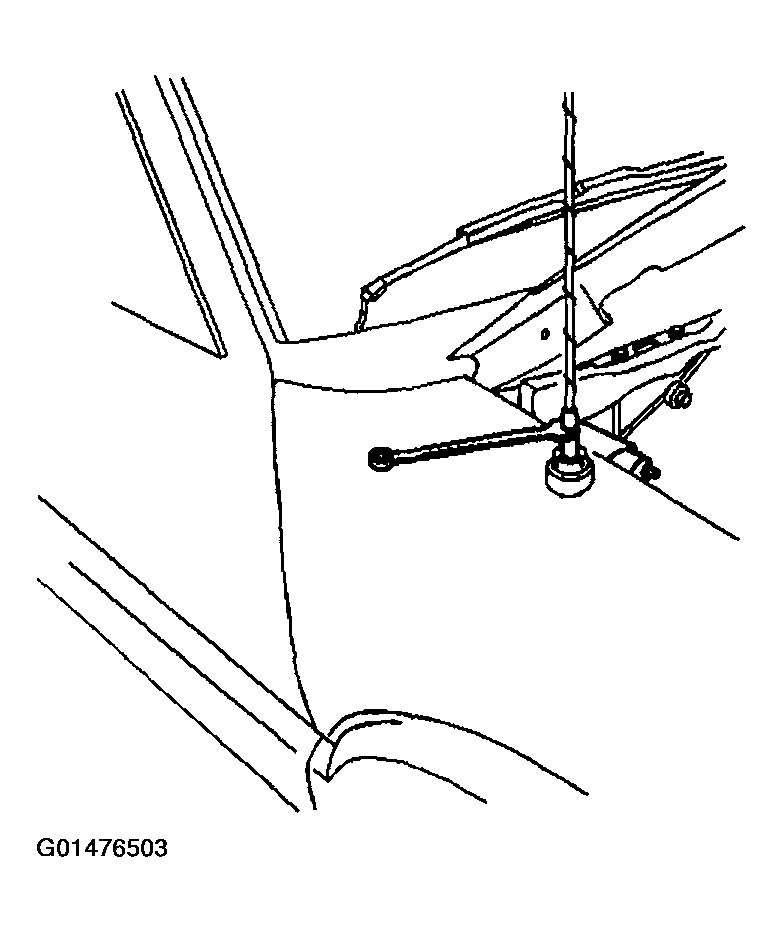

Fig 2: Screwing Antenna Mast To Antenna Base
Courtesy of GENERAL MOTORS CORP.
