Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the antenna mast. Refer to FIXED ANTENNA MAST REPLACEMENT .
Remove the radio antenna cable from the radio extension cable.
Remove the fender. Refer to FENDER REPLACEMENT -- FRONT in Body Front End.

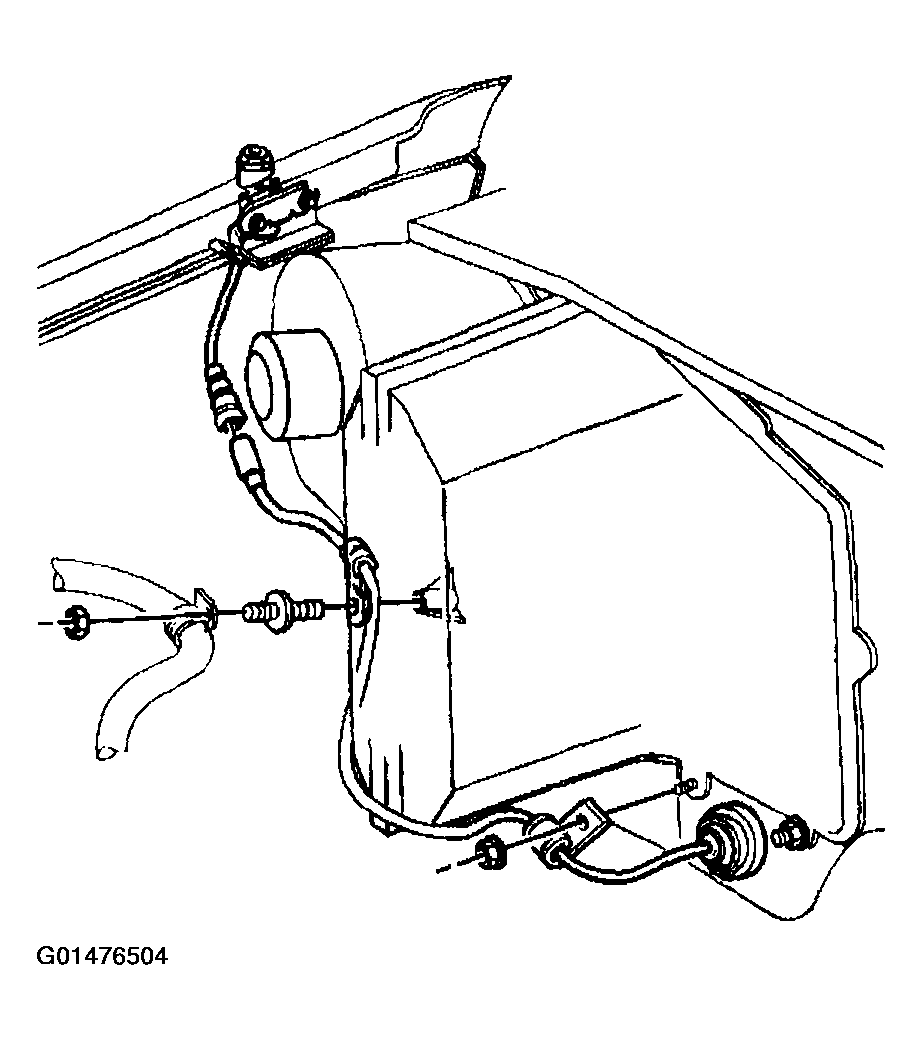

Fig 1: Removing Radio Antenna Cable From Radio Extension Cable
Courtesy of GENERAL MOTORS CORP.
Remove the radio antenna cable nut.
Remove the radio antenna bezel.
Remove the radio antenna cable screws.
Remove the radio antenna cable.

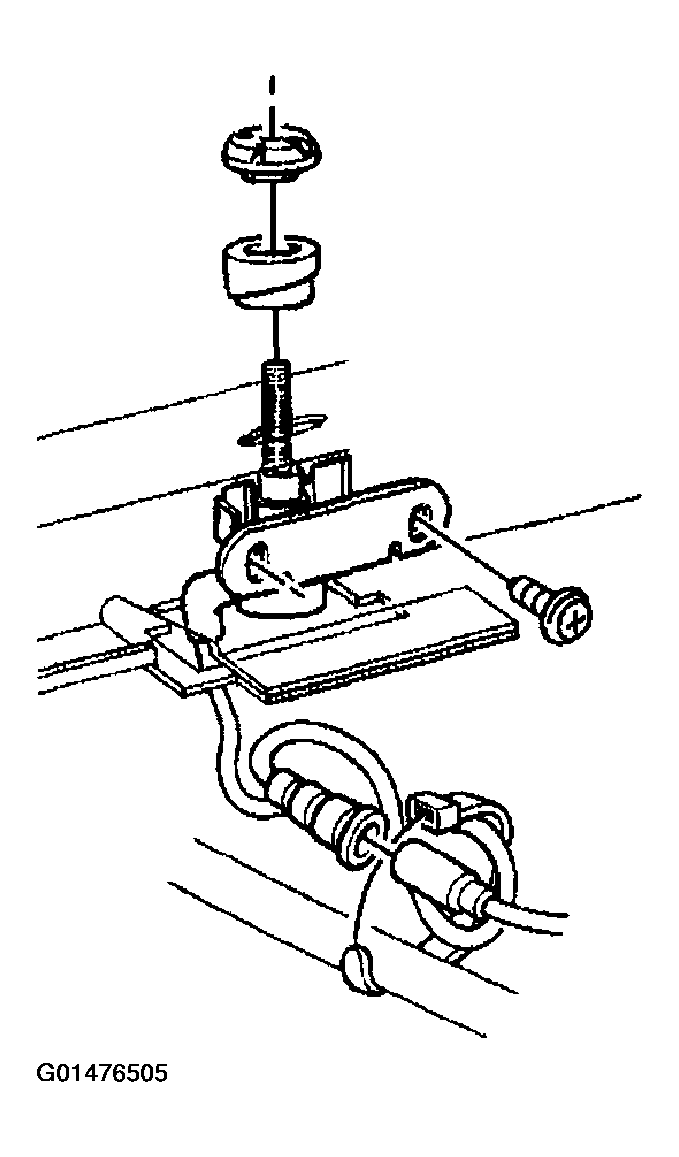

Fig 2: Radio Antenna Cable Screws
Courtesy of GENERAL MOTORS CORP.
