Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to BATTERY DISCONNECT CAUTION in Cautions and Notices.
  1. Remove the negative battery cable.
  2. Remove the rear console trim panel retaining screw.

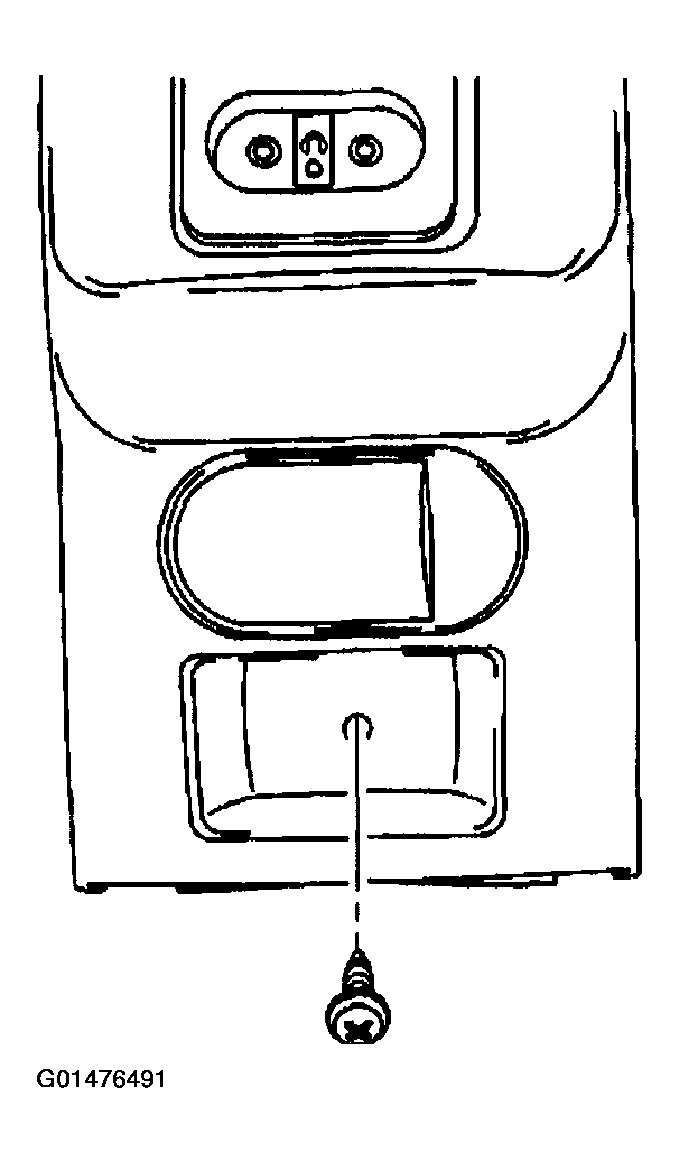

    Fig 1: Rear Console Trim Panel Retaining Screw
    G01476491Courtesy of GENERAL MOTORS CORP.
  3. Remove the rear console trim panel from the console by carefully prying outward with a flat-bladed tool.
  4. Remove the console wiring harness connector from the rear seat audio control panel.
  5. Remove the rear seat audio control panel from the rear console trim panel by compressing the retaining tabs and carefully pushing outward.

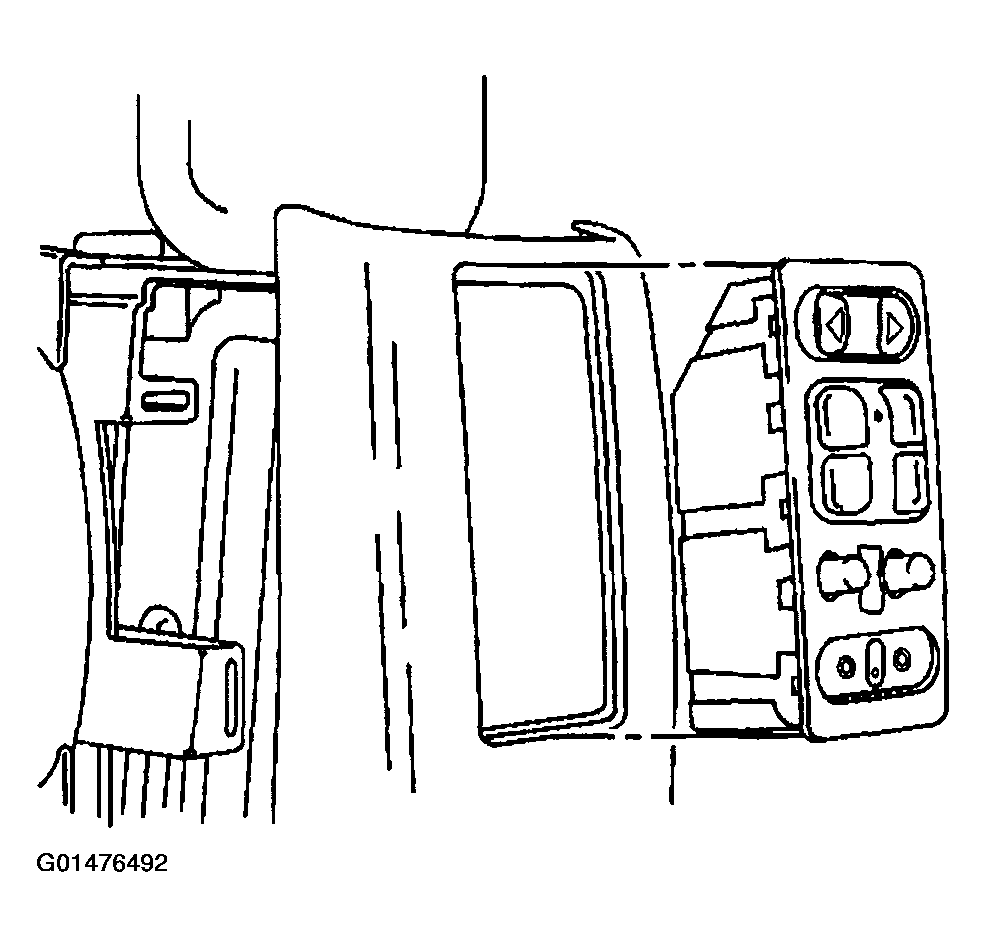

    Fig 2: Removing Console Wiring Harness Connector From Rear Seat Audio Control Panel
    G01476492Courtesy of GENERAL MOTORS CORP.
