Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Disconnect the negative battery cable.
  2. Use a flat-bladed tool in order to pry the switch away from the instrument panel.
  3. Disconnect the electrical connectors as necessary.

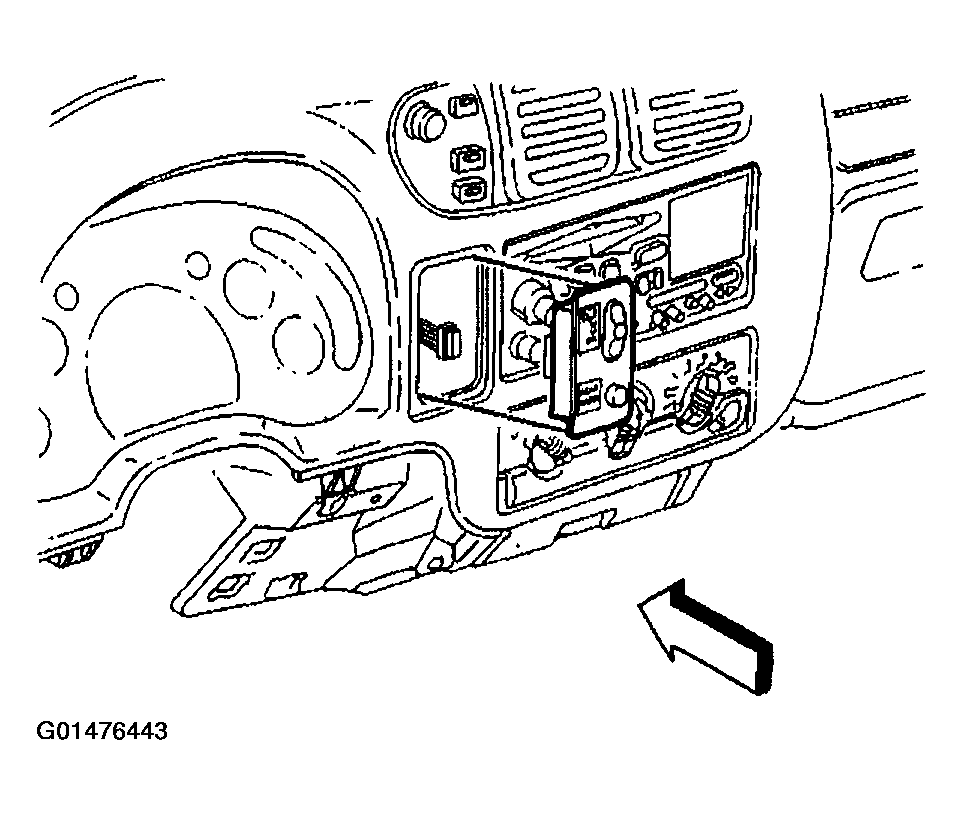

    Fig 1: Removing Switch From Instrument Panel
    G01476443Courtesy of GENERAL MOTORS CORP.
