Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Install the wiper arm park ramp under the wiper arm and onto the vehicle with two screws.
Tighten

Tighten two screws to 9 N.m (80 lb in).
Install the interior trim panel. Refer to TRIM PANEL REPLACEMENT -- END GATE or TRIM PANEL REPLACEMENT -- LIFT GATE in Body Rear End.

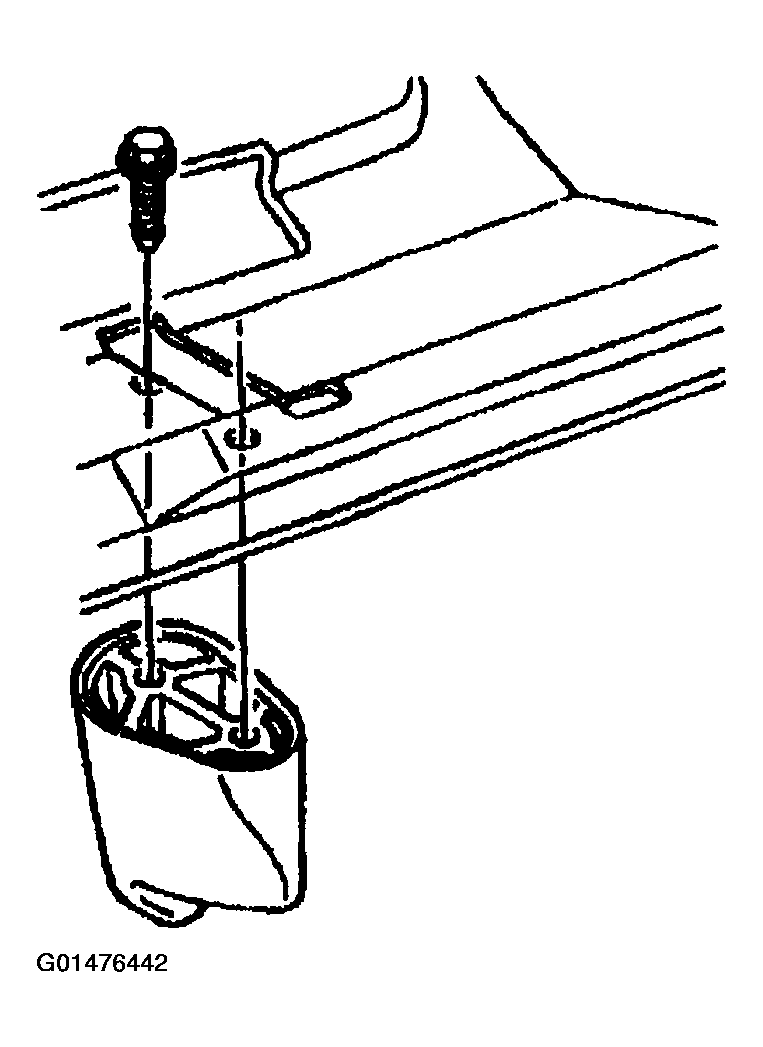

Fig 1: Installing Wiper Arm Park Ramp Under Wiper Arm & Onto Vehicle With Two Screws
Courtesy of GENERAL MOTORS CORP.
