Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper arm from the shaft. Refer to WIPER ARM REPLACEMENT  .
  2. Remove the nut and the spacer from the shaft.
    Fig 1: Removing Nut & Spacer From Shaft
    G01476437Courtesy of GENERAL MOTORS CORP.
  3. Remove the interior trim panel. Refer to TRIM PANEL REPLACEMENT -- END GATE or TRIM PANEL REPLACEMENT -- LIFT GATE in Body Rear End.
  4. Disconnect the electrical connector from the controller.
  5. Remove two screws and the wiper motor from the vehicle.

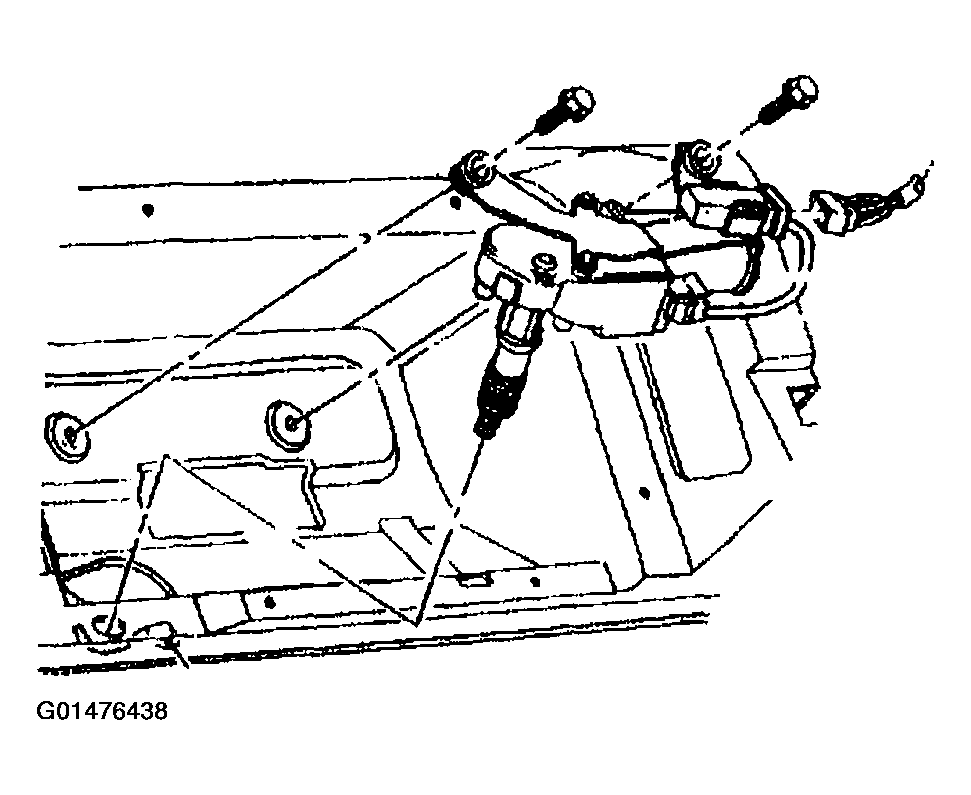

    Fig 2: Removing Two Screws & Wiper Motor From Vehicle
    G01476438Courtesy of GENERAL MOTORS CORP.
