Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the wiper motor onto the vehicle with two screws while keeping the shaft centered in the tailgate hole.

    Tighten

    Tighten two screws to 6.5 N.m (57 lb in).

  2. Connect the electrical connector to the controller.
  3. Install the interior trim panel. Refer to the TRIM PANEL REPLACEMENT -- END GATE or TRIM PANEL REPLACEMENT -- LIFT GATE in Body Rear End.

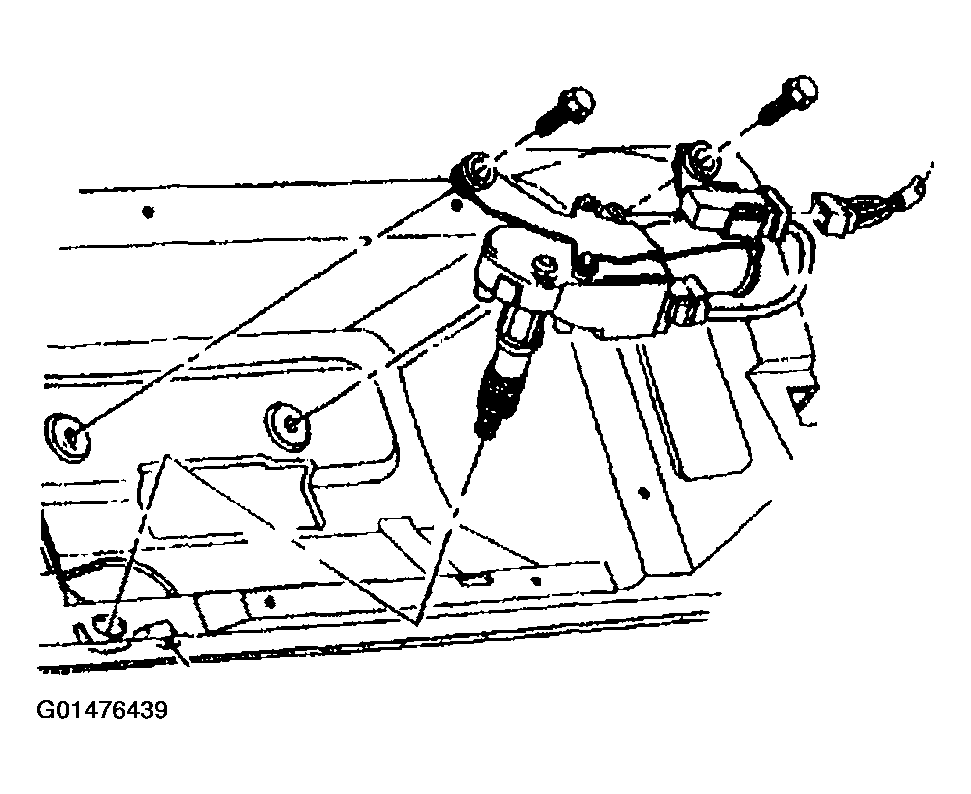

    Fig 1: Installing Wiper Motor Onto Vehicle With Two Screws
    G01476439Courtesy of GENERAL MOTORS CORP.
  4. Install the spacer and the nut onto the vehicle.

    Tighten

    Tighten the nut to 8 N.m (70 lb in).

  5. Install the wiper arm to the vehicle. Refer to WIPER ARM REPLACEMENT  .
    Fig 2: Installing Spacer & Nut Onto Vehicle
    G01476440Courtesy of GENERAL MOTORS CORP.
