Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Put the wiper arm in the park position.
  2. Remove the washer hose from the vehicle connector.
  3. Remove the cap from the wiper arm.
  4. Remove the nut from the wiper arm.
  5. Remove the wiper arm from the wiper motor shaft.

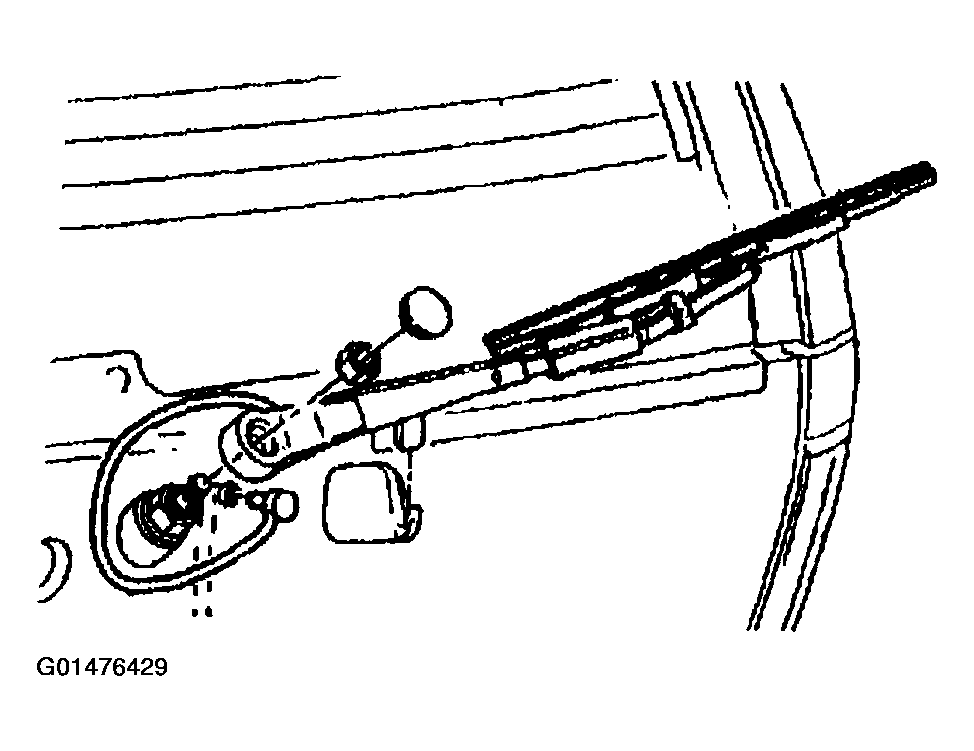

    Fig 1: Removing Nut From Wiper Arm
    G01476429Courtesy of GENERAL MOTORS CORP.
